1. Summary of components
1-20
Festo P .BE-MPA-EN en 1108e
The sub-bases with integrated pressure zone separation are
marked with a notch. By means of the marking you can
ascertain with which sub-base variant your valve terminal is
equipped (see Tab. 1/7).
Sub-base design
MPA1 MPA2
Sub-base with separate supply
channel (1)
Type: VMPA1-FB-AP-4-1-T1
Type: VMPA2-FB-AP-2-2-T0
Sub-base with separate supply
channel (1) and separate exhaust
channels (3) and (5).
Type: VMPA1-FB-AP-4-1-S1 Type: VMPA2-FB-AP-2-2-S0

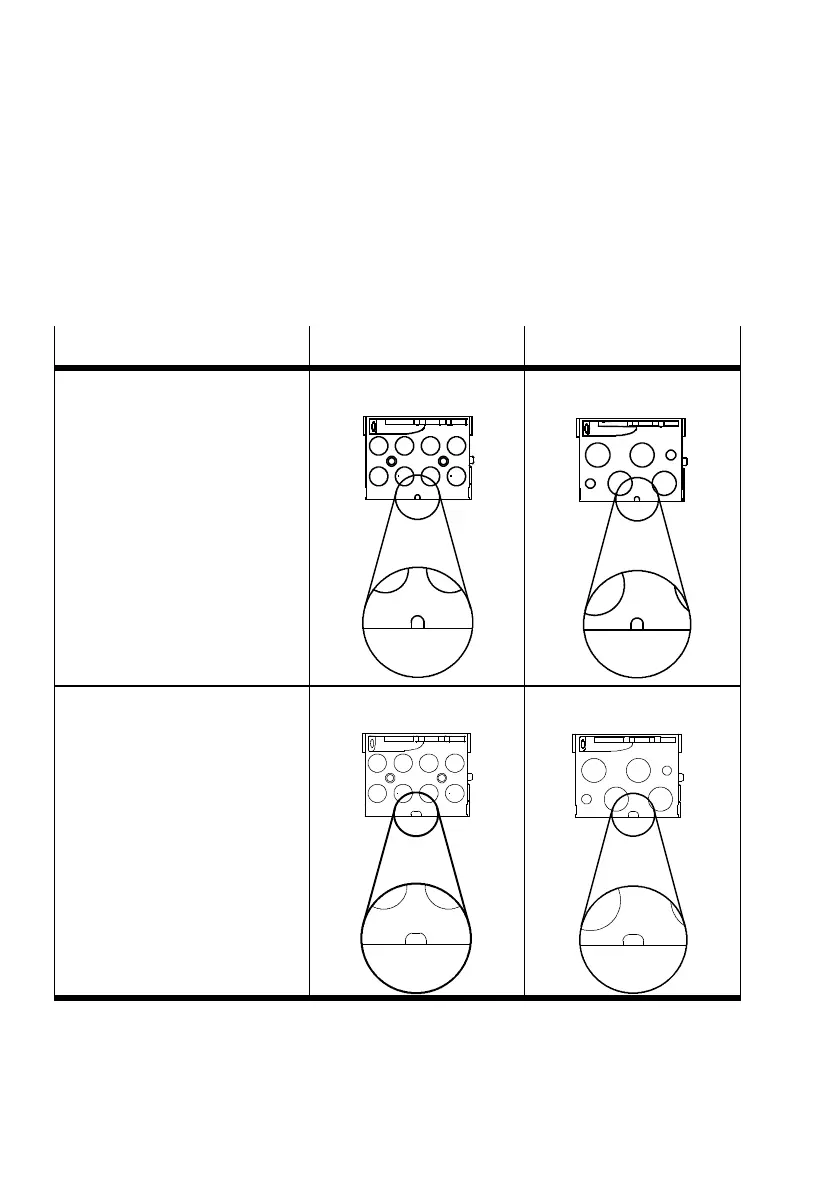

Tab. 1/7: Variants of the sub-bases with pressure zone separation
