1. Summary of components
1-22
Festo P .BE-MPA-EN en 1108e
1
235
6
7
8
4
9
aJ
MPA-S valve termin al with ...

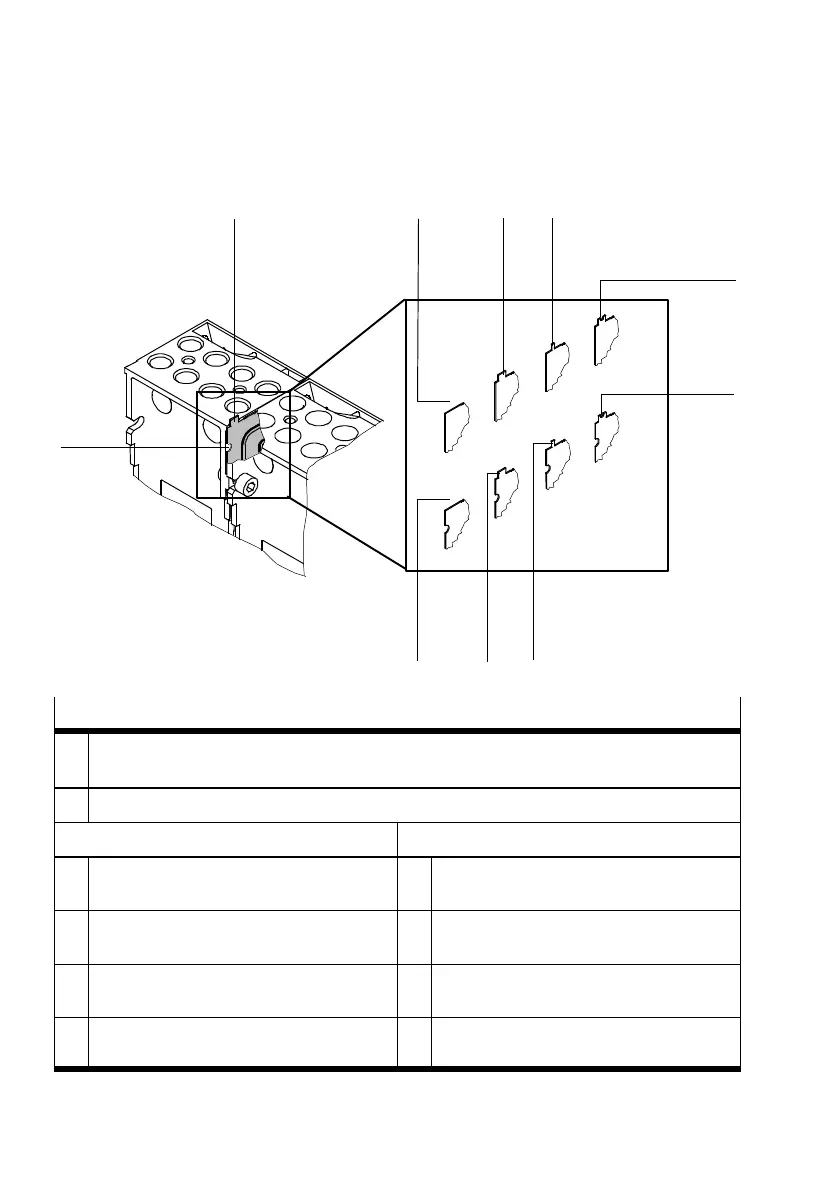

1 Additional identification of the seals/separating seals for the MPA-S valve terminal with exhaust
plates
2 Position of the marking for separating seals
... Flat plate silencer ... Exhaust plate
3 Without marking Seal with open channels
(1), (3) and (5)
7 Separating seal, channels (3) and ( 5)
blocked (Ident. code R)
4 Separating seal, channels (1), (3) and (5)
blocked (Ident. code S)
8 Separating seal, channel (1) blocked
(Ident. code I)
5 Separating seal, channel (1) blocked
(Ident. code I)
9 Separating seal, channels (1), (3) and (5)
blocked (Ident. code S)
6 Separating seal, channels (3) and (5)
blocked (Ident. code R)
aJ Without marking Seal with
open channels (1), (3) and (5)
Tab. 1/8: Marking of the seal variants for the sub-bases
