2. Fitting
2-12
Festo P .BE-MPA-EN en 1108e
Variant Fastening points
1
MPA-S valve terminal with multi-pin plug connection
Additional fastening points:
– For each mounting bracket on
the pneumatic supply plate
(see also
instructions in
Appendix A, Ta b. A/2) :
one M6 screw 1
1
MPA-S valve terminal with CPX terminal
Additional fastening points:
– For each mounting bracket on
the pneumatic supply plate or
proportional-pressure
regulator (see also
instructions in Appe ndix A,
Tab. A /2 ):
one M6 screw 1
Note
With four or more CPX
interlinking blocks, the
mounting clip type CPXBG-RW-...
must be used as an additional
fastener (see system description
for the CPX t erminal).

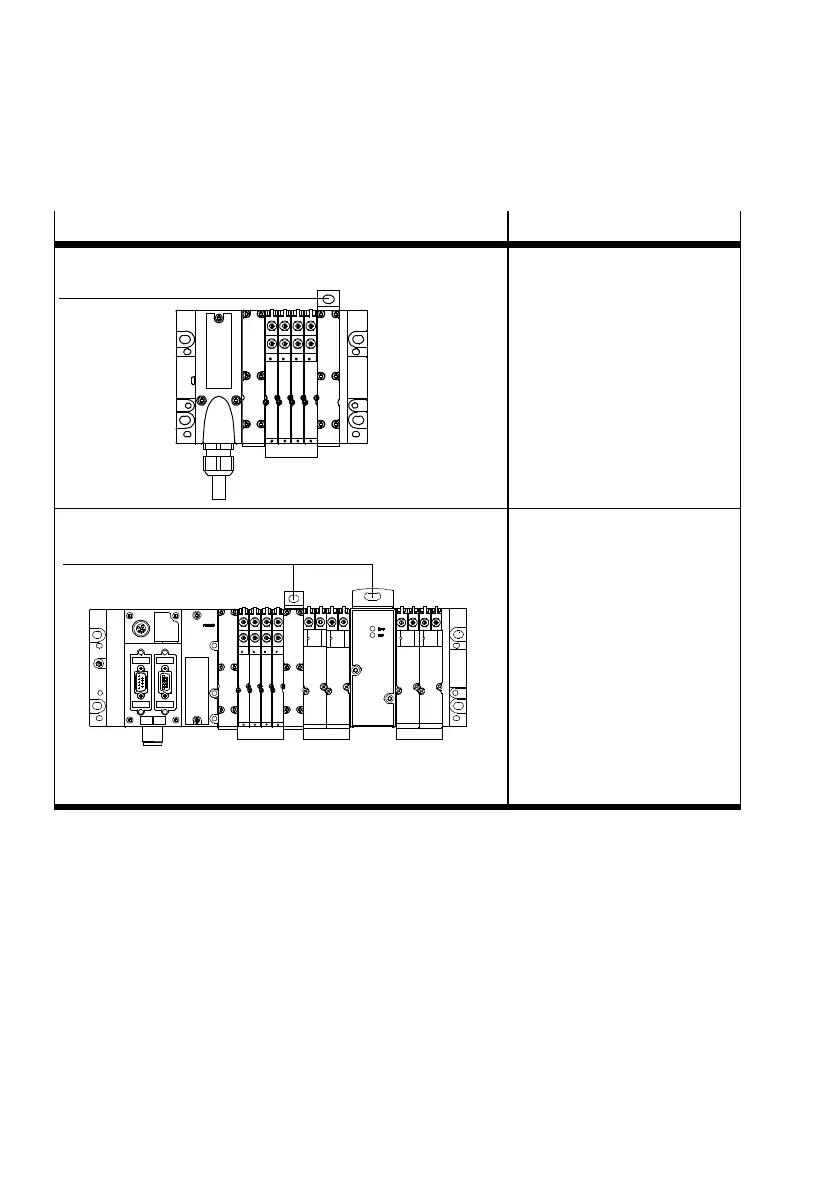

Tab. 2/4: Additional fastening points of the MPA-S valve terminal
