3. Installation
3-15
Festo P.BE-MPA-EN en 1108e
Setting the pressure regulating v alv e via the adjusting
screw in the adjusting knob (MPA2)
Note
If the space around the adjusting knob is not sufficient for
setting the pressure regulating valve (size MPA2), use the
socket head screw in the adjusting knob.
Proceed as follow s:
• Turn the adjusting screw 1 (for position see Fig. 3/9) to
set the desired controlled variable (see “Flow diagrams of
the pressure regulator valve plates” in Appendix A).
1 Adjusting screw,
Socket head
(SW 2,0)
1

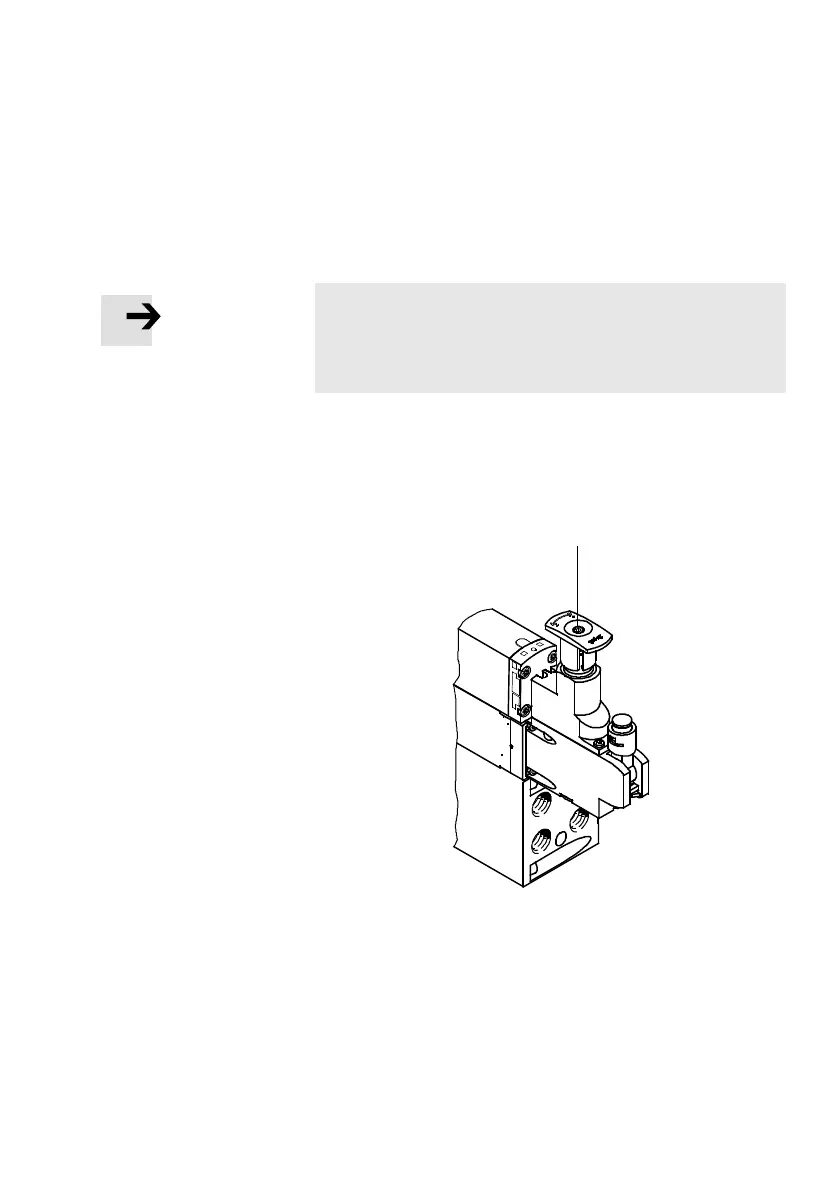

Fig. 3/9: Setting the pressure regulator plates (size MPA2) with the adjusting screw 1
