3. Installation
3-27
Festo P.BE-MPA-EN en 1108e

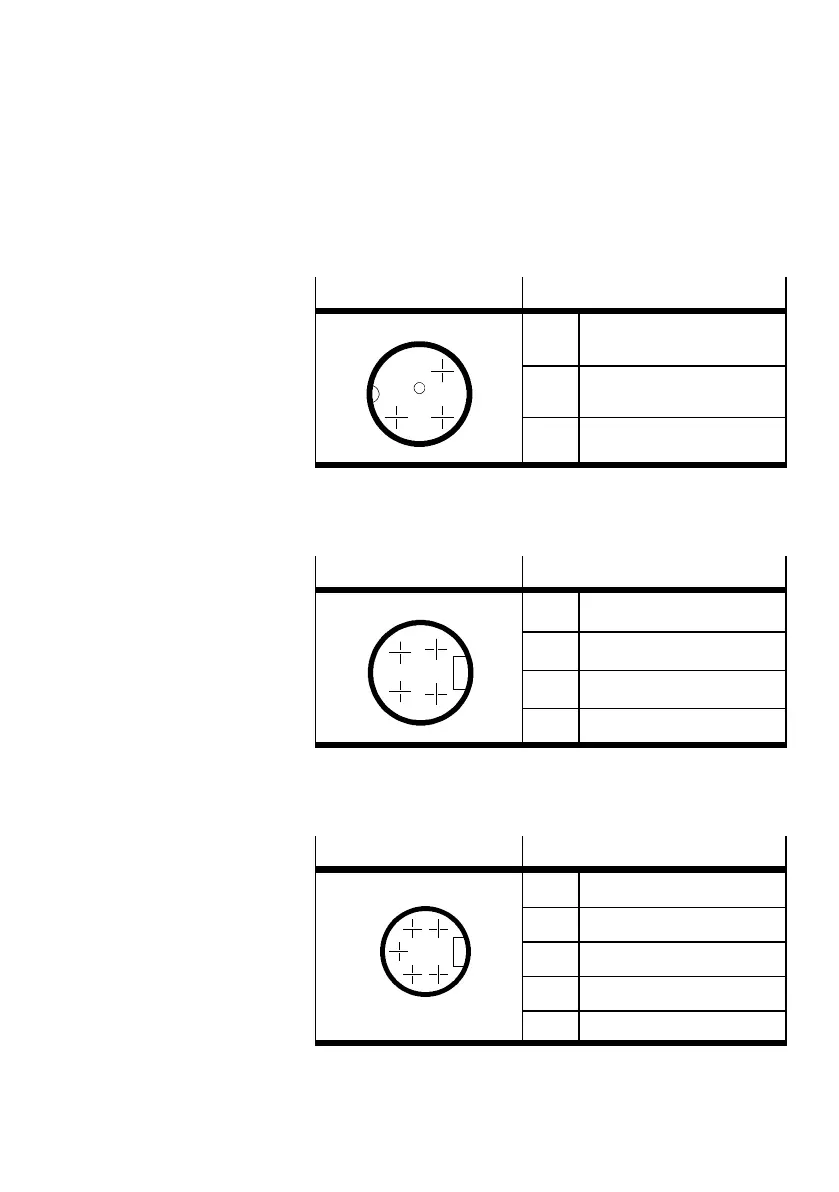

Connect the relevant electric supply plate as described in the
following table.
Plug M18
Pin allocation
2
3
4
Pin 2 24 V DC valves
Pin 3 0VDCvalves
Pin 4 FE
Tab. 3/5: Pin assignment of the electric supply plate
type VMPA-FB-SP-V
7/8” plug, (4-pin)
Pin allocation
A
B
D
C
Pin A n.c.
Pin B 24 V DC valves
Pin C FE
Pin D 0VDCvalves
Tab. 3/6: Pin assignment of the electric supply plate
type VMPA-FB-SP-7/8-V-4POL
7/8” plug, (5-pin)
Pin allocation
54
3
2
1
Pin 1 0 V DC v alves (incoming)
Pin 2 n.c.
Pin 3 F E (leading)
Pin 4 n.c.
Pin 5 24 V DC valves
Tab. 3/7: Pin assignment of the electric supply plate
type VMPA-FB-SP-7/8-V-5POL
