Select the desired speed before starting the gluing process
as you will always need both hands on the workpiece when
gluing.

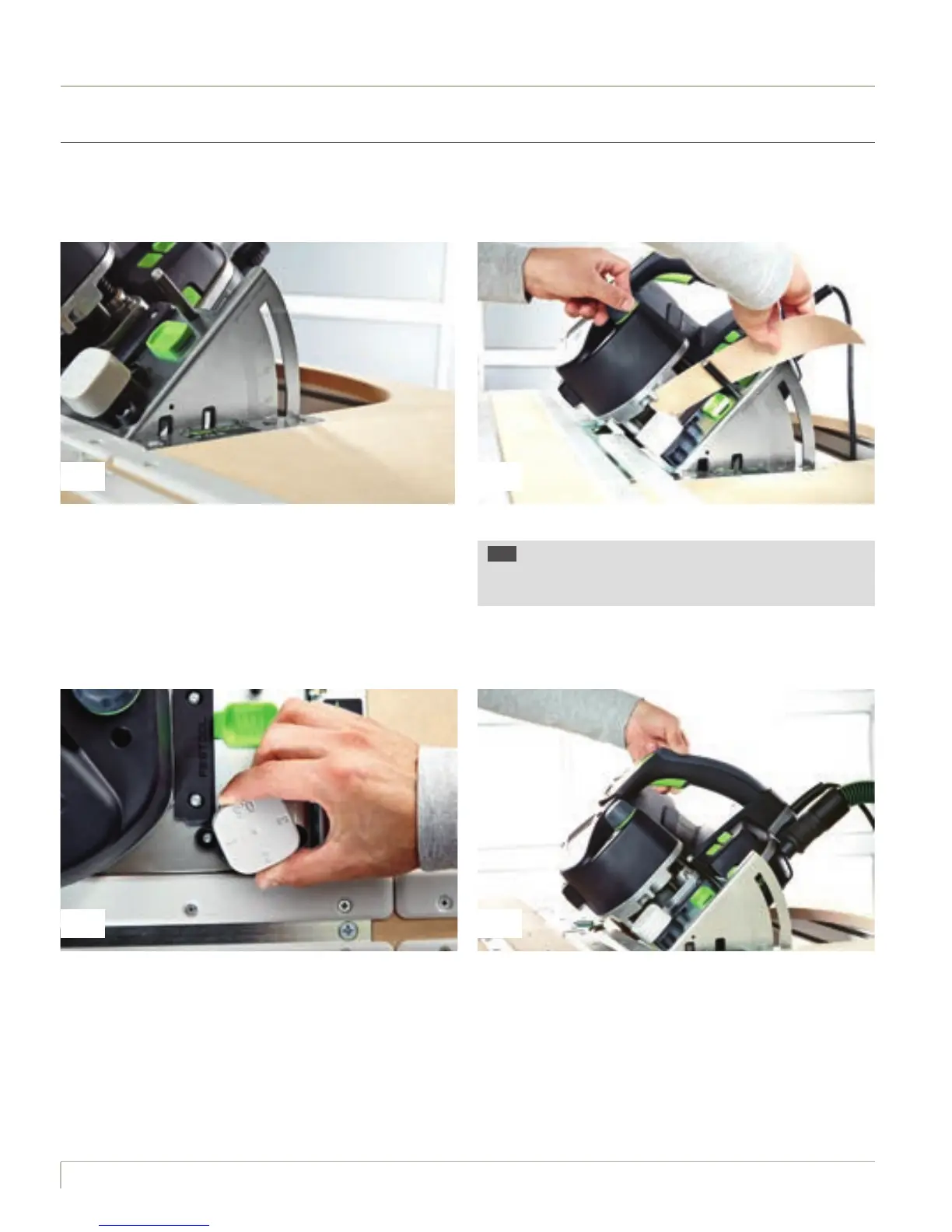

Simply tilt the CONTURO in the stationary unit to affix edging to a mitred edge. The scale indicates the angle
in degrees.
Stationary attachment of edging to mitred workpieces
Loosen both clamping screws on the angle scale, set the
desired angle and tighten the clamping screws again.
Use the guide rail adapter to ensure the workpiece is guided
parallel and prevent the edging from running off course. Adjust
the guide rail adapter to the thickness of the edging you are
using. Available thickness settings are 0.5, 1, 2 and 3 mm.
Adjust the edging height in the usual way.
TIP Edging for mitred edges requires a slightly larger over-
hang. For example, edging 35 mm high is used on a 19 mm
panel with a 45° edge.
