6.3.5 Emergency button
The machine is equipped with an emer-
gency button, aimed at the protection
of the operator in case of sudden criti-
cal conditions (see fig. 6.3.4-90). A press of
the button switches off the power to the
Main card and the machine stops imme-
diately.
6.3.6 Traction Pedal
The traction pedal have an internal mi-
croswitch that closes when the pedal is
pressed and a potentiometer to adjust
the intensity of the traction speed (see fig.
6.3.7-91).
6.3.7 Electrobrake
The machine is equipped with electro-
brake (see fig. 6.3.7-92). The electro-brake is
engageable through an appropriate con-
trol lever positioned on the electro-brake
itself, close to the traction motor. look-
ing at a global security condition, even
if the machine is switched off and the
electrobrake is disengaged, the electro-
brake blocks however, in case of exceed-
ing a certain speed (when pushing the
machine or if the machine is on an in-
clined floor). If the machine is switched
on, the drive is inhibited if the electro-
brake is disengaged.

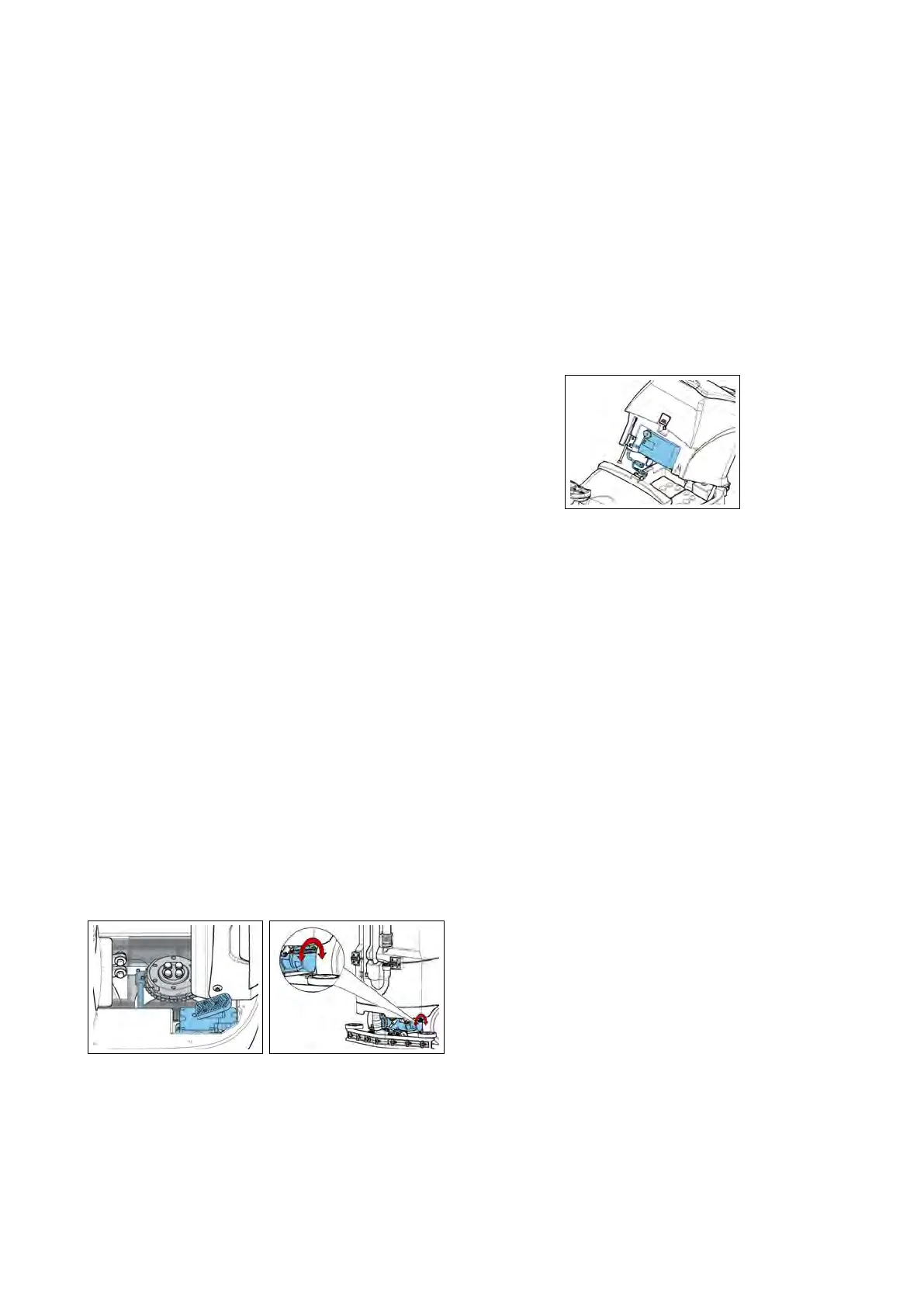

6.3.7-91 6.3.7-92
6.3.8 Batteries and battery
charger
The machine is available with the op-
tional battery charger (see fig. 6.4.2-98). To
get access to the battery charger and the
battery compartment is enough to actu-
ate the recovery tank release hook, posi-
tioned behind the seat. On the batteries
there is a loop wire with 80 Ampere gen-
eral protection fuse.
6.3.8-93
