Finometer® Model-2 User’s Guide 35

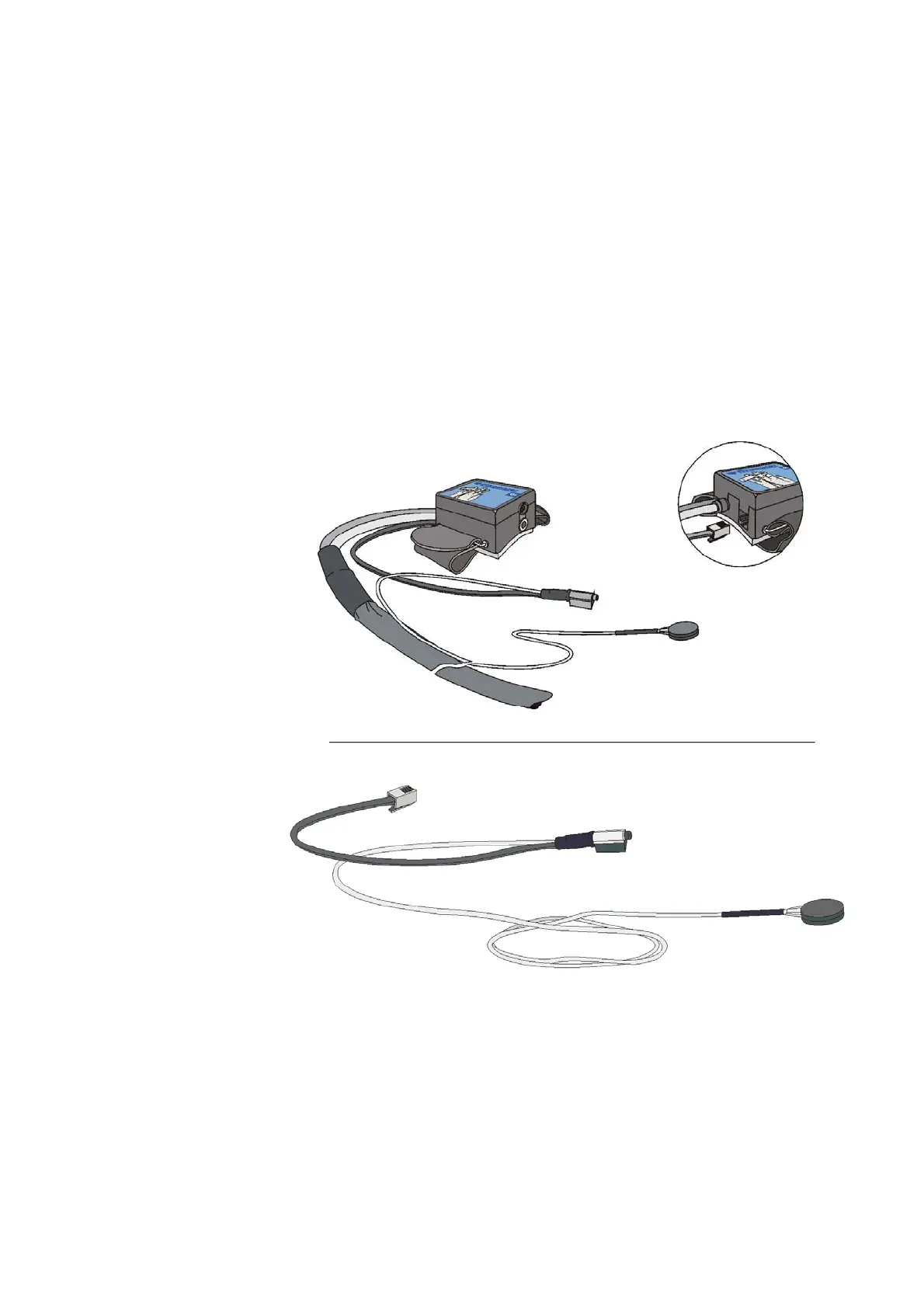

Figure 3.5 Finometer® Model-2 Frontend Unit (top) with rear mounted
telephone receptacle to receive the Height Correction Unit electrical
connector and, separately, the Height Correction Unit (bottom). The
pillbox is the reference sensor to be attached to the subject at heart
level.
