36 Finometer® Model-2 User’s Guide
3.5 The (optional) 3-lead ECG module
The ECG module is intended to provide an analog single channel ECG
signal. The analog ECG circuitry is contained in a small module to be
worn by the subject. The module has three built in leads with clip
endings. The unit is powered from the Finometer® Model-2 when it is
connected to the main unit via the USB-Lemo cable.
The ECG module conforms to the relevant standards and regulations.

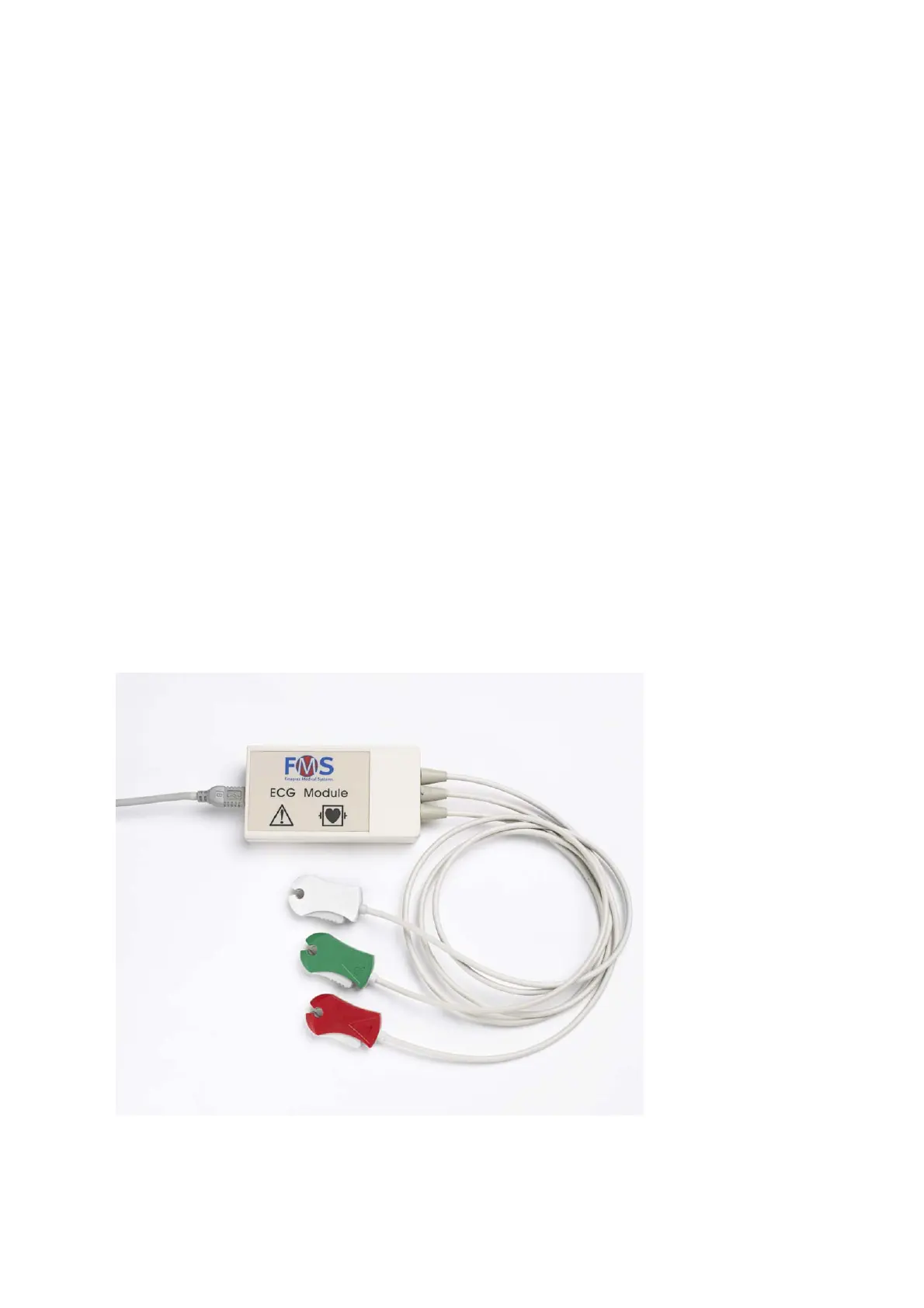

Figure 3.6 Finometer® Model-2 ECG module
