T 2 Analog input signals
Analog input signals
able 9.

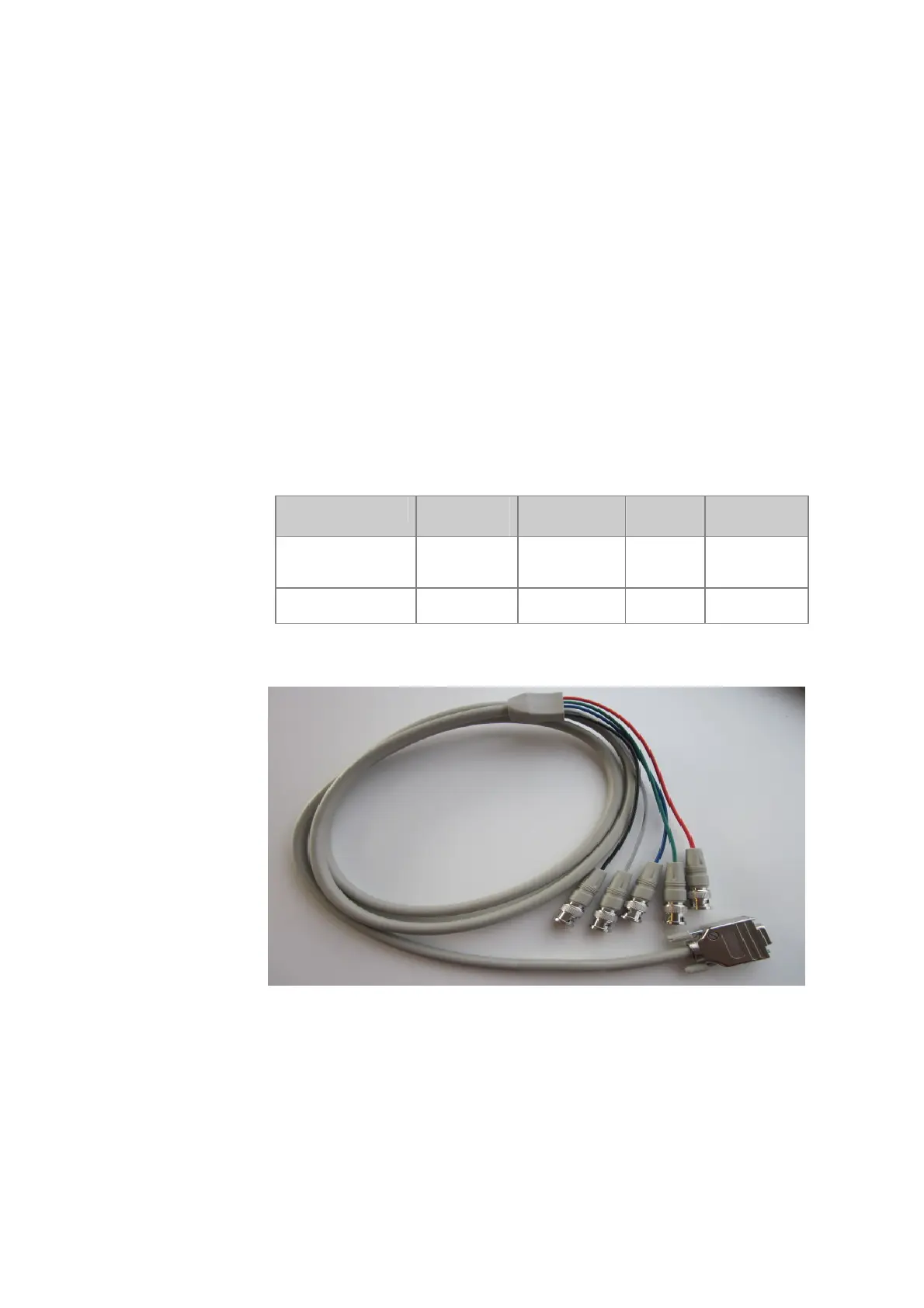

Figure 9.1 The analog input/output (I/O) cable
See section 9.3.3 for the color-coded input- and output channel
connections.
Label Update
frequency
Resolution Offset Voltage
range
Analog I/O cable
Input
200 Hz 2.5 mV <±5mV -5 to + 5 V
ECG-input 2.5 mV <±5mV -5 to + 5 V 200 Hz
