NFPA Standard-Specific Requirements Correlations
150 MS-9600 PN 51335:E 7/9/03
NFPA Signaling Systems for Central Station Service (Protected Premises Unit)/
Remote Station
The following figure illustrates an example of Central Station/Remote Station
Reporting using a 411UDAC. The relay contacts from the MS-9600 may be used to trip
any dialer UL listed for Central Station/Remote Station Services. The UDACT-F may
also be used. Refer to Figure C.2, “Central Station Service Using UDACT-F,” on page
151.
Notes:
1. Reference the 411UDAC Manual for additional information
2. Program the 411UDAC for slave operation
3. The MS-9600 must be programmed for AC Loss Reporting Delay This prevents
the transmission of a trouble on the loss of AC power
J4
J7
J3
J2
J8
J1
TB2
TB4
TB1
RELAY 1
NO NC C
BATTERY
GND
FAU LT
AC PWR
ALA RM
BATT FAULT
COMM. FAIL
SYS TRBL
SUPV.
RELAY 2
NO NC C
EARTH AC- NEU AC-H OT
NAC
B+ B-
ZONE 1
B+ B-
ZONE 4
B+ B-
ZONE 2
B+ B-
ZONE 3
B+ A+ A- B-
+12V PWR
+ -
K6
K5
PH1
PH2
TB3
NO
TB5
NO
NO
NC
NC
NC
C
C
C
TB3
JP3
JP5
JP6
JP8
J10
J11
REMOVE TO
DISABLE
LOCAL
CHARGER
CUT TO
MONITOR 4XTM
4XTM OPT BD
TB4
TB5
TB6 TB7
TB8

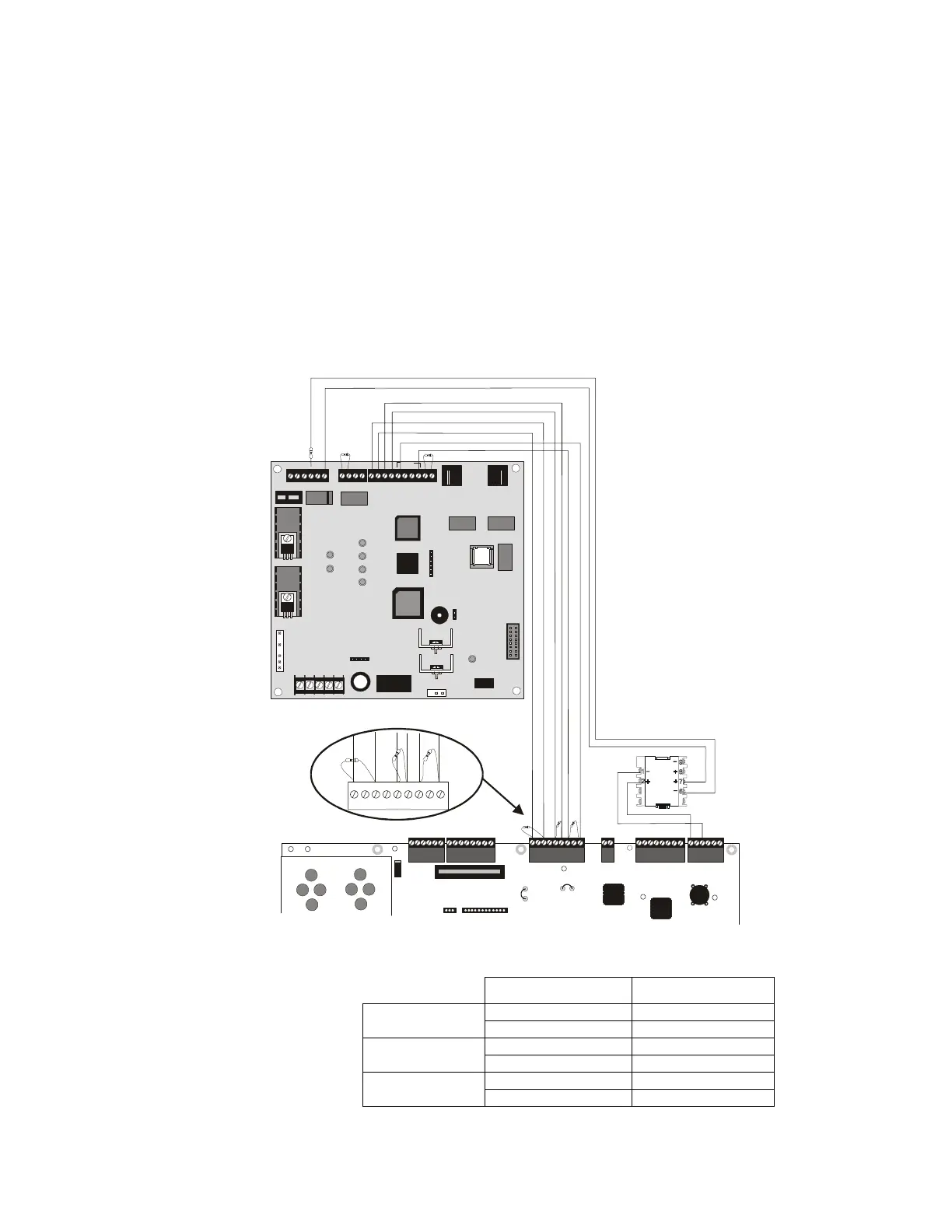

Figure C.1 Central Station Service Using 411UDAC
2.2K
EOL
AC wiring for 411UDAC/
FACP must be connected
to the same branch circuit.
MS-9600
411UDAC
Alarm Relay
Trouble Relay
Supv. Relay
Monitor Module EOL resistor
SLC Loop
Monitor Module
Monitor Module Circuit Input
411UDAC Relay 2 Output (DACT Trouble)
Channel 1/Zone 1
Channel 3/Zone 3
Channel 2/Zone 2
2.2K EOL
UL listed 2.2K EOLs (P/N 27070)
Program the 411UDAC as follows:
Channel 1 - Normally Open Contact
Device (alarm)
Channel 2 - Host Panel Trouble
Channel 3 - Supervisory
Note: The Monitor Module input, which is
being used to monitor the 411UDAC Relay
Output programmed for DACT Trouble
(requires optional 411RK Relay Kit), must
be programmed as ‘Trouble’ at the Fire-Lite
MS-9600. The 411UDAC must be
programmed as a Slave Communicator
(programming address 64 set to 2).
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9 10
411UDAC MS-9600
Alarm TB2-1 TB5-3
TB2-2 TB5-1
Trouble TB2-3 TB5-6
TB2-4 TB5-5
Supervisory TB2-5 TB5-9
TB2-8 TB5-7
Table C.1 411UDAC Connections to MS-9600
