Correlations NFPA Standard-Specific Requirements
MS-9600 PN 51335:E 7/9/03 151
The following figure illustrates an example of Central Station/Remote Station Reporting using a
UDACT-F (Universal Digital Alarm Communicator/Transmitter). The UDACT-F transmits system
status to UL listed Central Station receivers via the public switched telephone network. It may be
mounted inside the MS-9600 cabinet using the BRKT-9600 mounting bracket or remotely in a
UBS-1F or ABS-8RF enclosure.
Notes:
1. Ferrite cores (P/N FBD-1) are recommended for all applications. Install around wires inside
cabinets near terminal blocks.
2. Recommended wire is 12 AWG to 18 AWG (0.75 to 3.25 mm
2
) twisted, shielded pair.
3. If shielded wire is used, connect only one end of the shield.
4. Conduit is recommended for external wire runs (consult local building codes).
5. Connect ground wire from Earth Ground terminal on the UDACT-F to a solid building earth
ground. Conduit alone will not provide a reliable earth ground.
6. UDACT-F may be located up to 6,000 feet (1,800 m) away from the host control panel.
J10
J5
TB3
JP3
JP5
JP6
JP8
J10
J11
REMOVE TO
DISABLE
LOCAL
CHARGER
CUT TO
MONITOR 4XTM
4XTM OPT BD
TB4
TB5
TB6
TB7
TB8
LARM TRBL SUPV
T
X
R
C
V
D
T
R
G
N
D
I
N
+
O
U
T
+
I
N
–
O
U
T
–
shield
+ –
+24V
GND
RS+
RS–
SHIELD
RS+
RS–
1
2
3
4
5
6
7

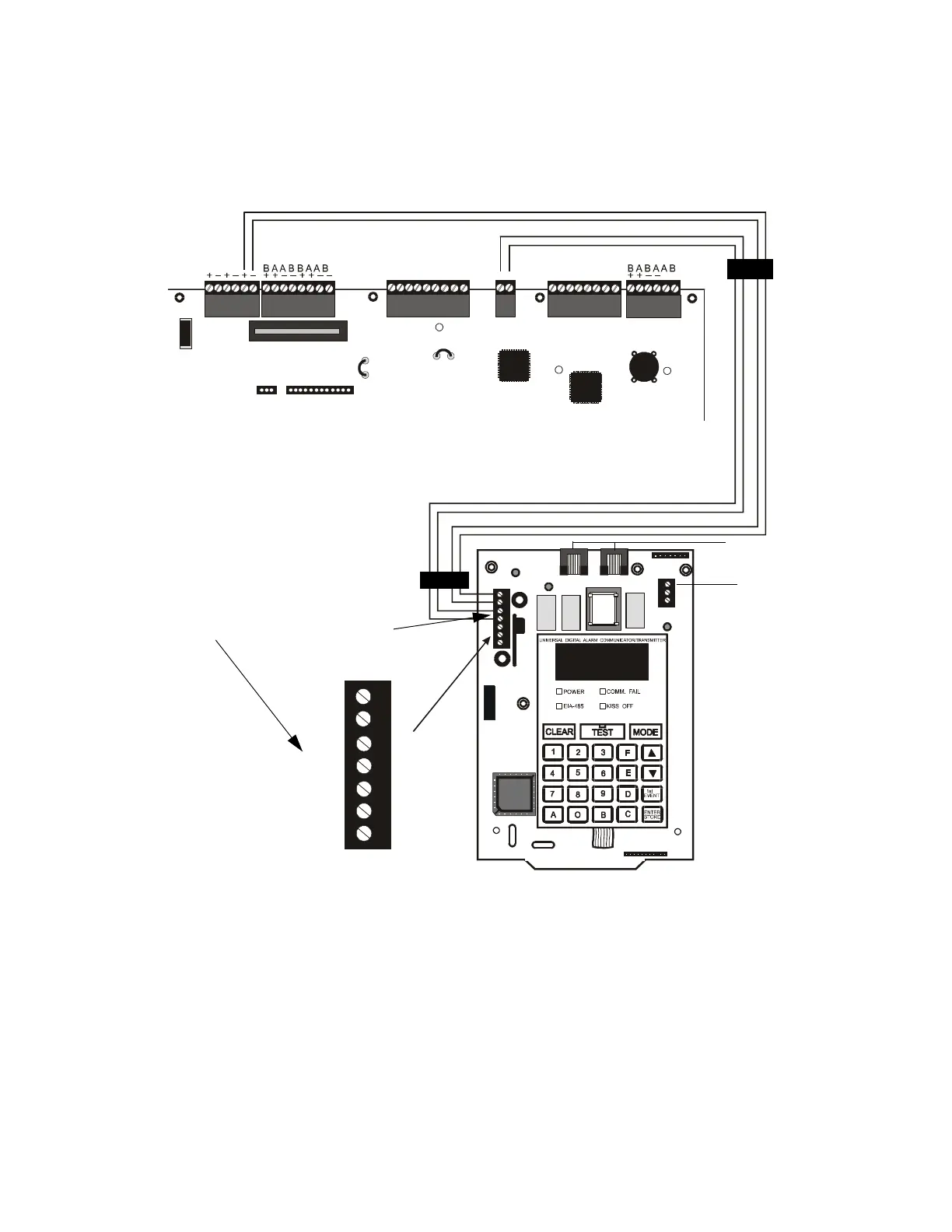

Figure C.2 Central Station Service Using UDACT-F
+24 VDC Nonresettable Power (TB3) Supervised and Power-limited
ACS EIA-485 (TB6) Supervised and Power-limited
MS-9600 Main Circuit Board
UDACT-F
Install 120Ω EOL resistor (P/N
71244) on TB1 Terminals 3 & 4, if
last or only device on EIA-485 line.
Solid Earth
Ground
Connection
Phone Lines
(supervised)
Ferrite
Core
Ferrite Core
