NFPA Standard-Specific Requirements Correlations
154 MS-9600 PN 51335:E 7/9/03
NFPA 72 Remote Station Protective Signaling System
Notes:
1. Cut Jumper JP6 on the MS-9600 main circuit board to supervise placement of the 4XTMF
module.
2. Refer to "4XTMF Transmitter Module Installation" on page 36 for detailed information.
Fire•Lite RS82 Remote Station Receiver UL listed.
Refer to Fire•Lite Alarms, Inc., Instruction Manual for
Remote Station Receiver Model RS82.
+ -
Polarity Shown is
Normal Standby
4XTMF Transmitter Module
Cutting TBL Jumper allows the
reverse polarity circuit to open
with a system trouble condition
if no alarm condition exists.
Power-limited

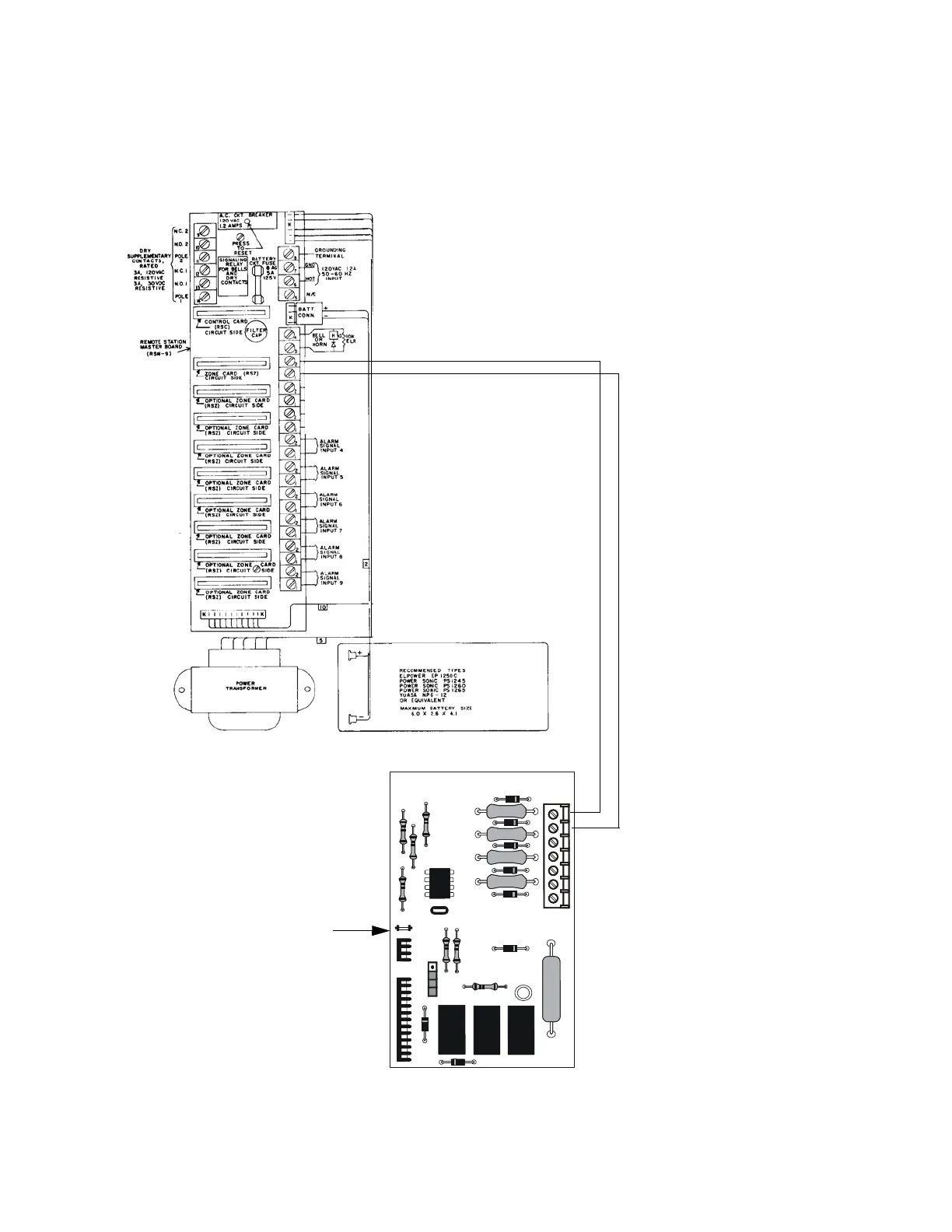

Figure C.5 Remote Station Connection Using 4XTMF Module
+
-
(Dummy load with a 4.7K
Ω
, ¼ watt
resistor when no connection is made)
