Correlations NFPA Standard-Specific Requirements
MS-9600 PN 51335:E 7/9/03 155
NFPA 72 Proprietary Protective Signaling Systems

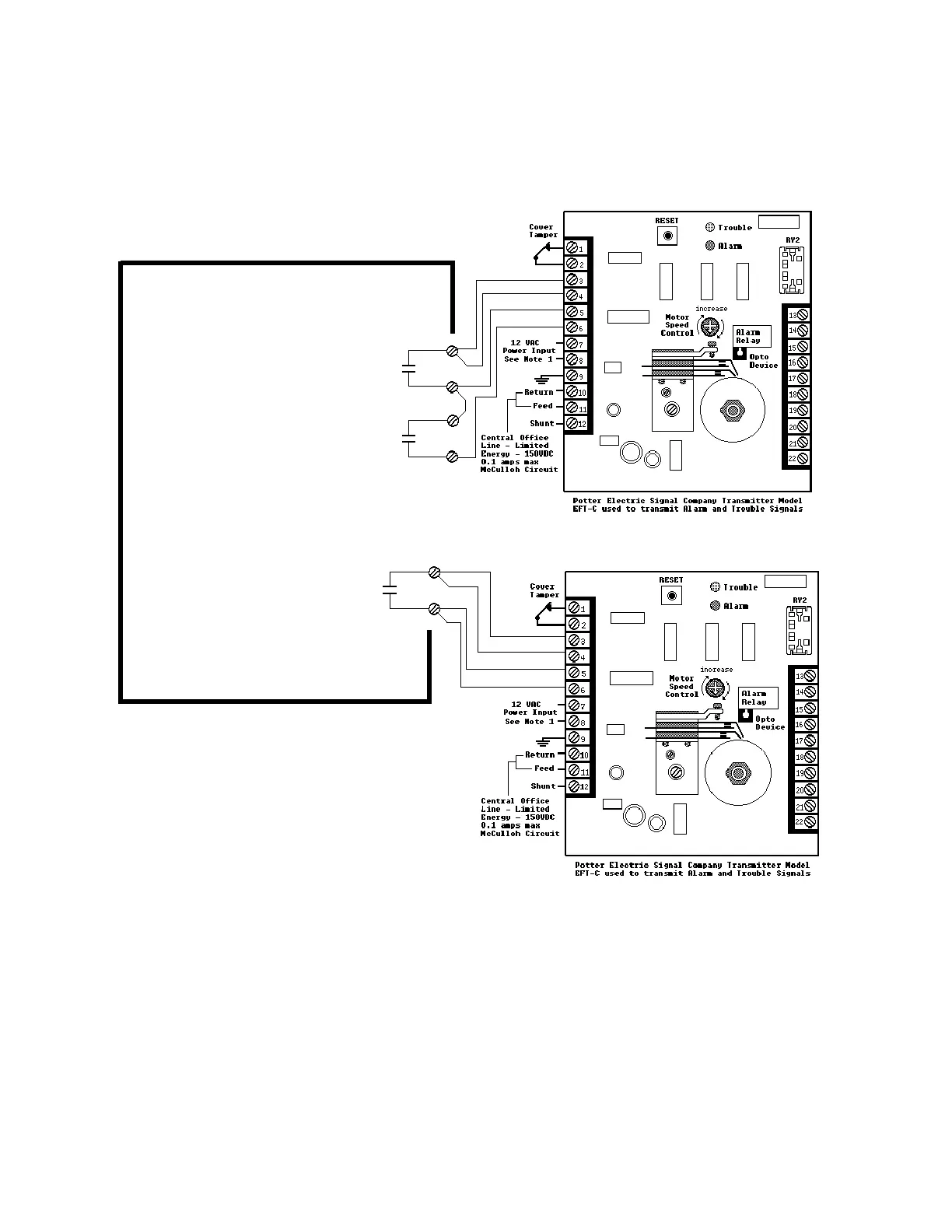

Figure C.6 Proprietary Protective Signaling System
Form-C relay contact programmed to
activate on Supervisory condition.
Form-C Trouble contact which will
automatically activate on any Trouble
condition.
Form-C Alarm contact programmed to
activate on General Alarm.
MS-9600 Main Board
MS-9600 Addressable Fire Control Panel
Notes:
1. Connection between the MS-9600 and the
transmitter are supervised by the transmitter.
2. This MS-9600/Transmitter arrangement can
be employed for NFPA 72 Proprietary
Protective Signaling System.
