Fischer Panda 8000x - Air Filter Replacement

Maintenance Instructions
Seite/Page 106 - Kaptitel/Chapter 7: Maintenance Instructions 10.6.16

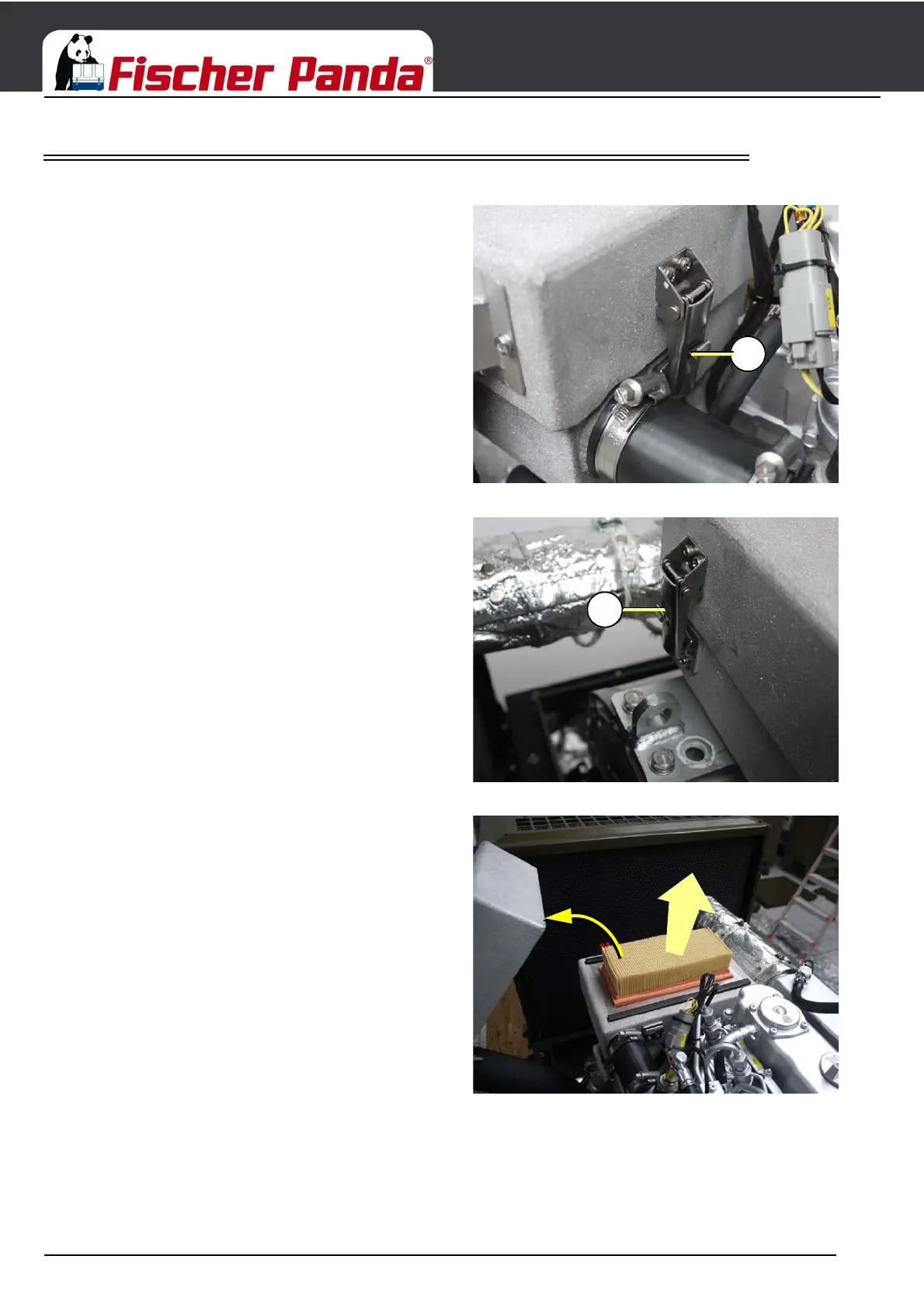

7.7 Replacing the air filter
Fig. 7.7-1: Replace air filter1. Open the closure on the right-hand side of the air intake
housing
01. Closure
Fig. 7.7-2: Replace air filter2. Open the closure on the left-hand side of the air intake
housing.
01. Closure
Fig. 7.7-3: Replace air filter3. Lift up the housing cover and pull it backwards.
4. Replace the air filter.
5. To reinstall, reverse the order of steps.
01
01
