Fischer Panda 8000x - Installation for Mounting the Radiator under the Vehicle

Installation Instructions
Seite/Page 68 - Kaptitel/Chapter 5: Installation Instructions 10.6.16
5.11.2 Installation for mounting the radiator under the vehicle

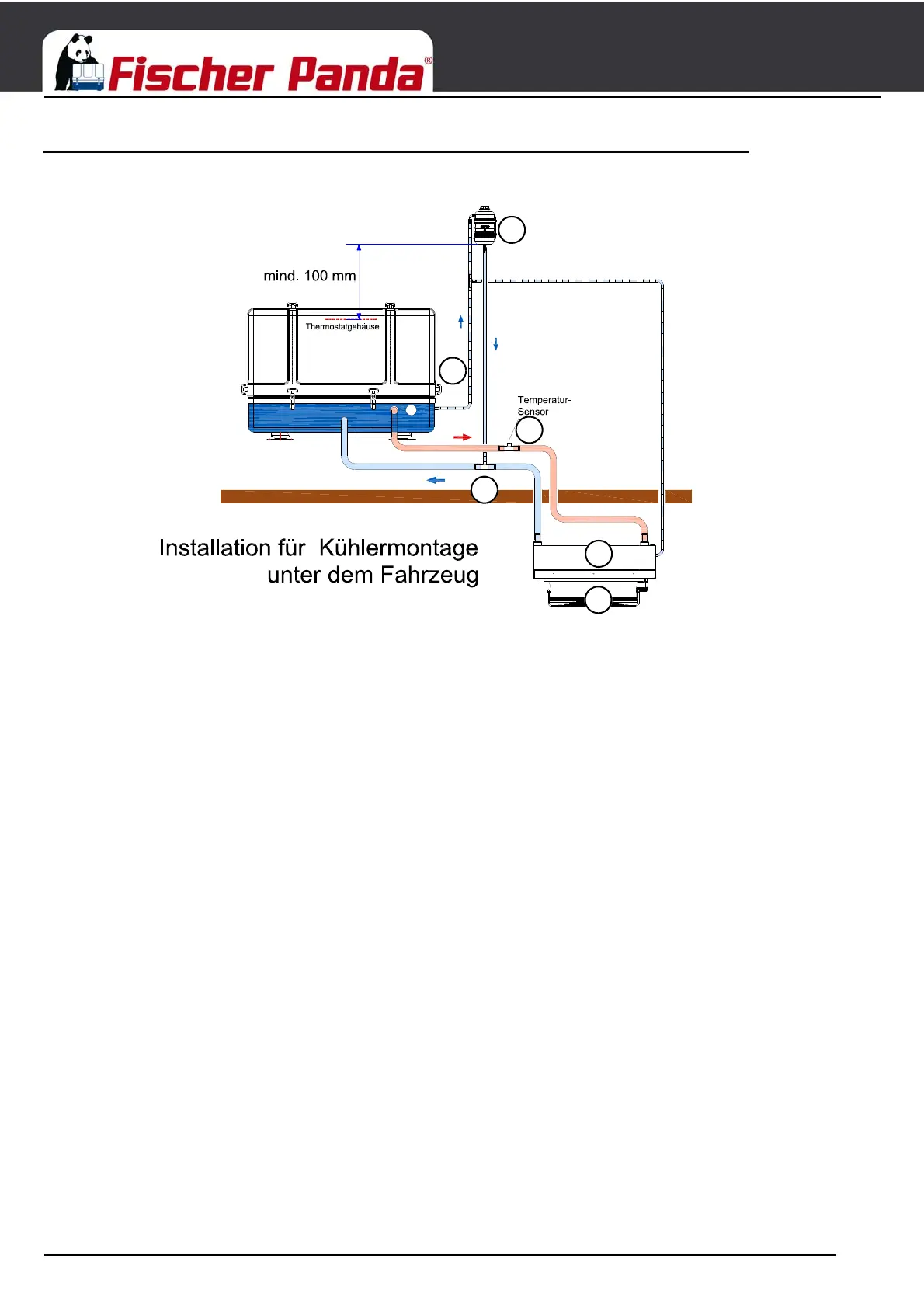

Fig. 5.11.2-1: Underfloor radiator - schematic
1
2
3
4
5
6
01. Ventilation line
02. Coolant expansion tank
03. T-fitting with connection for thermal switch
04. T-fitting
05. Radiator
06. Fan for radiator
