11. Panda xControl
The Panda xControl is a generator control system with three main components.
Components of the xControl
11.0.1 xControl – CP-G
(Control Panel – Generator)
Art.-No. 21.02.02.204P

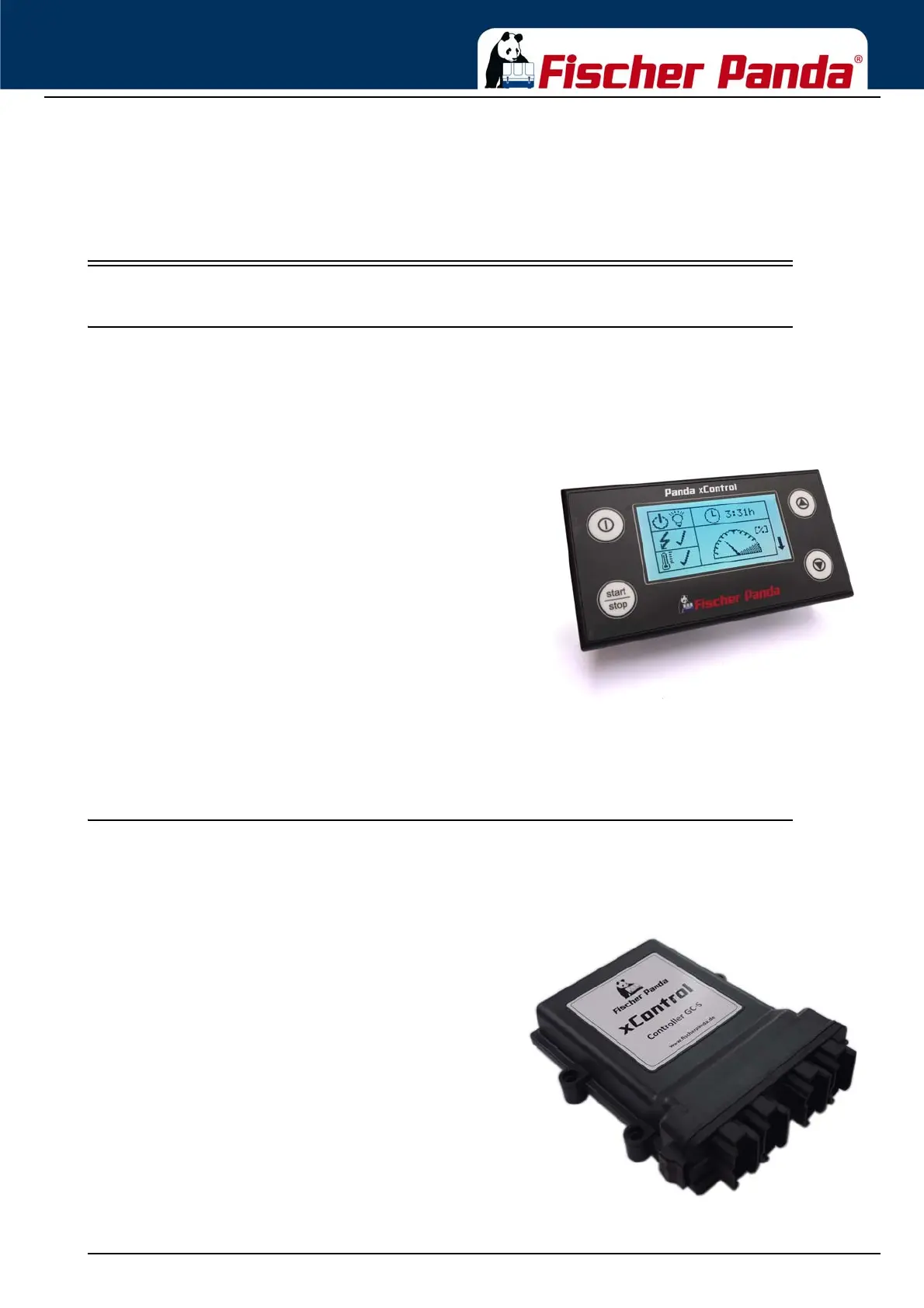

Fig. 11.0.1-1: Control Panel - GeneratorDisplay and Control unit element of the xControl Series.
The xControl CP-G is the display and operating element for the xControl System.
Power is supplied via the bus cable. Multiple remote control panels can be installed within the system.
11.0.2 xControl – GC-S
(Generator Control - Servo)
Art.No. 21.02.08.019P
Fig. 11.0.2-1: Generator Control - ServoMain module of the xControl series.
The module contains the entire control electronics.
The xControl GC-S is normally mounted inside of the
generator capsule.
The xControl GC-S takes over the control and monitoring of the diesel engine of a Fischer Panda generator as well
