Installation Instructions
10.6.16 Kapitel/Chapter 5: Installation Instructions - Seite/Page 79
5.16.2 Connection of the remote control panel - see separate control panel manual

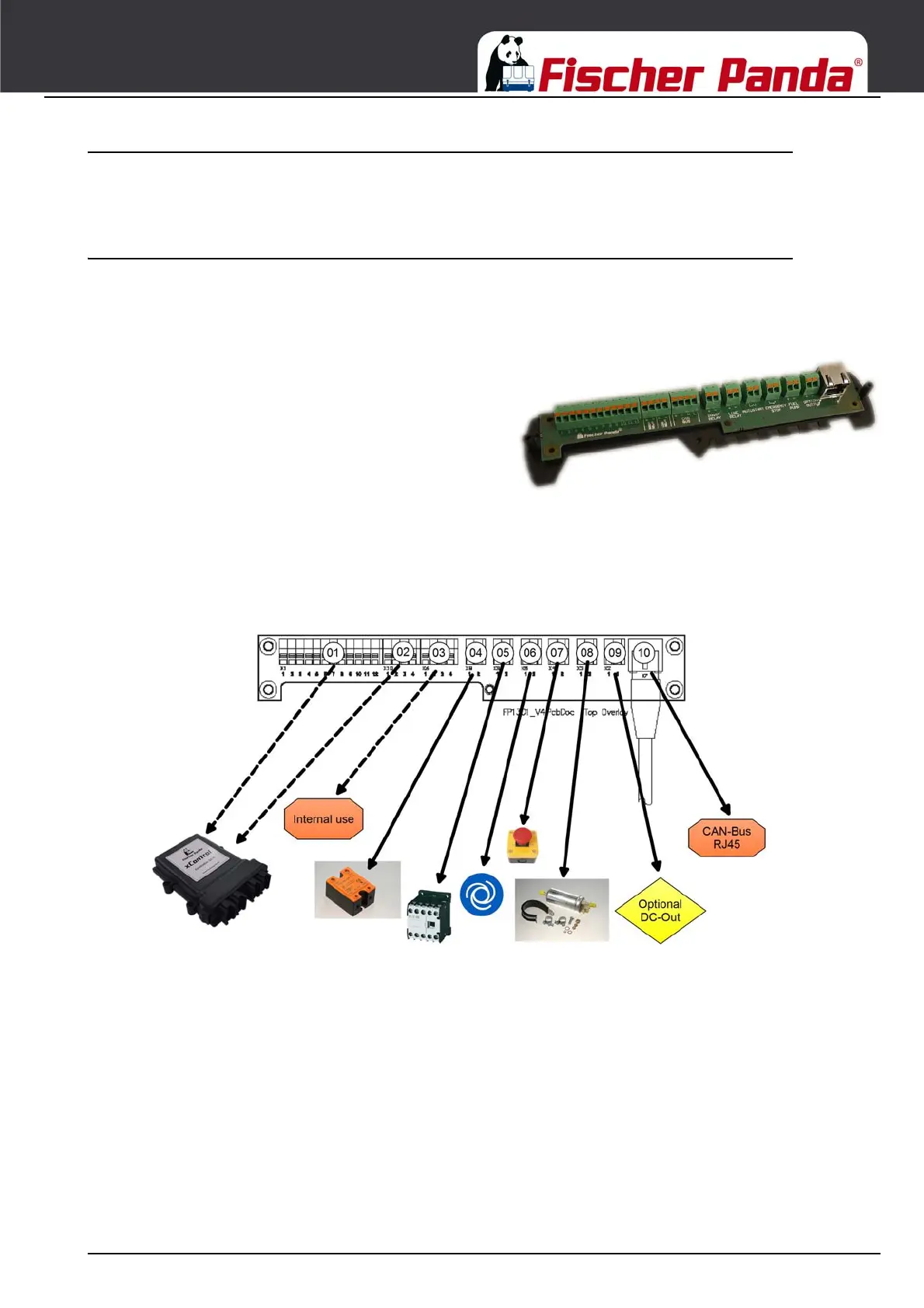

5.16.3 Connection Box – Generator xControl – CB-G
The xControl CB-G is the external interface of the gene-
rator equipped with a xControl System.
The panel and the fuel pump are connected at this inter-
face. It is optionally possible to connect emergency stop,
auto start, load contactor and boost..
Fig. 5.16.3-1: CP-G
5.16.3.1 xControl ECU
The xControl ECU is the main modul of the xControl.
installation and modifikation are only allowed by Fischer Panda or authorized service points.
01. Terminal xControl ECU
02. Terminal xControl ECU
03. FP CAN-Bus for internal use
04. Terminal boost relay
05. Terminal line relay
06. Terminal automatic start
07. Terminal emergency stop
08) Terminal Fuel pump
09. Terminal optinal DC-Out
10. Terminal FP CAN-Bus (external xControl components)
