Installation Instructions
10.6.16 Kapitel/Chapter 5: Installation Instructions - Seite/Page 69

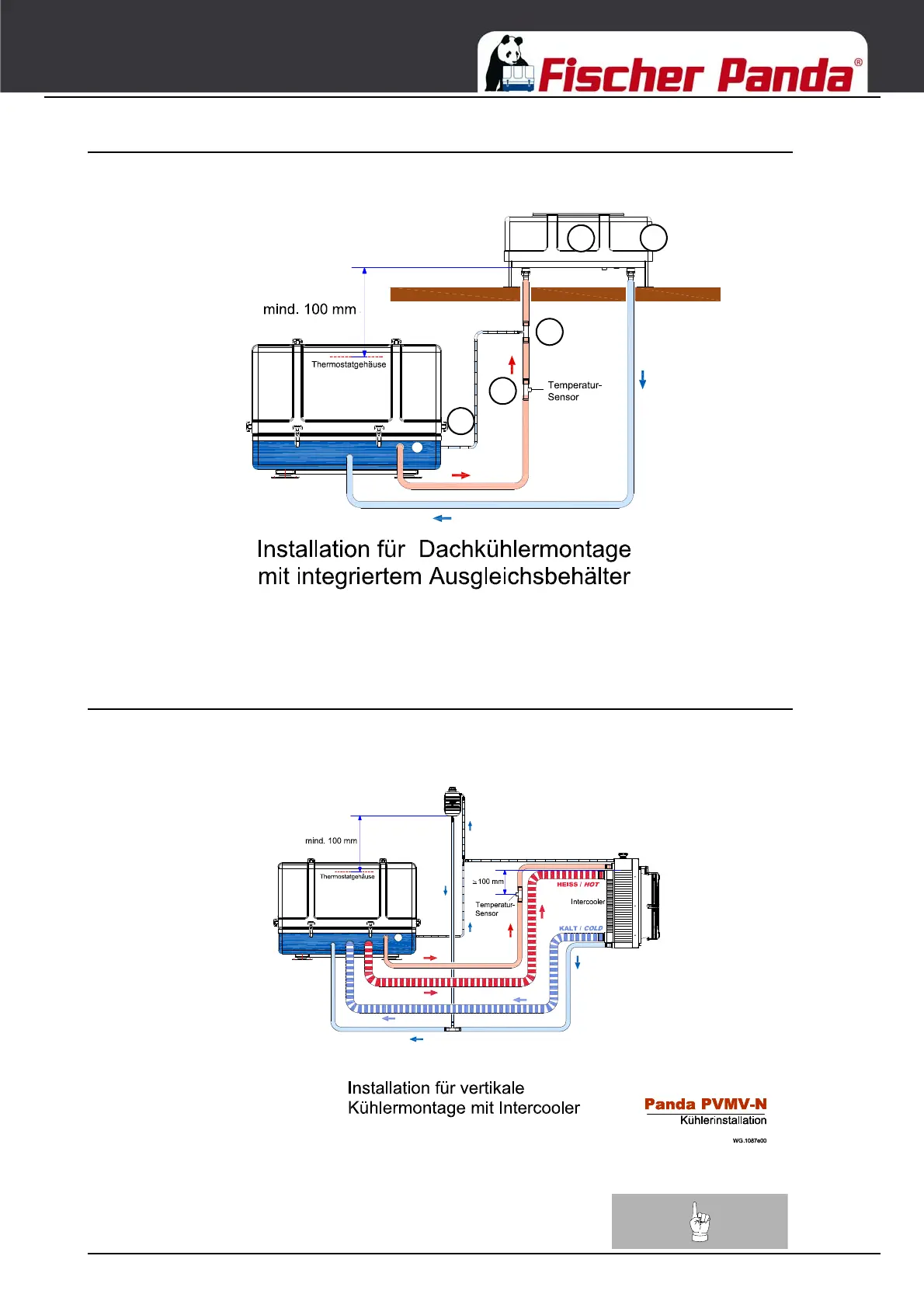

5.11.3 Installation schematic for roof mounted radiator with expansion tank
Fig. 5.11.3-1: Roof-mounted radiator - schematic
5.11.4 Installation Radiator with Intercooler -Schematic sample vertical Radiator
Fig. 5.11.4-1: Installation Radiator with Intercooler -Schematic sample vertical Radiator
Note:The installation sample must be adapted to the Radiator/
System.
1
2
3
4
5
1. Engine bleed line
2. Radiator (horizontal)
3. Coolant expansion tank (integrated)
4. T-fitting for bleed line
5. T-fitting with connection for thermal switch
