Installation Instructions
10.6.16 Kapitel/Chapter 5: Installation Instructions - Seite/Page 67
5.11 Installation schematics
Note:At generators with xControl, the ECU measures the
coolant temperature at the exhaust manifold. The
external temp switch sensor in the hydraulic lines is not
necessary at these generators.
5.11.1 Installation for vertical radiator installation

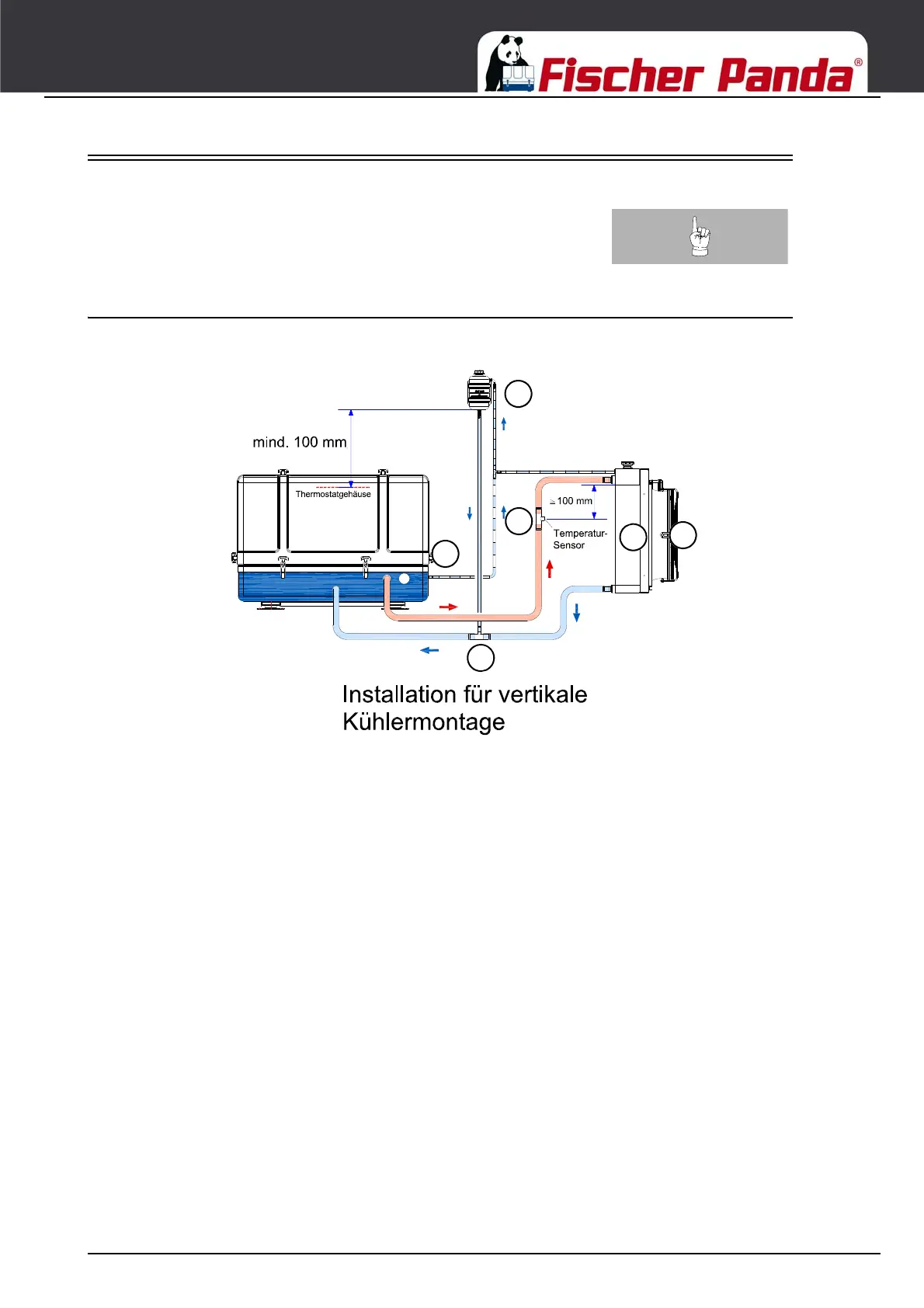

Fig. 5.11.1-1: Vertical radiator - schematic
1
2
3
4
5
6
01. Coolant expansion tank
02. Engine bleed line
03. Fan for radiator
04. Radiator
05. Thermal switch (on the hot side)
06. T-fitting
