Fischer Panda 8000x - Generator Description

The Panda Generator
Seite/Page 36 - Kaptitel/Chapter 4: The Panda Generator 10.6.16
4.2 Description of the Generator
4.2.1 Right Side View

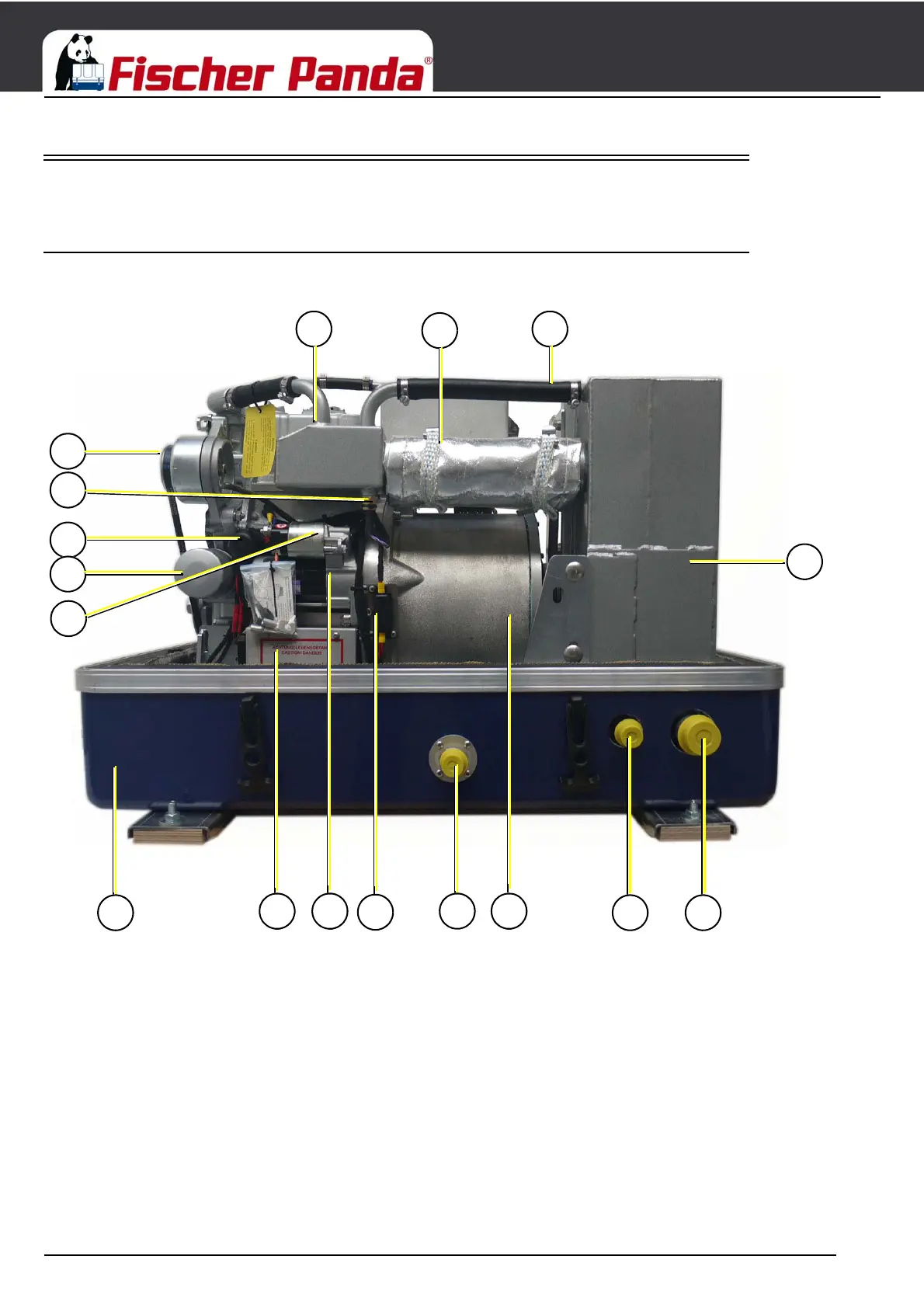

Fig. 4.2.1-1: Right Side View
04
06
08
07
12
13 14
15
01
02
03
05
10
09
11
16
17
01. Water-cooled exhaust elbow
02. Compensator under heat isolation
03. Coolant pipe, exhaust elbow - silencer
04. DC-alternator
05. Thermo-sensor exhaust elbow
06. Oil pressure switch
07. Oil filter
08. Solenoid for starter motor
09. Sound cover base part
10. Generator power terminal box
11. Starter motor
12. DC fuse
13. Connection cooling water inlet
14. Generator housing with coil
15. Connection cooling water output
16. Connection exhaust hose
17. Water-cooled silencer
