Fischer Panda 8000x - Components of Electrical System; Sensors and Switches for Operating Surveillance

The Panda Generator
10.6.16 Kapitel/Chapter 4: The Panda Generator - Seite/Page 43
4.3.4 Components of electrical system
4.3.5 Sensors and switches for operating surveillance

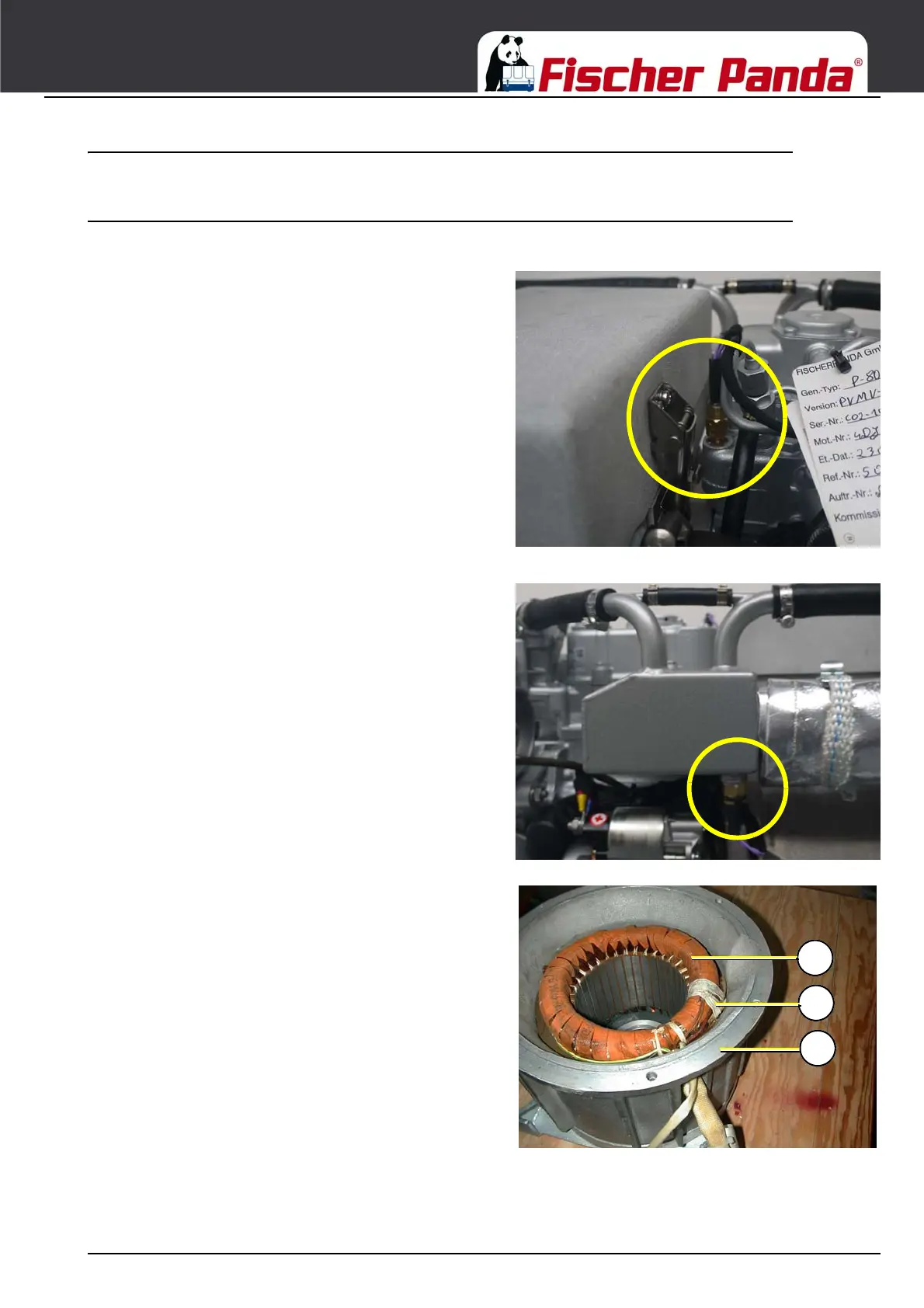

Fig. 4.3.5-1: Thermo-switch cylinder headThermo-sensor at cylinder head
The thermo-sensor at the cylinder head serves the
monitoring of the generator temperature.
Fig. 4.3.5-2: Thermo-switch at exhaust elbowThermo-sensor at water-cooled exhaust elbow
Fig. 4.3.5-3: Coil thermo-swotchThermo-switch in the generator coil
1. Generator coil
2. Thermo-sensor
3. Housing
For the protection of the generator coil there are two thermo-
switches inside the coil, which are for inserted parallel and
safety's sake independently from each other.
1
3
2
