Fischer Panda 8000x - Left Side View

The Panda Generator
10.6.16 Kapitel/Chapter 4: The Panda Generator - Seite/Page 37
4.2.2 Left Side View

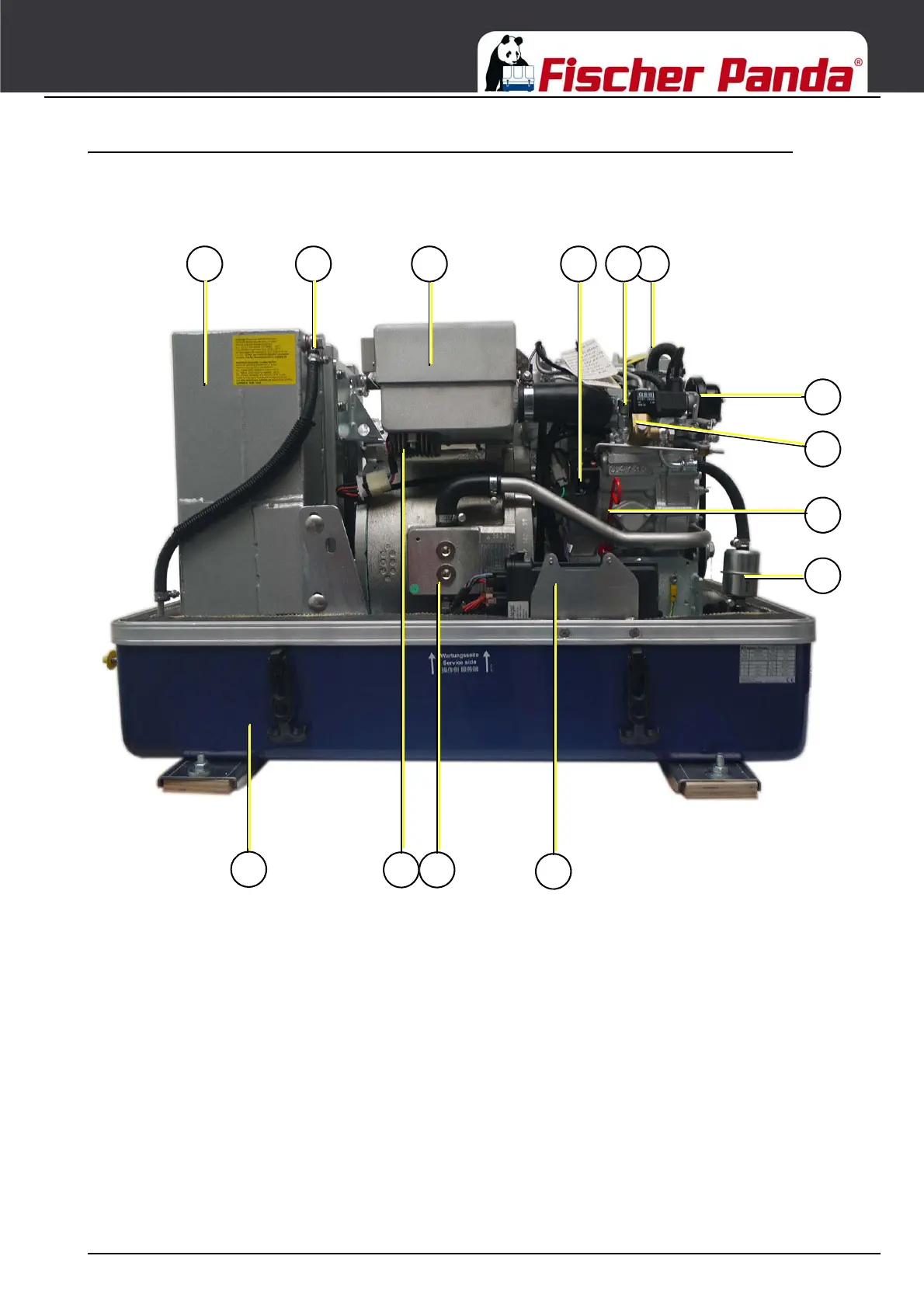

Fig. 4.2.2-1: Left side View
01
14
12
07
08
09
10
02 03 04 0605
11
13
01. Water-cooled silencer
02. Ventilation screw silencer
03. Air suction housing with air filter
04. Actuator for rpm-regulation
05. Injection nozzle
06. Ventilation screw thermostat housing
07. Pulley for internal cooling water pump
08. Fuel solenoid valve
09. Oil dipstick
10. Fuel filter
11. xControl ECU
12. Dynamo controller
13. Cooling water connection block
14. Sound cover base part
