10.6.16 Kapitel/Chapter 11: Panda xControl - Seite/Page 159
11.0.8 The Overview Screens
Which overview screen the display shows (symbolic-english text-german text) can be set up in the menu.

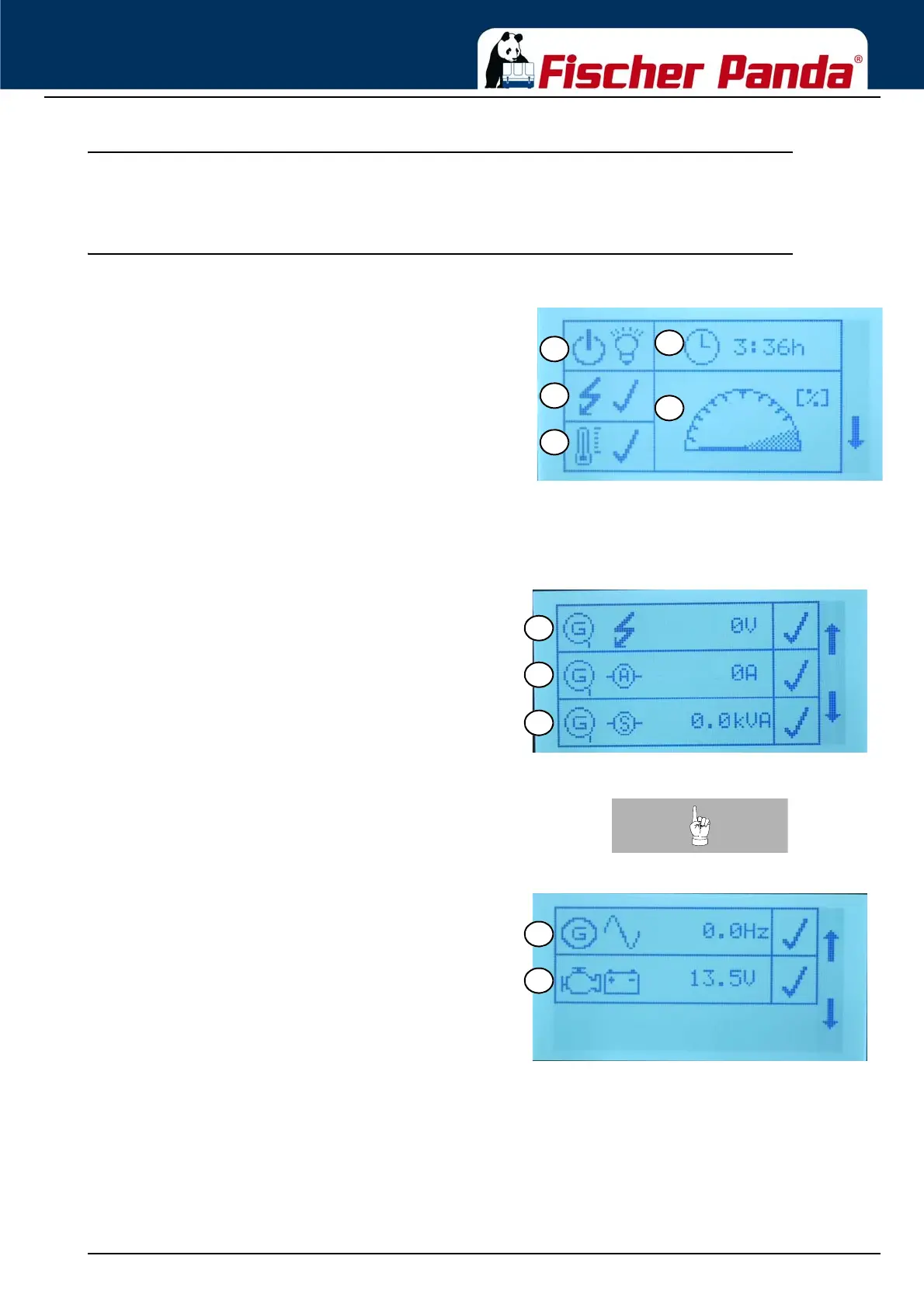

11.0.9 Overview Screens Symbolic
Fig. 11.0.9-1: Overview screen 1 symbolicWhich screen the display shows (symbolic or english text or
german text) can be set up in the menu.
The first screen shows:
01. Generator status
02. AC present
03. Temperature of the generator ok
04. Operating hours of the generator
05. Percentage of power
Fig. 11.0.9-2: Overview screen 2 symbolicThe second screen shows
06. Voltage of the generator
07. Current of the generator
08. Power (kVA) of the generator
Note:At 3 phase generator the voltage, the current and power
will be displayed on separate screens. Each screen
shows the value for the 3 phases one below the other.
Fig. 11.0.9-3: Overview screen 3 symbolicThe third screen shows
09. Frequency of the generator
10. Voltage of the starter battery
01
02
03
05
04
06
07
08
09
10
