Generator Failure
10.6.16 Kapitel/Chapter 8: Generator Failure - Seite/Page 123

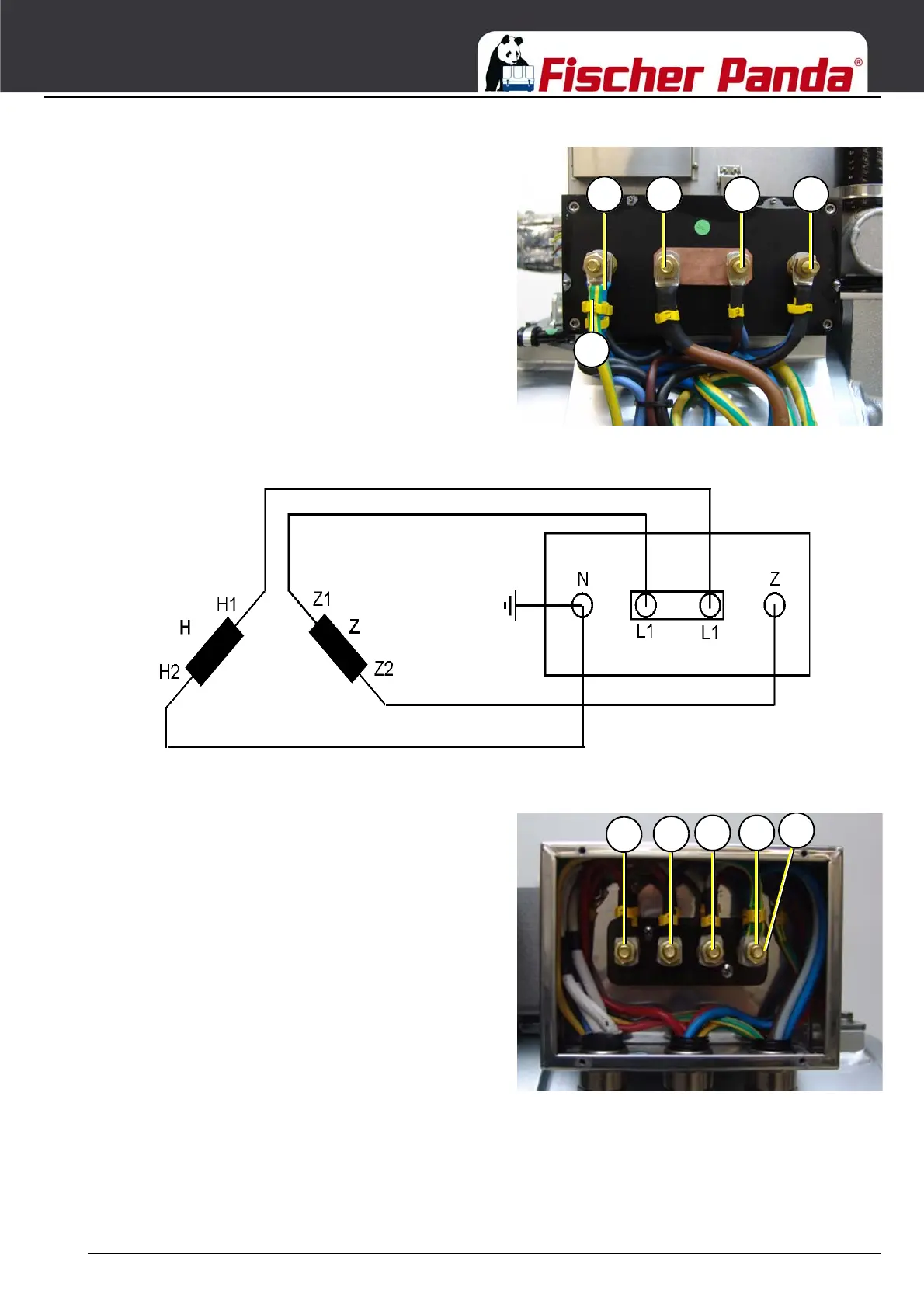

Fig. 8.6.5-1: Generator output terminal box 230 V / 50 HzGenerator Power Terminal Box 230 V / 50 Hz
In these terminal box there are the electrical connection
points for the AC generator. Here is also the bridge for the
protective grounding of the generator. The cover may only be
removed, if it is guaranteed that the generator cannot be
inadvertently started.
representative picture
Fig. 8.6.5-2: Wiring diagram HP1 - 230 V / 50 Hz
Fig. 8.6.5-3: Generator Power Terminal Box 400 V / 50 Hz
Generator Power Terminal Box 400 V / 50 Hz
In these terminal box there are the electrical connection
points for the AC generator. Here is also the bridge for the
protective grounding of the generator. The cover may only be
removed, if it is guaranteed that the generator cannot be
inadvertently started.
representative picture
