Fischer Panda 8000x - Page 73

Installation Instructions
10.6.16 Kapitel/Chapter 5: Installation Instructions - Seite/Page 73

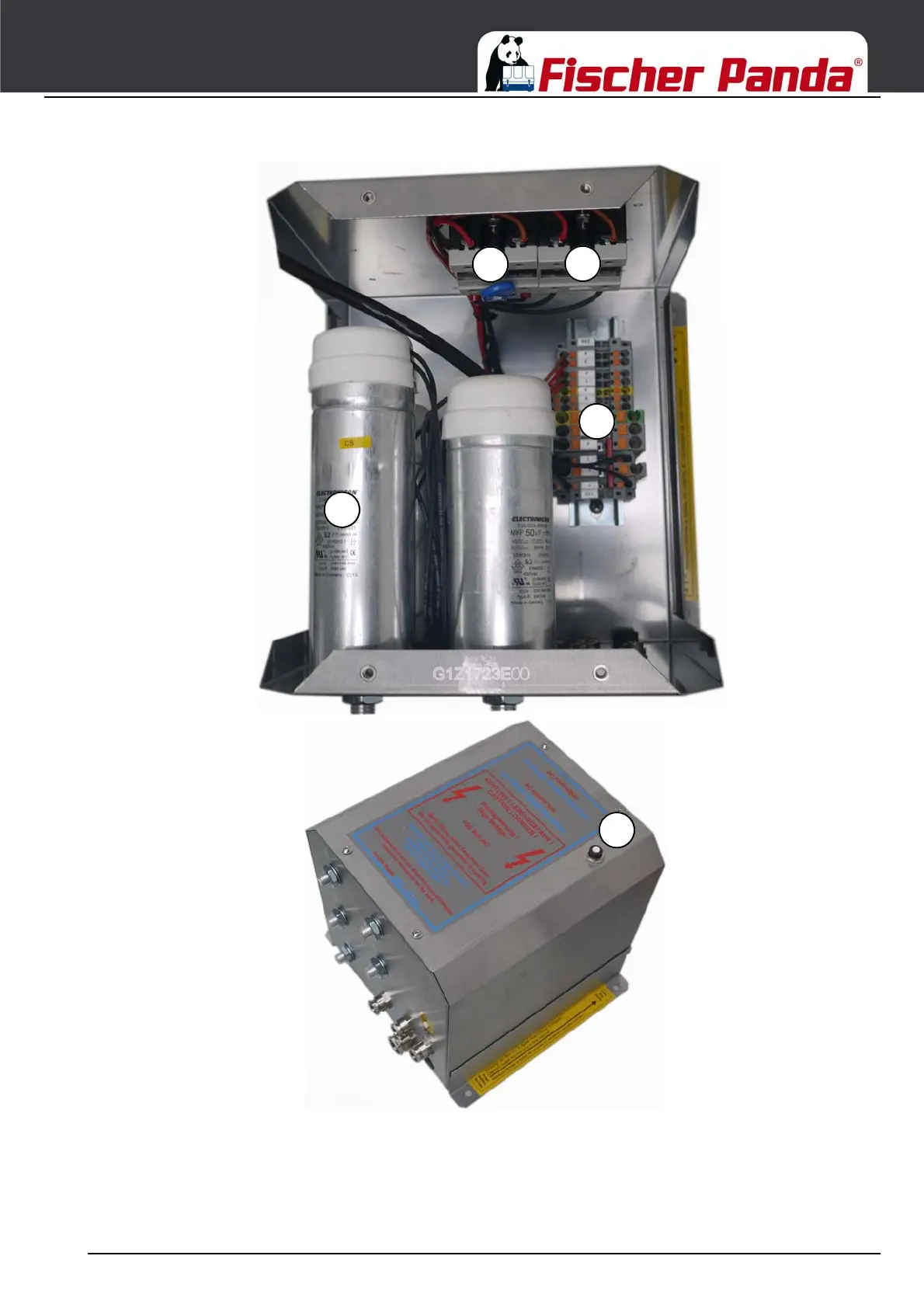

Fig. 5.15-1: AC-Control box single phase - example
4
2
1
3
5
1. Terminal block for excitation
2. Solenoid for radiator fan
3. Boost solenoid
4. Capacitors
5. Fuse for radiator fan (single phase)
