5. Product description
The contents of this manual consist of the specifications for a standard execution. Where appropriate, this
includes information on options or other configurations. If optional extras are supplied, further documentation
will be supplied in addition to this manual.
For installation instructions and further documentation in various languages, visit www.flamcogroup.com/
manuals. Further product information can be obtained from the respective Flamco branch oice (see “Contact”
on page 45).

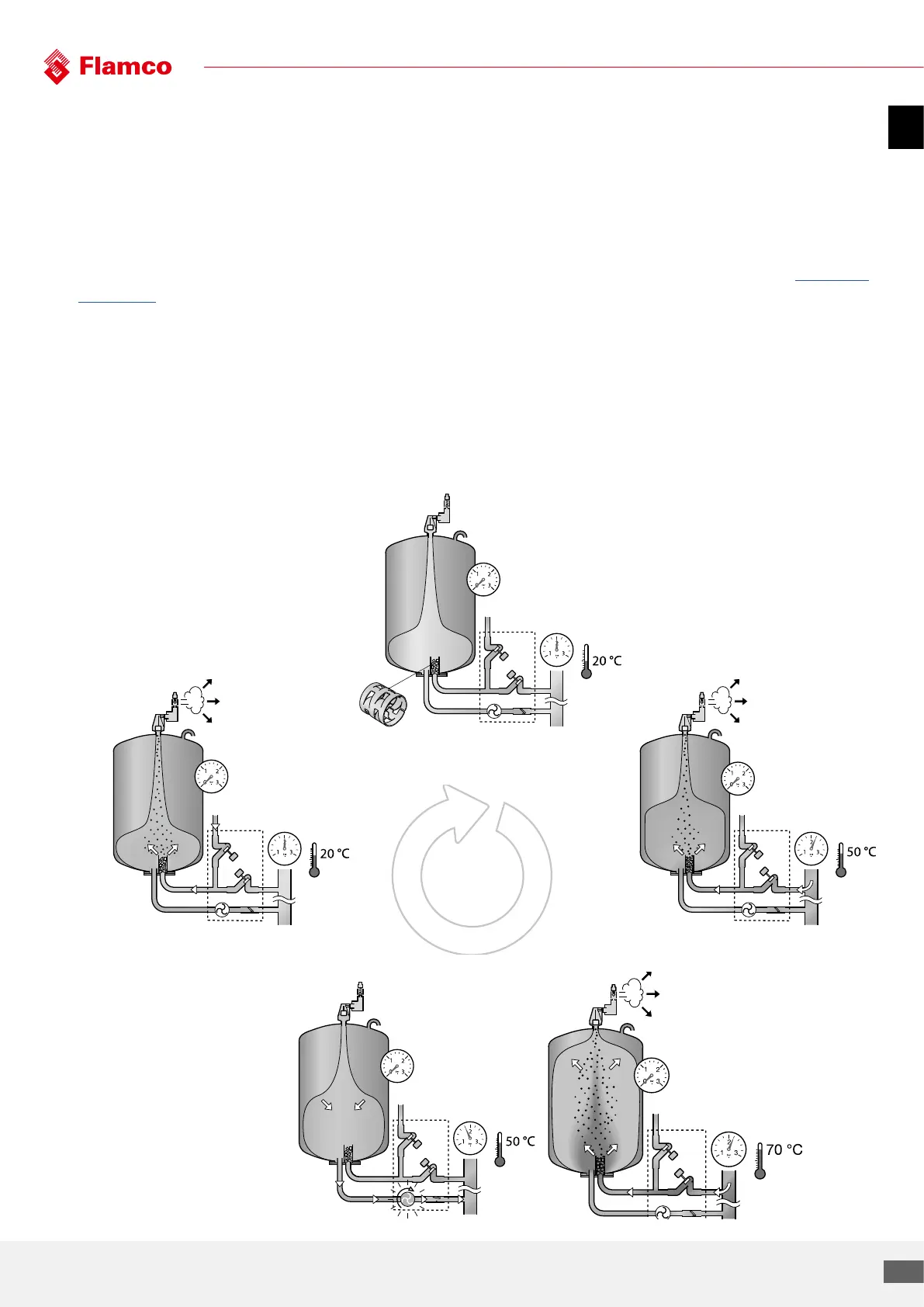

5.1 Operating principle
Flamcomat
3. Full power
By storing an increasing amount of
water in the tank, the automat keeps
the system pressure almost constant.
When the system has warmed up
completely, the vessel will be almost
full to capacity.
1. Cold
The automat contains a small amount of water.
The automat is still at rest.
2. Warming up
The volume of water and the system
pressure increases. The unit responds to
this by opening the solenoid valve. Water
flows into the pressureless vessel. The
water in the vessel is de-aerated due to
both the drop in pressure and the presence
of the PALL rings.
5. Topping-up
If the water level in the vessel drops to a critical
level, an appropriate amount of water will be
carefully pumped into the system from the water
mains. This water will be de-aerated (by pressure
loss and the PALL rings), before entering the
vessel.
4. Cooling down
The volume of water and the system
pressure decreases. The de-aerated
water is pumped from the pressureless
vessel back into the system. This
restores the system pressure.
