Manual Flamcomat G4 + Flamcomat Starter G4 We reserve the right to change designs and technical specifications of our products.
18
ENG

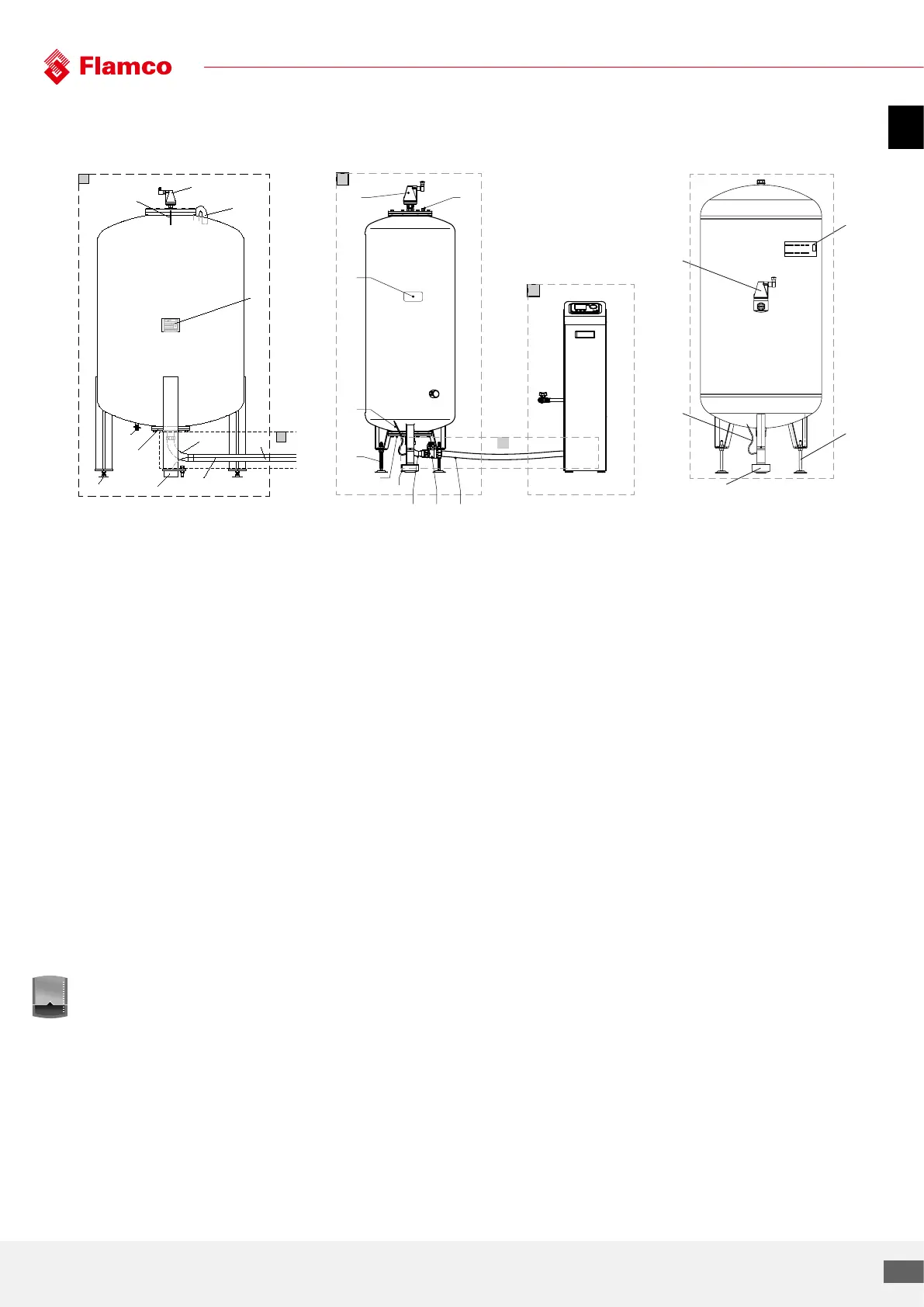

5.5 Component parts, vessels and connection assembly
1 Basic steel vessel (1A/B with built-in,
exchangeable butyl-rubber diaphragm for
absorption of the expansion water under
atmospheric separation conditions).
1.1 Name plate - Vessel:
1.2 Bleeder valve, float vent with air-intake preventer
to dissipate extracted gases into the atmosphere
* Incl. Vacuum safety valve
1.3 Atmospheric pressure balancing connection
Interior of vessel (space between inner vessel
surface and outer diaphragm surface)
1.4 Liing hook, load suspension for transport
1.5 Flange, vessel connection with internally fitted
degassing equipment, screw union, connection
array valve outflow line and pump suction line,
each with flat gasket (labelling)
1.6 Adjustable feet.
1.7 Capacity sensor with screw-type round plug
connector to signal wire
1.8 Signal wire level sensor
1.9 Lockshield valve for condensate drainage
1.10 Markings for pump and valve connection
2 Connection assembly, pre-installed, including
flat seal
2.1 Self-draining lockshield valve (vessel) with flat
seal, control unit port
2.2 Flexible pressure/suction hose
2.3 Pipe bend, flat sealing, vessel connector (DN32:
400 - 1000 liter, DN40: 1200 - 1600 liter.)
Type
Température de service mini. / maxi. admissible
Surpression de service admissible
Surpression d`essai
Capacité nominale
N° de série
litres
bar
bar
Type
Typ
Serial-No.
Serien-Nr.
Nominal volume
Nenninhalt
Permissible working overpressure
Zulässiger Betriebsüberdruck
Test overpressure
Prüfüberdruck
Permissible working temperature min. / max.
Zulässige Betriebstemperatur min. / max.
litre
Liter
Flamco STAG GmbH
39307 Genthin
GERMANY
°C
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
Année de fabrication
Year of manufacture
Herstellungsjahr
:
:
:
1
3
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
2.1
2.2
2.3
2
1.2
1.1
1.6
1.8
1.7
1
1.1
3
2
1.5,
1.6
1.10
1.7
2.1
1.8
1.31.2
2.3 2.2
A B C (Flamcomat starter)
1000 Ltr
>
