Manual Flamcomat G4 + Flamcomat Starter G4 We reserve the right to change designs and technical specifications of our products.
42
ENG
Vessel: operational characteristics
Nominal capacity
[litres]
Permissible positive
operating pres- sure
[bar]
Positive test
pressure [bar]
Temperature min.
(design) [°C]
Temperature max.
(design) [°C]
Permissible
permanent
temperature at the
diaphragm min. [°C]
Permissible
permanent
temperature at the
diaphragm max. [°C]
100 - 10000 3 4,72 0 120 0 70

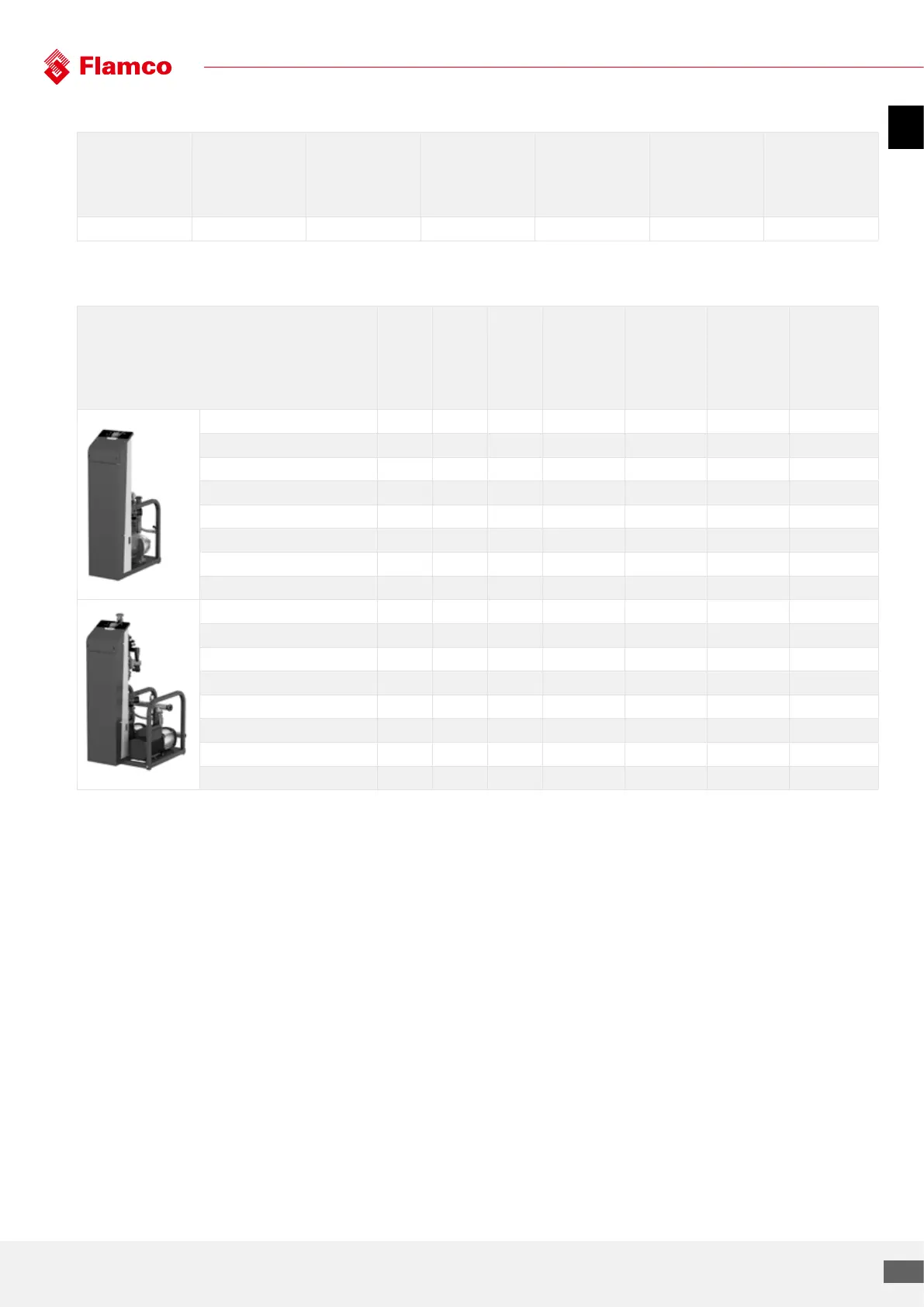

Pump module: dimensions and weights
Type Height
[mm]
Length
[mm]
Width
[mm]
Connection
Connection
array (vessel)
[G, inch]
Connection
system
[G, inch]
Connection
top-up
[Rp, inch]
Dead weight
(as delivered
condition
without
packaging) [kg]
MP M-2-50 (MM G4) 930 530 230 1” M 1 1/4” F ½” 22
MP 2-3-50 (M02 G4) 930 530 230 1” M 1 1/4” F ½” 28
MP 10-1-50 (M10 G4) 930 530 230 1” M 1 1/4” F ½” 35
MP 20-2-50 (M20 G4) 930 570 230 1” M 1 1/4” F ½” 35
MP 60-1-50 (M60 G4) 930 550 230 1” M 1 1/4” F ½” 53
MP 80-1-50 (M80 G4) 930 550 230 1” M 1 1/4” F ½” 68
MP 100-1-50 (M100 G4) 1000 550 230 1” M 1 1/4” F ½” 67
MP 130-1-50 (M130 G4) 1190 610 230 1” M 1 1/4” F ½” 75
DP M-2-50 (DM G4) 970 530 230 1” M 1 1/4” F ½” 29
DP 2-3-50 (D02 G4) 970 600 480 1” M 1 1/4” F ½” 45
DP 10-1-50 (D10 G4) 970 600 480 1” M 1 1/4” F ½” 61
DP 20-2-50 (D20 G4) 970 600 480 1” M 1 1/4” F ½” 61
DP 60-1-50 (D60 G4) 970 600 480 1” M 1 1/4” F ½” 61
DP 80-1-50 (D80 G4) 980 600 480 1” M 1 1/4” F ½” 115
DP 100-1-50 (D100 G4) 1000 600 480 1” M 1 1/4” F ½” 134
DP 130-1-50 (D130 G4) 1190 600 480 1” M 1 1/4” F ½” 153
