Manual Flamcomat G4 + Flamcomat Starter G4
We reserve the right to change designs and technical specifications of our products.
23
ENG
6. Assembly
6.1 Setup
A/B C (Flamcomat starter)

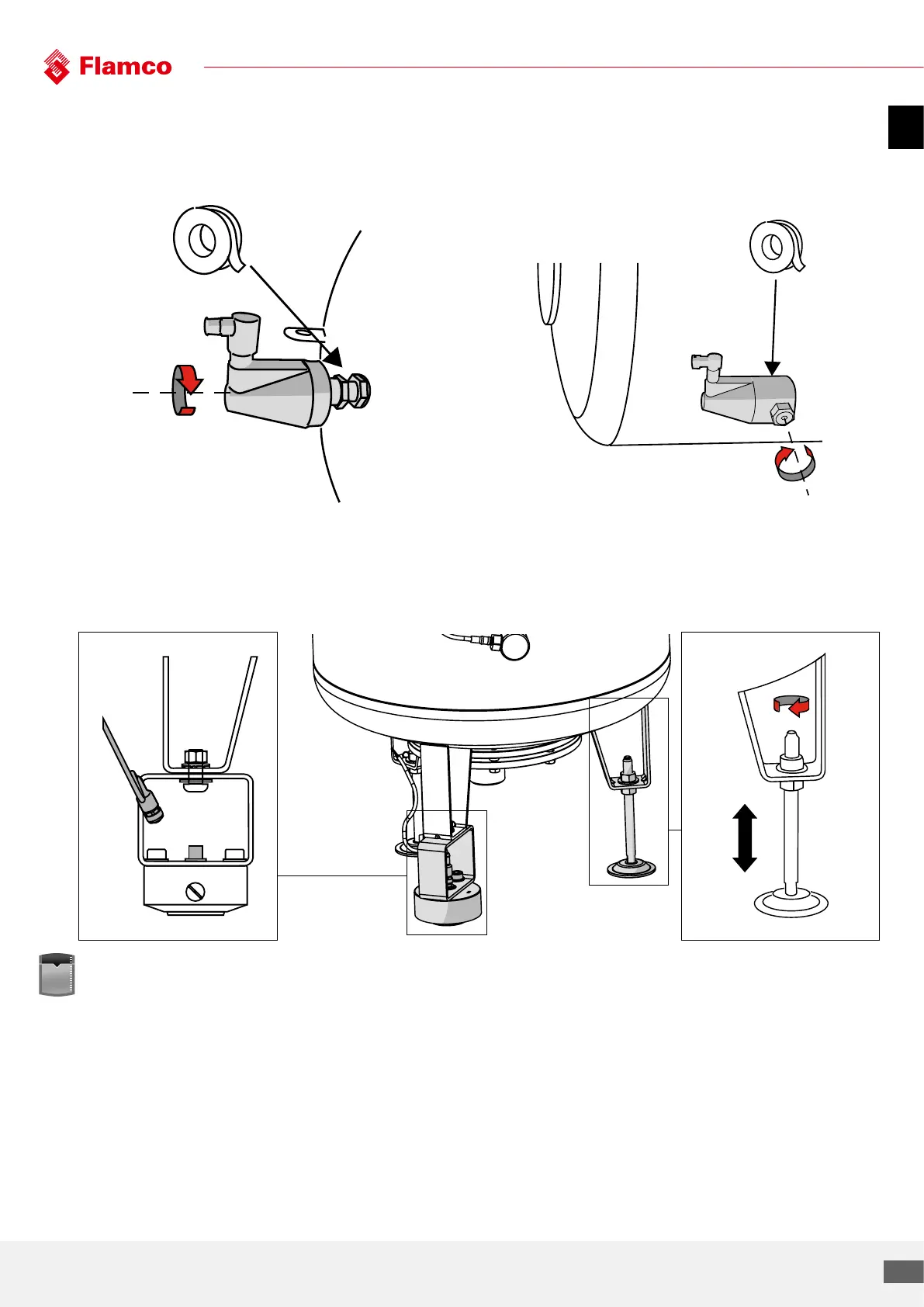

• Fit the automatic vent (supplied separately).
• Remove the transport seal by the volume sensor once the basic vessel has been set up in the proposed place
and no further positional changes are necessary. Avoid impact on the sensor and make sure the sensor is on a
surface which does not impair the function of the sensor pressure-pad.
• Installation of the weight-capacity sensor and the adjustable feet.
• Using the foot-height adjuster, adjust the vessel until it is vertical. Use two vertical magnetic spirit levels.
1000 Ltr
≤
