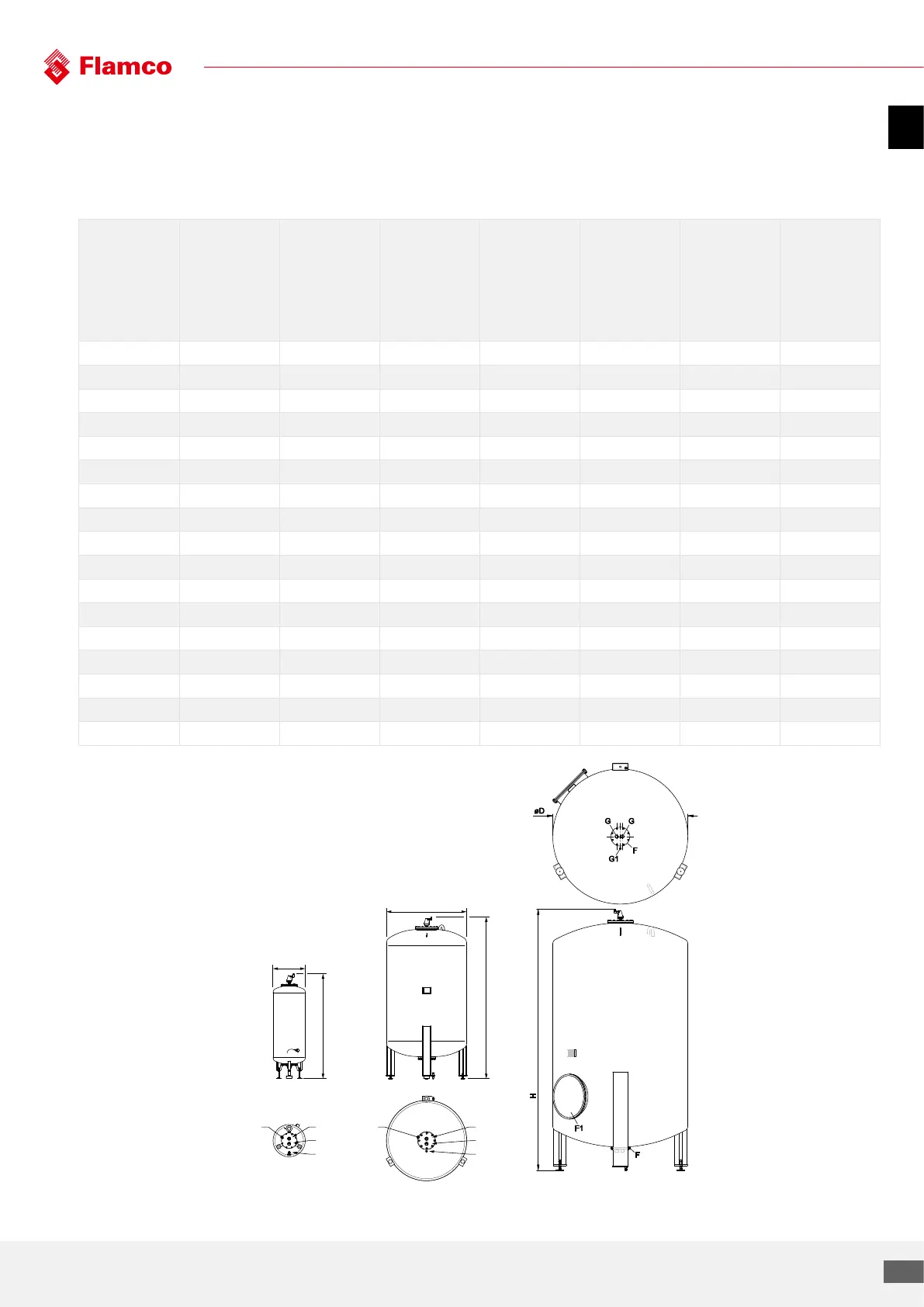

Appendix 2.
Technical data, specifications, hydraulic equipment
Vessels: volume, dimensions and weights
Nominal
capacity
[litres]
Vessel
diameter D
(Characteristic C)
[mm]
Maximum
height H
(Characteristic C)
[mm]
Vessel
connector
feed returnG
[G; inch]
Condensate
drain G1
[G; inch]
Vessel
flange F
[DN]
Vessel
flange F1
[DN]
Deadweight
(as delivered,
without
packaging)
(Characteristic C)
[kg]
100 484 (484) 1050 (904) 1½” ½” 165 35 (27)
200 484 (600) 1560 (1081) 1½” ½” 165 31 (42)
300 600 (600) 1596 (1451) 1½” ½” 165 41 (56)
400 790 (790) 1437 (1293) 1½” ½” 165 62 (76)
500 790 1587 1½” ½” 165 70
600 790 (790) 1737 (1653) 1½” ½” 165 77 (97)
800 790 2144 1½” ½” 165 92
1000 790 2493 1½” ½” 165 106
1200 1000 2210 1½” ½” 165 291
1600 1000 2710 1½” ½” 165 346
2000 1200 2440 1½” ½” 165 431
2800 1200 3040 1½” ½” 165 516
3500 1200 3840 1½” ½” 165 626
5000 1500 3570 1½” ½” 165 1241
6500 1800 3500 1½” ½” 165 500 1711
8000 1900 3650 1½” ½” 165 500 1831
10000 2000 4050 1½” ½” 165 500 2026
ØD
ØD
H
G1½"F
G1½"
G1"
G1½"F
G1½"
G1"
H
View from below
View from below
150 - 1000 liter
(1000 liter ø 750)
1000 - 5000 liter
(1000 liter ø 1000)
6500 - 10000 liter
