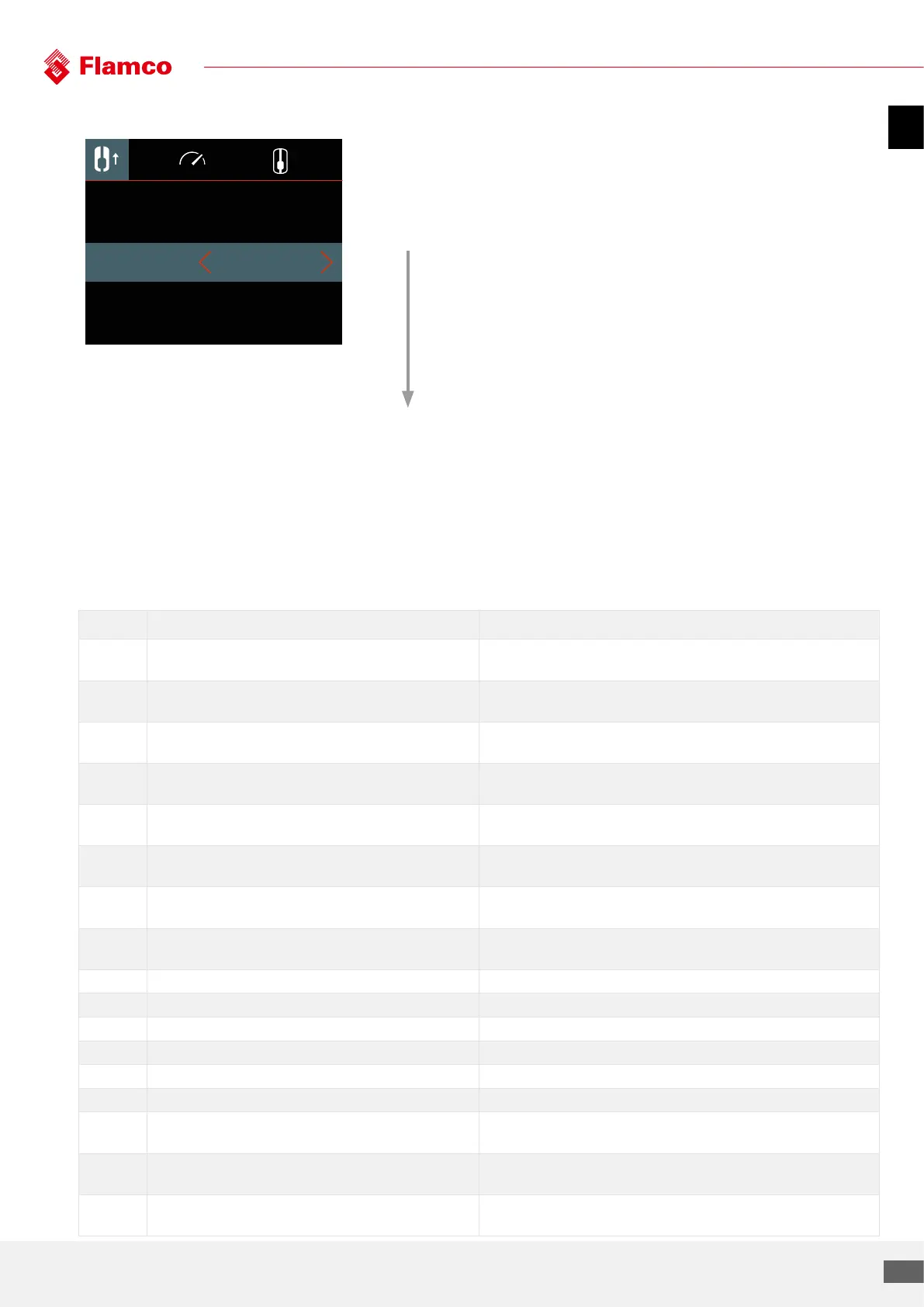

7.5 Top-up, operation with the water treatment module
2.2 bar 12 %
Upper level limit 97 %
Drain Start 94 %
Drain Stop 92 %
Refill Stop 12 %
Refill Start 9 %
Upper level limit
Drain start
Drain stop
Refill stop
Refill start
Minimal level
Low level limit
Filter capacity
Maximal Refill time per cycle
Maximum Refill liters per cycle
Refill interval
Refill cycles per day
7.6 Malfunction messages
Procedures and values for error identification, evaluation and output have been tried in practice, prevent
secondary failures and invite user awareness. Please note that incorrect set-up conditions can lead to repeated
errors and inhibit the intended use. Examples of incorrect set-up conditions are: incorrect or no longer applicable
design, outdated equipment, incorrect installation and inadmissible operational parameters.
Error #
GUI Action
0
Single pump maximum run time error Pump failure. Check functioning of pump. Call Technical support if no solution
can be found.
1
Redundant pumps maximum run time error Pump failure. Check functioning of pumps. Call Technical support if no solution
can be found.
2
Load dependant pumps maximum run time error Pump failure. Check functioning of pumps. Call Technical support if no solution
can be found.
3
Single pump current error Potential failure of pump. Check electrical connection of pump. Call Technical
support if no solution can be found.
4
Pump A current error (double pump configuration) Potential failure of pump. Check electrical connection of pumps. Call Technical
support if no solution can be found.
5
Pump B current error (double pump configuration) Potential failure of pump. Check electrical connection of pumps. Call Technical
support if no solution can be found.
6
Pumps A and B current error (double pump c configuration) Potential failure of pump. Check electrical connection of pumps. Call Technical
support if no solution can be found.
7
Pump C current error Potential failure of pump. Check electrical connection of pumps. Call Technical
support if no solution can be found.
8
Self-learning valve correction error Please reset the error by aknowledging the error in current error/warnings
9
Self-learning pump correction error Please reset the error by aknowledging the error in current error/warnings
10
Pressure sensor current exceeded Check if the cable to the pressure sensor is not damaged
11
Pressure sensor no current Check if the cable to the pressure sensor is connected
12
Load cell current exceeded Check if the cable to the level sensor is not damaged
13
Load cell no current Check if the cable to the level sensor is connected
14
Pump A power consumption too high Potential failure of pump. Check electrical connection of pump. Call Technical
support if no solution can be found.
15
Pump B power consumption too high Potential failure of pump. Check electrical connection of pump. Call Technical
support if no solution can be found.
16
Pump C power consumption too high Potential failure of pump. Check electrical connection of pump. Call Technical
support if no solution can be found.
