Discovery, Discovery LXE, Pace Arrow, and
EQUIPMENT - INTRODUCTION
This section covers the basic
operation and care of equipment
found in the motorhome. More
detailed information about specic
equipment may be found in that
particular OEM manual. Optional
equipment will also be discussed
in this section that may not apply
to all motorhomes.
INFORMATION:
Detailed information with
CAUTION or WARNING
instructions for the various
electronics, other than what
is provided in this section,
can be found in that
specific OEM manual.

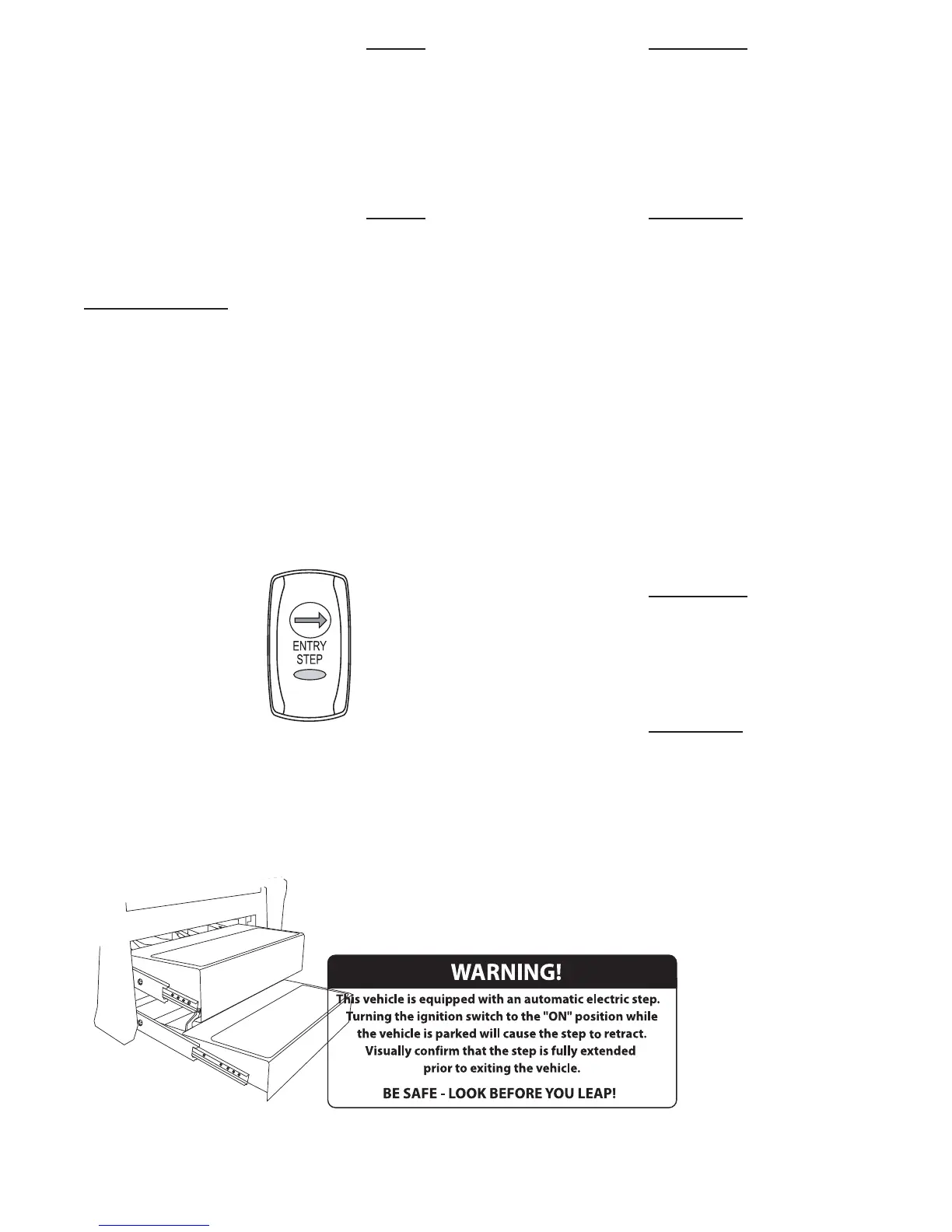

ENTRY STEP
Operation
The exterior electric entry
step will extend and retract with
door opening and closing,
automatic retraction with
the ignition key in the run
position and a “last out”
feature. The entry switch
illuminates when turned on.
NOTE:
When dry camping,
it is important to note
that when the switch is
illuminated all step circuits
are active and drawing
current from the chassis
battery.
NOTE:
The chassis battery
disconnect switch must
be on for the entry step to
operate.
Entry Step Operation:
With entry step switch on, the
step will extend and retract when
the entry door opens and closes.
Cancel Step Operation
When Parked:
Open door to extend step. Turn
entry step switch off. Entry step
will remain extended.
Last Out Feature:
Turn the ignition off and open
the door. The step will extend.
This is the “last out” feature.
Ignition Override:
When the ignition is on, the
step will extend and retract with
door movement with the entry
step switch off. This ensures the
step will not be extended during
travel and will extend when the
door is opened.
WARNING:
The entry step will retract
when the ignition switch is
turned on. Always confirm
the entry step is fully
extended and locked in
position prior to exiting the
motorhome.
CAUTION:
High curbs can impede step
operation. Use care when
parked on side streets.
If the entry step fails to
operate:
If the step fails to operate:
 Verify that the step switch
is on.
 A magnetic door jam
switch is used to control
step operation. Use a
separate magnet to apply
a “trigger” to the door jam
switch. Rotate test magnet
to align
WARNING:
If the motorhome is
driven with the step in the
extended position, damage
could occur to both the step
and the motorhome.
CAUTION:
Keep fingers, clothing and
other hardware away from
moving components.
Maintenance
The steps are equipped with
self-lubricating bushings in the
drive assembly and step joints and
require no maintenance.
020325
Entry step
080521c
Located
at base of
passenger
console
