Battery Temperature Sensor
A battery temperature sensor
(BTS) is afxed to one of the
house battery terminals to measure
battery temperature and send
that information to the inverter.
When battery temperature
rises, the inverter will decrease
charge voltage to prevent boiling
the batteries. When battery
temperature cools, the inverter
will raise charge voltage. Voltage
compensation with temperature
variation is necessary to keep
charge voltage at optimum values.
If the BTS cord is unplugged from
the inverter, the inverter will use a
temperature default setting of 77º
F./25º C. as a reference point.
Auto Generator Start (Optional)
The automatic generator start
(AGS) feature allows the inverter
remote to start the generator
when battery voltage or interior
motorhome temperature (ATS)
reaches a preset point. The
AGS parameters are set at the
inverter remote control. The AGS
controller carries out the AGS
functions.
NOTE:
The battery cutoff switch
(interior house power)
must be on for the AGS/
ATS features to function.
WARNING:
The Test button intiates
an Auto Gen Start test
cycle. Be sure it is safe to
perform a test cycle before
activating a test cycle.
Serious damage, personal
injury or death can result.
NOTE:
Refer to the OEM manual
located in the Owner’s
Information File Box for
detailed instructions.
AGS Menu:
Press the AGS button on
the remote to access the
AGS menu. Rotate the Select
knob to scroll through menu
options and press the knob
to enter a specic menu and
make selections. Pressing
the knob to set a function is
indicated by an arrow next to
the selection indicating the
function is set or enabled.
Press the AGS button at any time
to return to the main AGS menu.
AGS Menu options are labeled 01
through 08.
01. AGS Control: Rotate
the knob to scroll through
Off, Enable, Test, or
Enable w/Quiet Time.
02. AGS Status: View
current AGS status.
Indicates what feature
started the generator.
03. Run Time Hours:
Choose generator run
time duration from .5 to
6 hours.
04. Start Temp F: Select
the interior temperature
for Auto Temp Start
(ATS). Be sure to select
External Input as an
interior temperature
sensor is used for this
feature. Start temp range
is 65°-95° F.
05. Start Volts: Sets voltage
at which the generator
starts based on house
battery voltage. Settings
are 10-12.2 Volts DC.
Default setting is 11.0
Volts DC. If AGS is
enabled, the generator
will start when house
battery voltage drops to
11.0 Volts DC.
06. Set Time: Set the 12
hour clock on the remote.
The clock will need to be
reset should power to the
remote be disconnected.

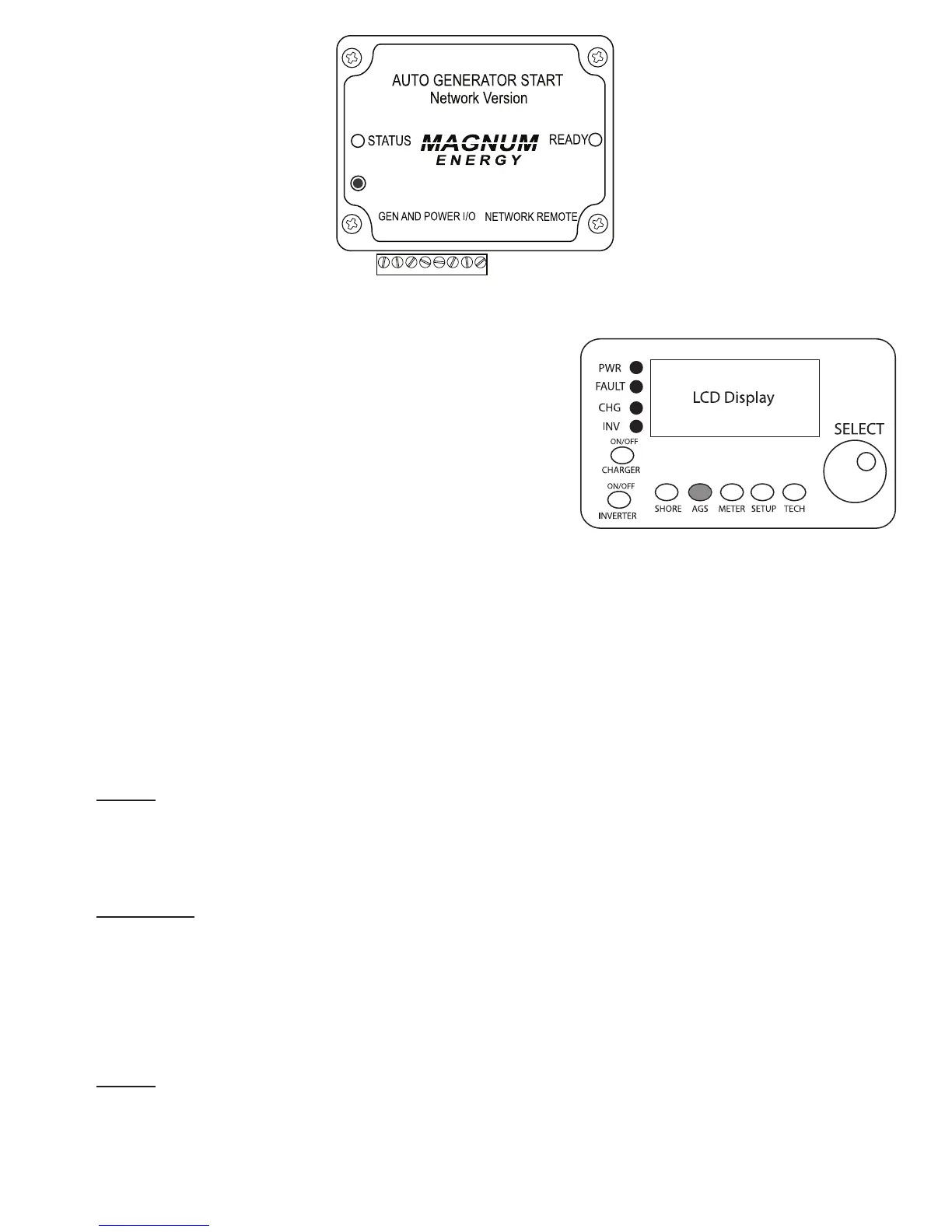

AGS Controller: Located in curbside bay
next to the inverter.
060299ba
TEST
060254
Inverter remote control
