115
Discovery, Discovery LXE, Pace Arrow, and
NOTE:
Do not leave the fan switch
in the active mode while
the motorhome is stored or
unattended. High winds,
unusual conditions or
obstructions may prevent
the fan lid from fully
closing, resulting in leakage
and serious water damage.

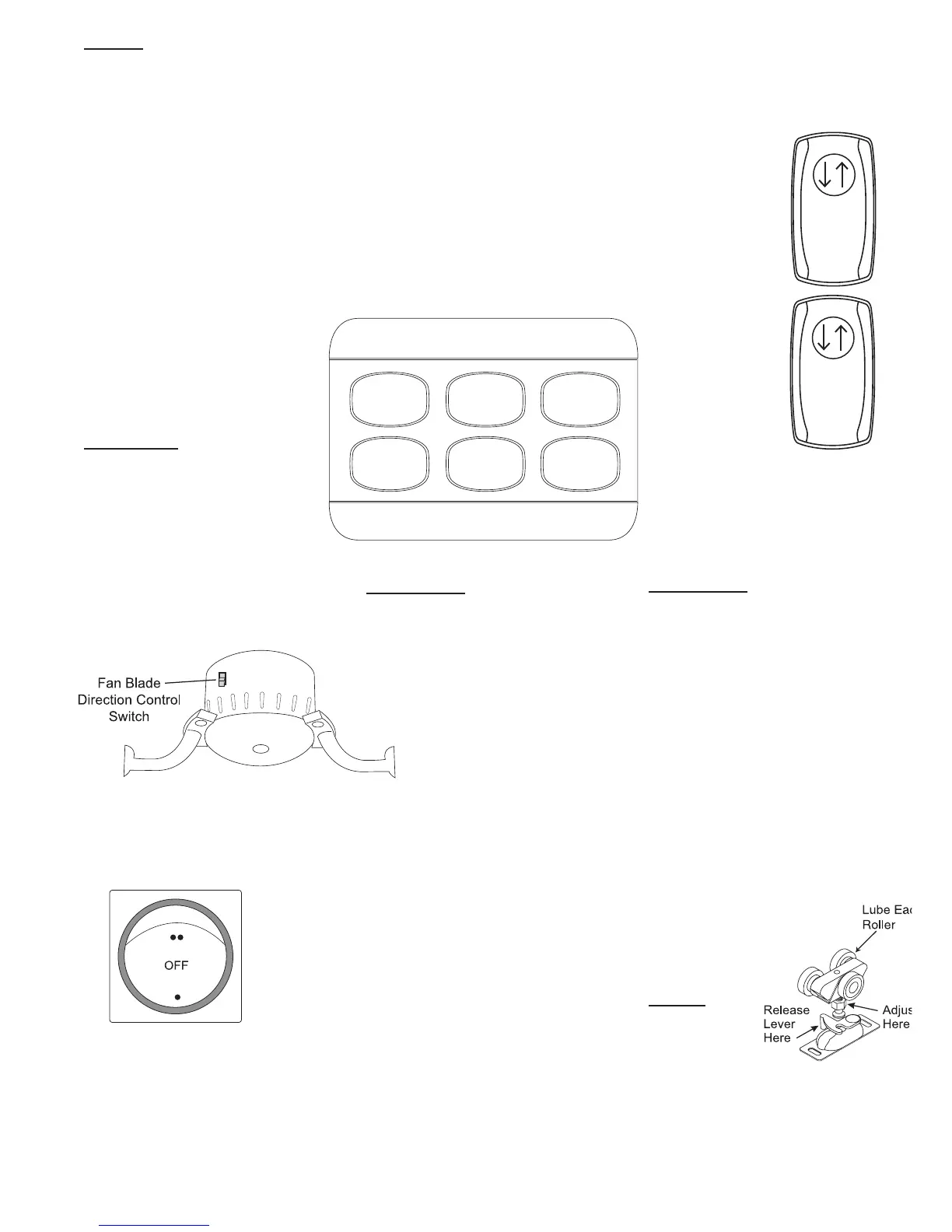

BEDROOM CEILING FAN
(OPTIONAL)
A bi-directional 12 Volt DC
powered ceiling fan is located in
the bedroom. Place the switch in
the up position or down position to
move air in the desired direction.
CAUTION:
Do not enter into the path
of the fan when on. Serious
injury can occur.
Fan operation is controlled by
a three-position switch. Select
either high speed or low speed or
off. Periodic maintenance consists
of cleaning the blades with a soft
cloth towel or a vacuum to remove
dust build-up.
To
Operate the Fan:
House battery disconnect
switch must be on.
PRIVACY BLINDS & SHADES
Cockpit
Each cockpit window is
equipped with a shade and
privacy blind. All privacy blinds
are electric. The shades over the
passenger, driver and entry door
windows are manual. The power
blinds are operated by switches on
the driver’s console and cockpit
shade control switch panel.
WARNING:
It is strongly recommended
to fully raise the shades
during travel.
Up - Press and release to
fully raise shades.
Down - Press and release
to fully lower shades.
Press either button to stop
shade at desired level.
Press again to continue.
Windshield Blind and Shade
Operation:
The “Front Shade” switch
on the driver’s
console operates
the solar screen.
Press and hold
switch in the up
or down position.
Release switch to
stop solar screen
movement at any
position.
The “Front Bline”
switch on the
driver’s console
operates the
privacy blind.
Press and hold
switch in the up or down
retract position. Release
switch to stop solar screen
movement at any position.
WARNING:
For visibility and safety, do
not drive the motorhome
with any cockpit window
treatment in the down
position.
DOOR - SLIDING
The sliding pocket door utilizes
two rollers at the top of each door.
The sliding door may eventually
require adjustment. Turn adjusting
screw upward or downward
as necessary to align door. To
remove the pocket door, rotate
lever outward
to release the
latches.
LUBE:
The pocket
door rollers
should be
lubed with
just a small drop of oil
once a year to help increase
the life of the rollers and
improve sliding.
030949e
High
Low
031271b
LIVING
CEILING
ALL
SHADES
ALL
BLINDS
ENTRY
TASK
LIGHTS
DINETTE
060297pb
Shade controls
FRONT
BLIND
FRONT
SHADE
070147
