Discovery, Discovery LXE, Pace Arrow, and Pace Arrow LXE
 If shore power service is
less than 50 amps, install
the proper adapter on the
shore plug to ensure a safe
connection.
 Always turn off the
shore power breaker
before connecting or
disconnecting the shore
cord. This will prevent
an accidental shock and
ashing of electrical
contacts.
 Align terminals of the
shore cord plug with
the terminal sockets of
the shore power outlet.
Carefully, without touching
electrical contacts, push
plug completely into
socket until the plug is
rmly seated. The cord
should be slightly slack to
prevent strain on the plug
and socket.
 Turn on the shore power
breaker.
 Turn on the battery cutoff
switch.
When Hooked to 50 Amps:
After verifying proper voltage,
wait approximately one minute for
the inverter to stabilize charging
of the batteries before starting air
conditioners or other large AC
loads.
Maintenance: When Hooked
to 30 Amps:
Allow the inverter sufcient
time to stablize battery charging
before operating electric
appliances. Operate appliances
and outlets in sequence
rather than all at the
same time.
Disconnecting the
Shore Cord:
 Turn off all AC
appliances.
 Turn off the shore
power breaker. This
will prevent accidental
shock and ashing of
electrical contacts when
disconnecting.
 Straighten, clean and store
the cord.
 Assist the cord when
retracting. Stop retracting
the cord when it is 6" from
the opening. Retracting
the cord too far will make
it difcult to retrieve the
plug.
Maintenance:
Kinks may form in the shore
power cable when only a short
section is frequently used.
Routinely extend the cable full
distance. Unwind any kinking.
Clean cord and inspect ends for
fraying.
Inspect contact terminals
for overheating evident by
discoloration of contacts or
melting of the plug housing.
Replace damaged or worn
components for continued safety
and reliability of the power cord.

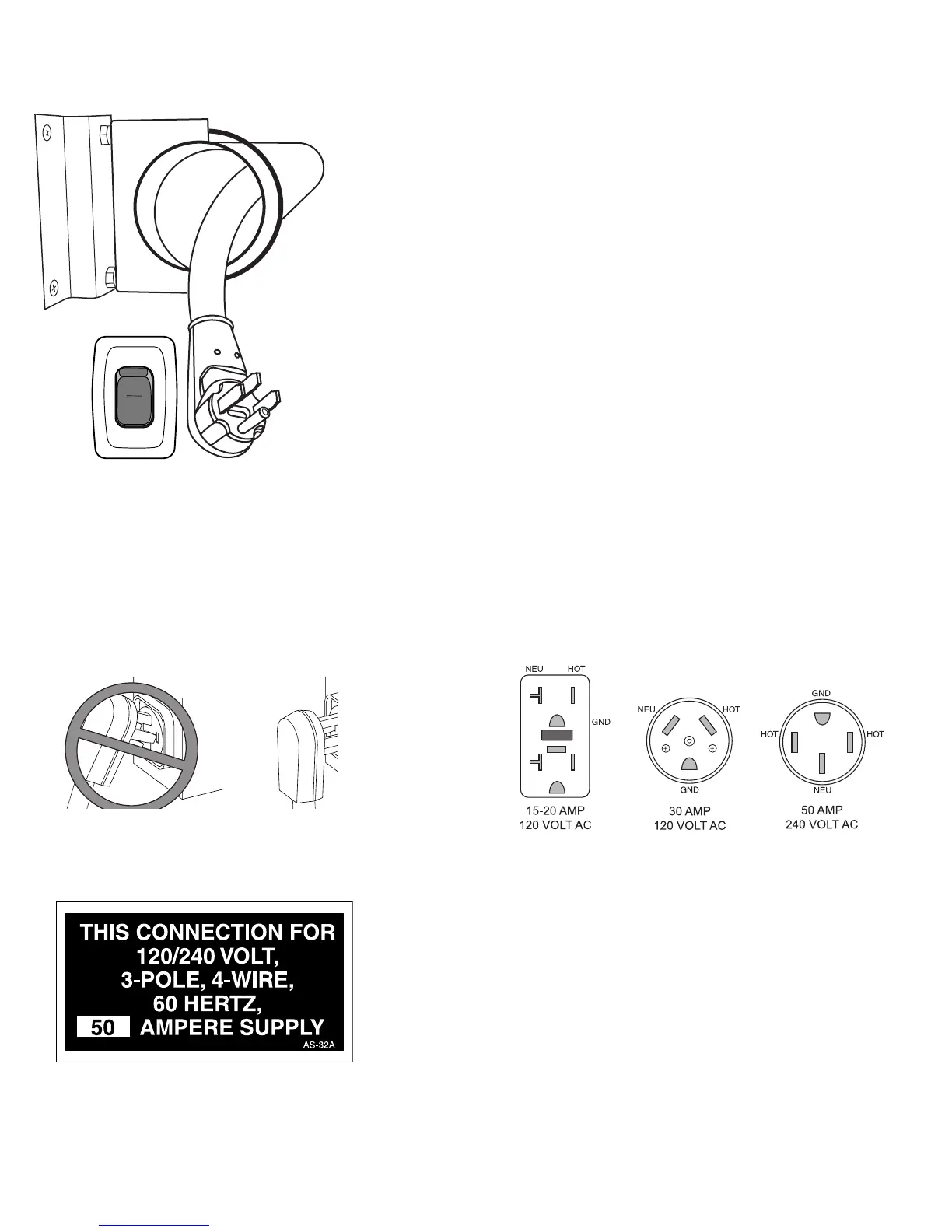

Electrical Adapters
Shore power comes in three
basic congurations: 50 amp, 30
amp and 20 amp.
 The continuous amount of
current through a breaker
or fuse is 80% of its rated
capacity.
 50 Amp shore power
service consists of two
power supply conductors,
a neutral and a safety
ground.
060212
060203
060121c
Shore power cord
060316b
100220b
Power cord
retract switch
