Discovery, Discovery LXE, Pace Arrow, and
latch is fully unlocked prior
to closing. Damage to the
dead bolt and/or entry door
can result.
Changing Screen Door
Glass:
The screen slider is
Tuffak
®
. The slider can be
bowed for removal and
replacement.
Replace with new Tuffak
and reverse the procedure.
Adjusting the Screen Door:
The steel hinge has slots to
allow movement.
Loosen the fasteners on
the hinge side of the screen
door: two on the top and
two on the bottom.
The hinge should t tightly
to the trim of the door
when the screen door is
latched to the door and the
door is open.
Removable Screen:
The top half of the screen door is
removable, allowing a clear view
through the entry door glass while
in operation.
To remove the top half of
the screen door for travel,
rotate clips and remove the
screen.
To store the screen for
travel, use the clips
provided on the bottom
half of the screen door.
Air Seal
The entry door is equipped with
a one-piece air seal to reduce wind
and road noise.
The seal automatically
inates when the
transmission is shifted from
neutral into gear.
The entry door seal will
inate to approximately 3
to 4 psi.
The pressure regulator
control valve is located
behind the front cap on the
curb side of the generator.
When the transmission is
placed in neutral, the entry
door seal will deate.
CAUTION:
If the pressure regulator
should require adjustment,
do not exceed 5 psi.
Damage to the seal will
occur.
Rotate clip to remove
screen
020315d

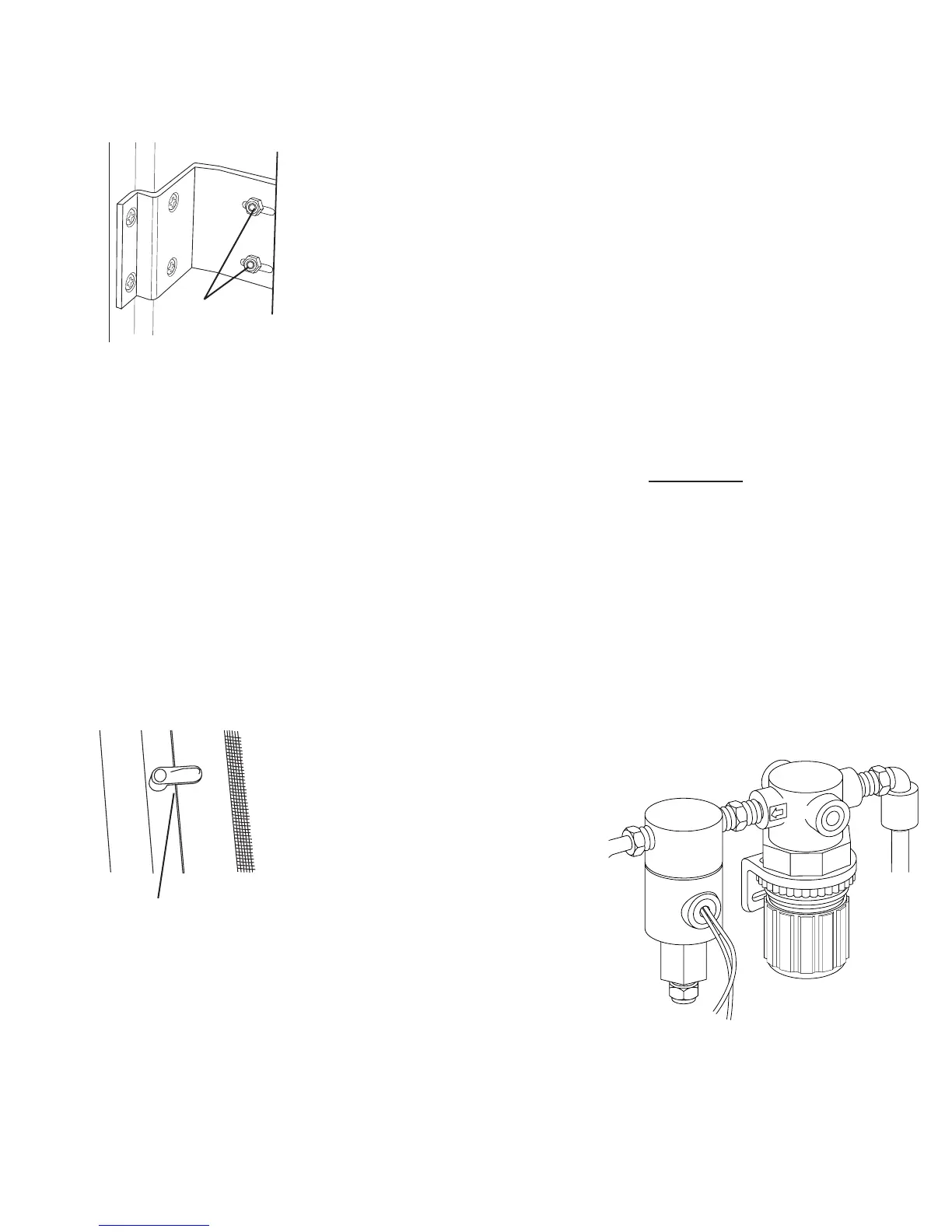

Loosen to adjust
070213
090419b
Door seal regulator
located in generator
compartment
