Fleetwood Pace Arrow User Manual

92
Discovery, Discovery LXE, Pace Arrow, and Pace Arrow LXE
NOTE:
The Engine Assist will
not provide enough heat
while traveling in cold
weather (below 50º F.) The
diesel burner must be on
for comfort heating while
traveling in cold weather.
NOTE:
Comfort heating can still be
used in transit if the Aqua
Hot has been winterized.
Troubleshooting
Should the Aqua-Hot System fail
to operate, complete the following
checks:
1. Verify the Aqua-Hot
front cover is properly
installed. The Aqua-Hot
will not function
if the front cover
is not properly
installed or
removed.
2. The diesel burner will
not operate if fuel level
is at or below ¼ tank.
3. Ensure the coolant
reservoir has an
adequate supply of
coolant. The reservoir
is located next to the
Aqua-Hot.
4. If the indicator
light on the Aqua-Hot
diesel switch does
not illuminate, and
the diesel burner is
not functioning, the
electronic controller
may indicate a fault.
Check the controller for
any Red lights indicating
a fault condition. If the
Low Voltage Reset LED
is illuminated, charge the
house batteries then reset
the controller by pressing
the reset button or cycling
the Diesel switch off then
back on. Check for loose wire
connections on the electronic
controller terminal strips/plugs.
5. Electronic Controller
Diagnostic: Green
LED lights indicate the
system is operating and
functioning normally.
A Red LED indicates a
system fault.
6. If a fault exists,
indicated by a Red LED
illuminated, refer to Aqua
Hot OEM manual for
further information.
Bay Thermostat
An adjustable thermostat turns
on the heat exchanger in the water
center to help protect against
freezing. Thermostat temperature
can be adjusted to suit needs. It is
recommended to set the exterior
thermostat to about 40º F.
Maintenance
Heat Exchanger:
Exchangers can be clogged
by pet hair and other debris,
reducing heating performance.
The exchangers require a
minimum semi-annual cleaning
of the heating ns, blower fans
and register box. Clean the area
around the exchanger to reduce
reoccurrence of buildup. A vacuum
cleaner works well for cleaning the
exchanger and surrounding area.
040486c
040486a

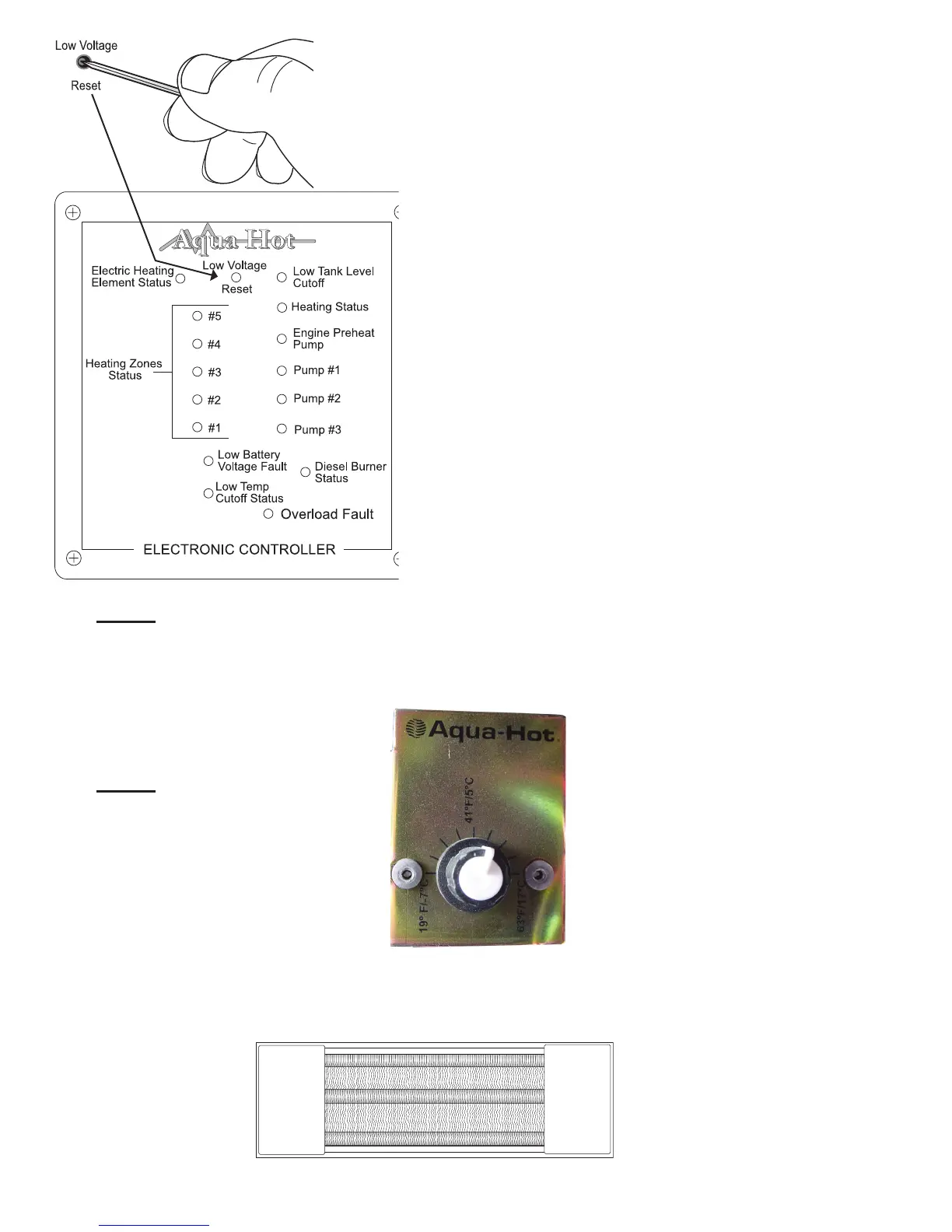

Electronic controller located in Aqua-Hot
040646c
Typical Heat Exchanger
Aqua-Hot thermostat located
behind service panel. It is factory
preset and should not require
adjustment.
