Discovery, Discovery LXE, Pace Arrow, and

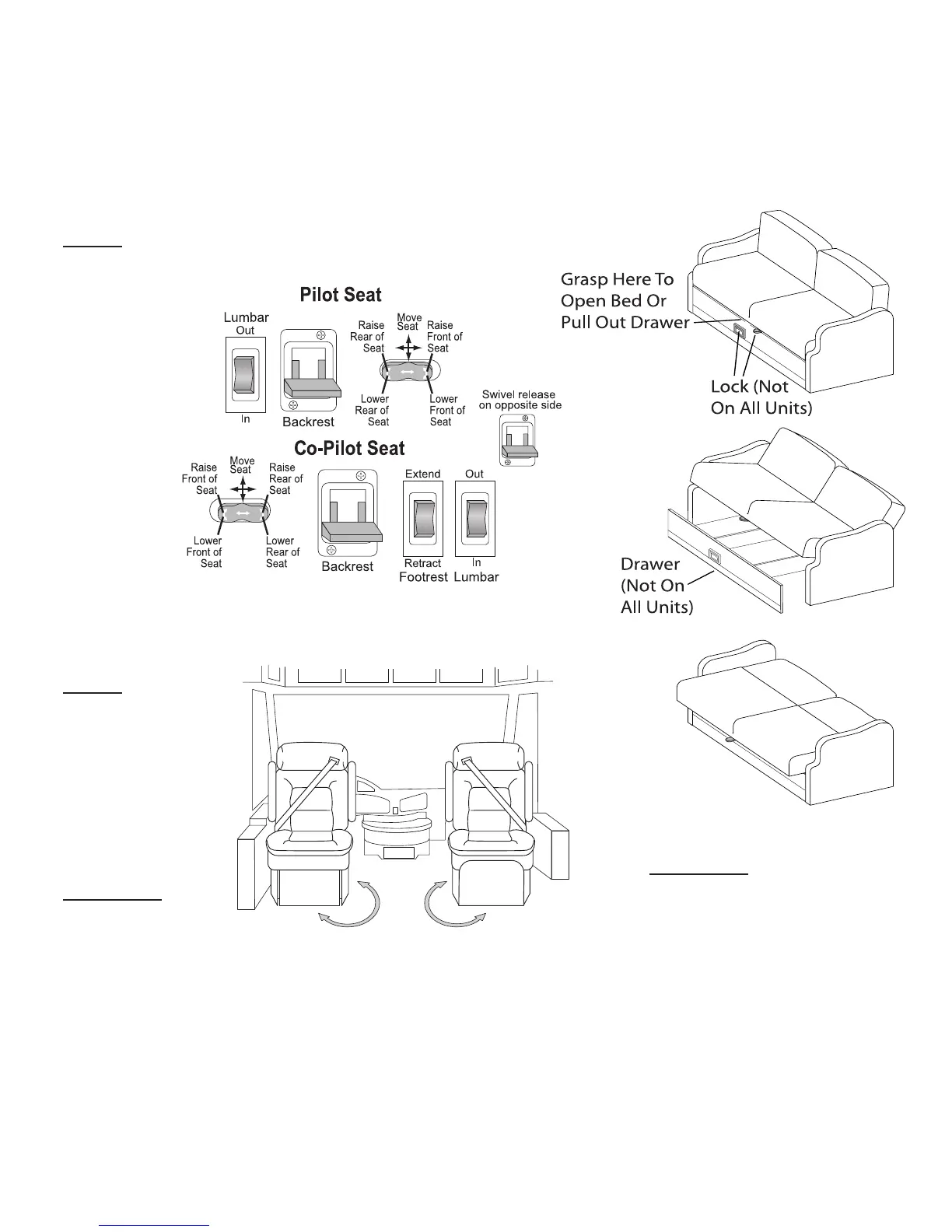

SEAT CONTROLS
The Pilot and Co-pilot seats are
adjustable to provide maximum
comfort. Seats must be locked in
the forward facing direction while
traveling.
NOTE:
The seats operate from 12
Volt DC house power.
Swivel Seats
Swivel Seat
Operation:
To swivel, pull
up the swivel
control lever.
When rotating
the driver
seat, put the
steering wheel
in the upright
position.
Move the seat
forward. Pull
the swivel lever up and
rotate to the desired position.
NOTE:
If either power seat
is rotated 180°, it
must be rotated
back in the opposite
direction. The 12
Volt wiring in the
seat may disconnect
if seat is rotated
360°.
WARNING:
Seats must be locked
in the forward
facing position while the
motorhome is in transit.
SOFA
Jack Knife Sofa
The sofa coverts into a bed. Clear
the area of obstruction and debris.
Sofa to Sleeper:
If applicable, release lock.
Raise the sofa seat base until
seat base and backrest form
a “V” shape by lifting up
from the center of sofa just
below the seat cushions.
Push down on seat base until
the seat base and backrest
are at.
Sleeper to Sofa:
Lift the seat base up until
seat and back rest are in a
“V” shape.
Push down on seat base.
WARNING:
Do not use the sofa for
transporting infants or
children that require safety
seats or booster seats.
Hide-A-Bed (Optional)
The sofa hide-a-bed will convert
into a bed. Clear the area of
obstruction and debris.
Sofa to Sleeper:
Remove the three seat
cushions to access the hide-
