111
Discovery, Discovery LXE, Pace Arrow, and
3. Line up an equal distance
along the outside wall.
Do not push on the
ange.
4. In synchronized
movements, push the
room in with repeated
attempts.
5. Close the release nuts
when the room is fully
retracted.
NOTE:
The slideout room is heavy
and will require several
people to push the room
into position. When the
slide room is in the fully
retracted position, tighten
the release nuts to hold the
room in place. Do not over
tighten.
Manual Override - Bedroom &
Wardrobe

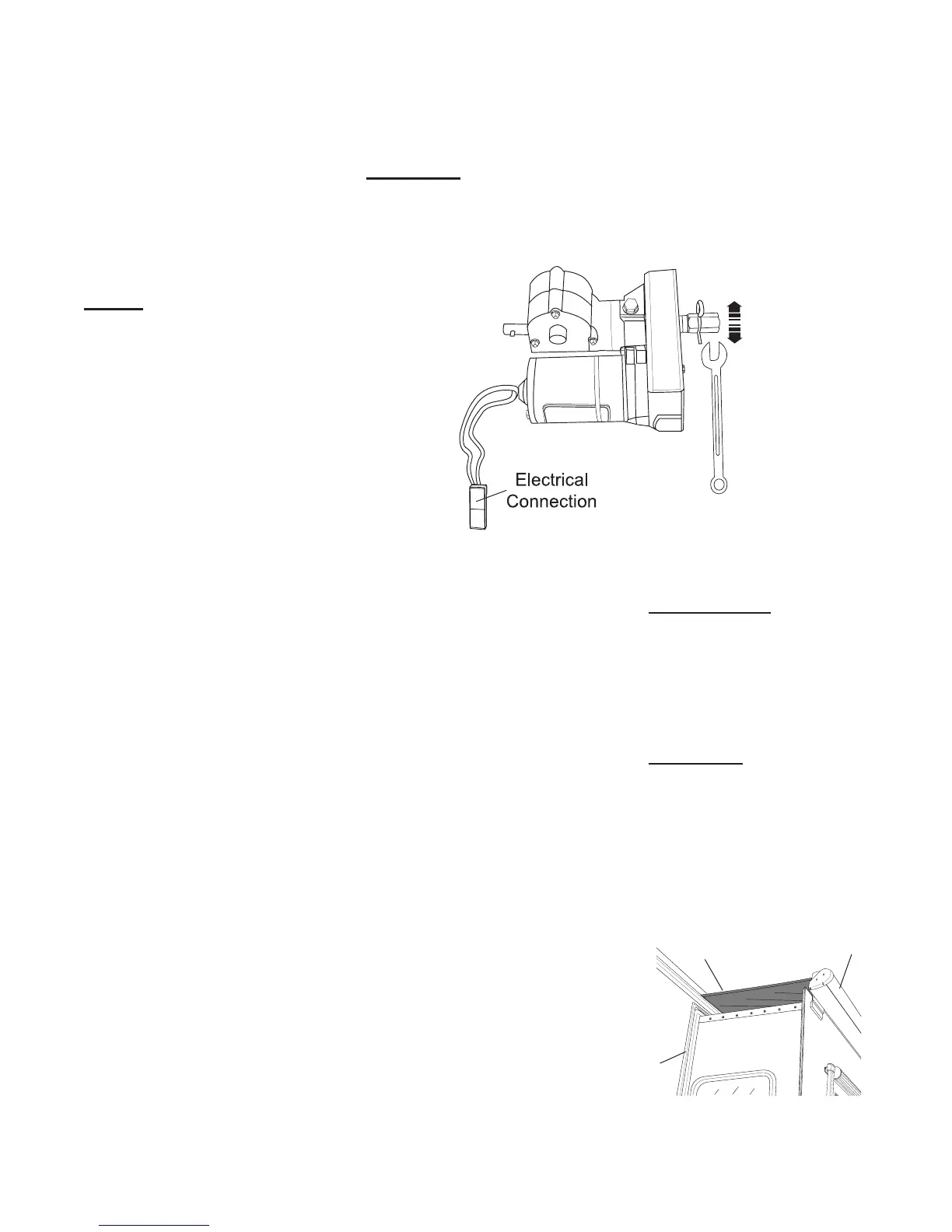

The electric motor is located
under the bed deck behind a false
panel. Check house battery voltage
is sufcient and related fuses are
good before manually retracting
the bedroom slideout.
Turn off both the chassis
and house battery
disconnect switches.
The above oor slideout
motor is located under
the bed. Lift the bed and
remove the access panel.
Disconnect the slideout
motor electrical plug to
remove 12 Volt DC power
from the slideout motor.
The plug can be located by
following wires that run
from the motor to the plug.
Use a wrench to turn drive
shaft and retract room.
Once the slide room is
manually retracted, apply
pressure to the wrench to
rmly set the room and
prevent room drift.
Once the slide room
is manually retracted,
reconnect power supply.
Take the motorhome to an
authorized repair center.
CAUTION:
Do not continue to turn
the motor after the room is
fully extended or retracted.
Further damage to the slide
mechanism
can occur.
Inspection
Inspect roof of the slide
for debris such as pine
needles, dirt, leaves,
sticks, etc. Debris left
on the top may cause
damage to the seals during
retraction. If debris is
present, wash with soap
and water, then rinse.
When the room is out,
visually inspect the wipe
seal for dirt or other foreign
material and for tears.
If the slide room leaks,
fully retract the room. If
necessary, tape exterior
opening closed with
duct tape until repairs to
the motorhome can be
completed.
AWNINGS
Slide-out Cover
The slideout cover automatically
reacts to slideout direction. A
xed edge of the slideout cover
is installed into an awning rail,
mounted just above the slideout. A
spring-loaded roller with brackets
mounts to the slideout. In hard rain
the slideout cover helps prevent
water from penetrating the seal of
the slideout. The
slideout cover
automatically
reaches full
extension when
the slideout room
is fully extended.
The
slideout cover
automatically rolls
up into the travel
position when the
slideout room is fully retracted.
INSPECTION:
When retracting the
slideout, stop the room
approximately halfway.
Confirm that the fabric
is properly rolling before
fully retracting the slideout.
CAUTION:
The slideout room and
slideout awning should
be retracted before heavy
wind, rain or snow to
prevent damage to the
awning or motorhome.
Wind can drive rain under
the slideout awning and
into the motorhome.
030750c
Bedroom slideout
031236
Slideout cover
Slideout awning
Slideout
