Discovery, Discovery LXE, Pace Arrow, and
CAUTION:
Extensive damage could
occur to the slide room and
awning when extending
the slideout room in
snow, sleet, ice or freezing
rain conditions. In such
conditions, if the slide room
is extended, clear the awning
and ensure free movement
prior to operating the
slideout room.
CAUTION:
Dirt and grit trapped
under the slide room can
scratch and damage the
floor. Clean the floor before
retracting the slide room.
Never move the motorhome
with the slide room
extended.
CAUTION:
Do not use petroleum
based products on the
slide seal. Petroleum
based products can
damage the paint and will
cause premature aging of
the rubber seal.
WARNING:
The outside area must be
clear of obstruction that
can restrict slide room
operation. Ensure there
are five or more feet of
clear space outside the slide
room prior to extending
the room or damage to
the slide, motorhome or
property can occur. Ensure
there is sufficient clearance
inside the motorhome prior
to retracting. Clear the
area of people and pets.
CAUTION:
Continuous operation of
the slide room can drain
the batteries and overheat
the motor.
CAUTION:
If a problem with the
slideout occurs, contact a
qualified technician.
Troubleshooting
If the slide room does not
operate, the house batteries may
be discharged or a safety feature
may be engaged to prevent room
operation.
If the slideout does not respond
from switch, check the following
requirements:
Engine is off.
Park brake is applied.
Conrm house batteries are
charged.
House battery disconnect
switch is on.
Lock bar is removed.
Jacks are retracted (if
applicable) with the
motorhome supported
by the air suspension (air
springs).
Ensure all electrical
connections at the switch
are good.
Ensure the house batteries
are fully charged and the
interior house power is on.
Check uid level in
reservoir. Maintain uid
within ½" from top of
reservoir when slide-outs
are retracted.
Check the two fuses
adjacent to the hydraulic
pump. If the fuses are good
and the room does not
operate, it is possible to
manually retract the slide.
It may be necessary to
contact a repair facility
to have the problem
diagnosed and repaired.
Manual Override - Living Room
1. Access the slide room
hydraulic pump.
2. Use the ¼" nut driver on
the end of the reservoir
cap to turn the release
nuts on the solenoids
counterclockwise. Do not
exceed 4½ revolutions as
damage to the solenoids
may result. The room
may move slightly
when valves are opened
and internal pressure is
released.

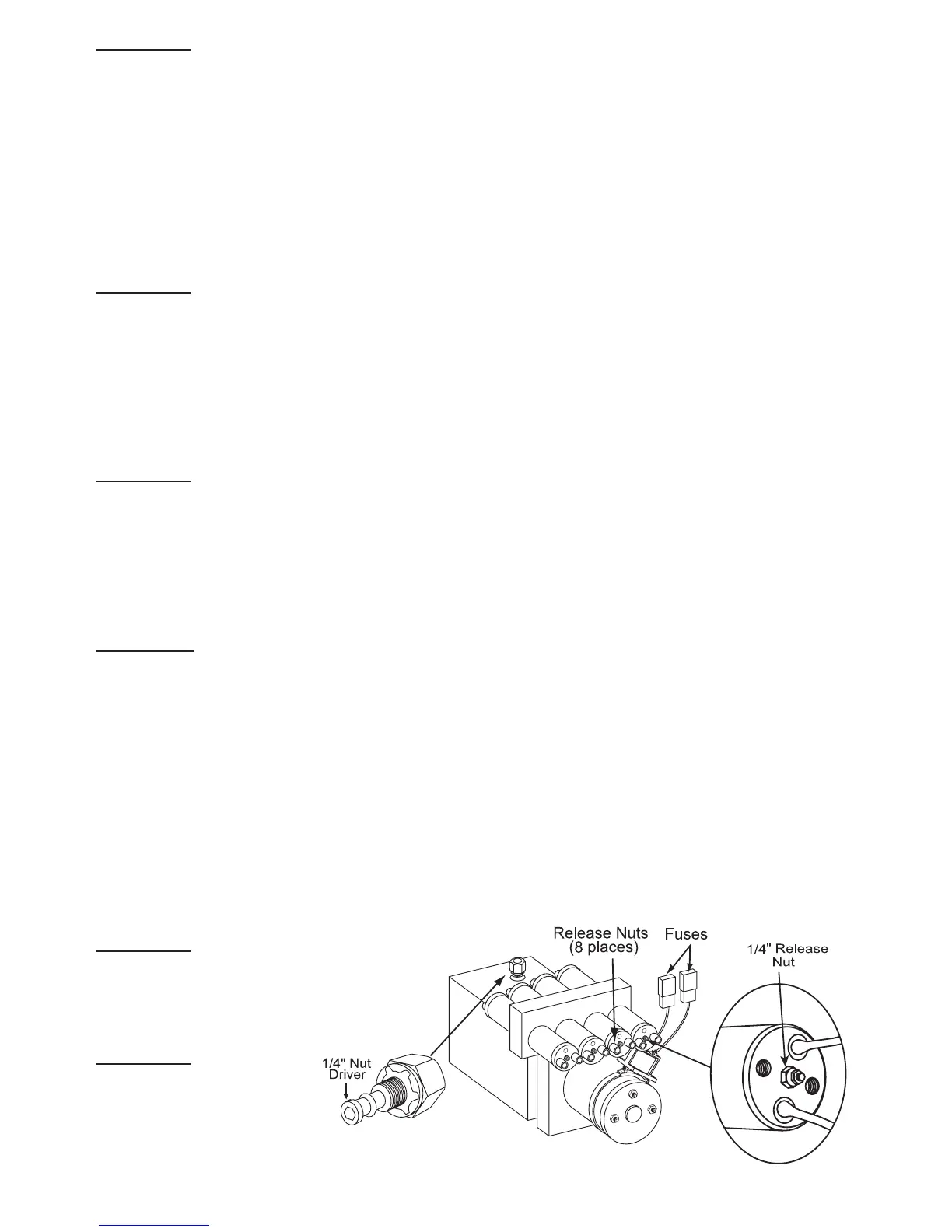

Slideout hydraulic motor located
curbside generator compartment
090342h
