95
Discovery, Discovery LXE, Pace Arrow, and Pace Arrow
Internal Diagram
Apply clean lubricating oil
to the new lter gasket.
Spin lter onto head until
lter makes contact then
tighten an additional ¾ of a
turn. Do not over-tighten.
Start the Aqua-Hot and
check the fuel lter for
leaks.
NOTE:
It may be necessary to cycle
the diesel burner switch
on and off a few times to
thoroughly purge the fuel
system of air.

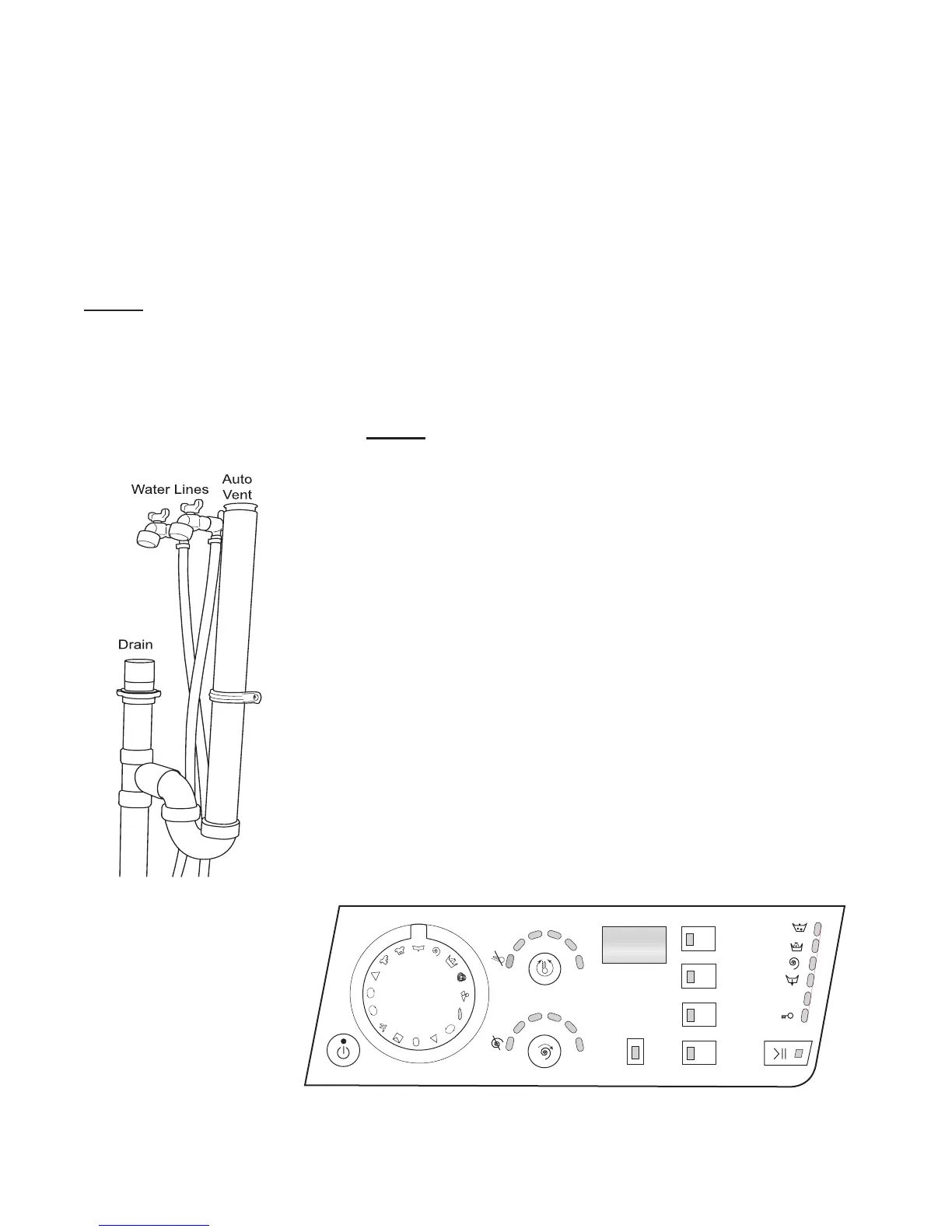

WASHER-DRYER PREPARED
If the motorhome was not
ordered with a washer-dryer, it will
have a washer-dryer preparation
package installed from the factory.
The washer-dryer “prep” package
includes the following items:
Color coded water supply
lines. A red line for hot; a
blue line for cold.
A 1½" water drain line with
threaded cap, P-Trap and
an automatic vent cap.
A 120 Volt receptacle
located in the compartment.
NOTE:
Sidewall dryer vents
are not part of the prep
package. If a sidewall vent
is to be installed, properly
seal the vent to sidewall.
If a washer-dryer is to be
installed at a later date, follow
the manufacturer’s installation
instructions. Further instructions
for safe and reliable operation:
Do not connect the clothes
dryer exhaust duct to
any other duct, vent or
chimney.
Do not terminate the
exhaust duct beneath the
motorhome.
Use proper length fastener
when attaching exhaust
vent to exterior sidewall.
Stainless steel fasteners are
best as they will not rust.
If the cabinet or closet in
which a washer-dryer is
installed does not have
vented louvered doors, the
manufacturer’s installation
instructions may require
installation of vents for
sufcient circulation of air.
WASHER/DRYER STACKED (IF
EQUIPPED)
Washer
The front-loading washer is a
large capacity washer that operates
on 120 Volts AC from shore or
generator power. Water usage will
vary with each load, and ll time
will vary depending upon water
pressure.
040495e
031365b
Washer control panel
30
c
On/Off
End
Delay
Start
Super
Wash
Extra
Rinse
Reduced
Wrinkles
Start/Pause
ARWXF129W
400
600
800
1000
1200
Child
Lock
Cold
Warm
Hot
15
60
