Fleetwood Pace Arrow User Manual

117
Discovery, Discovery LXE, Pace Arrow, and

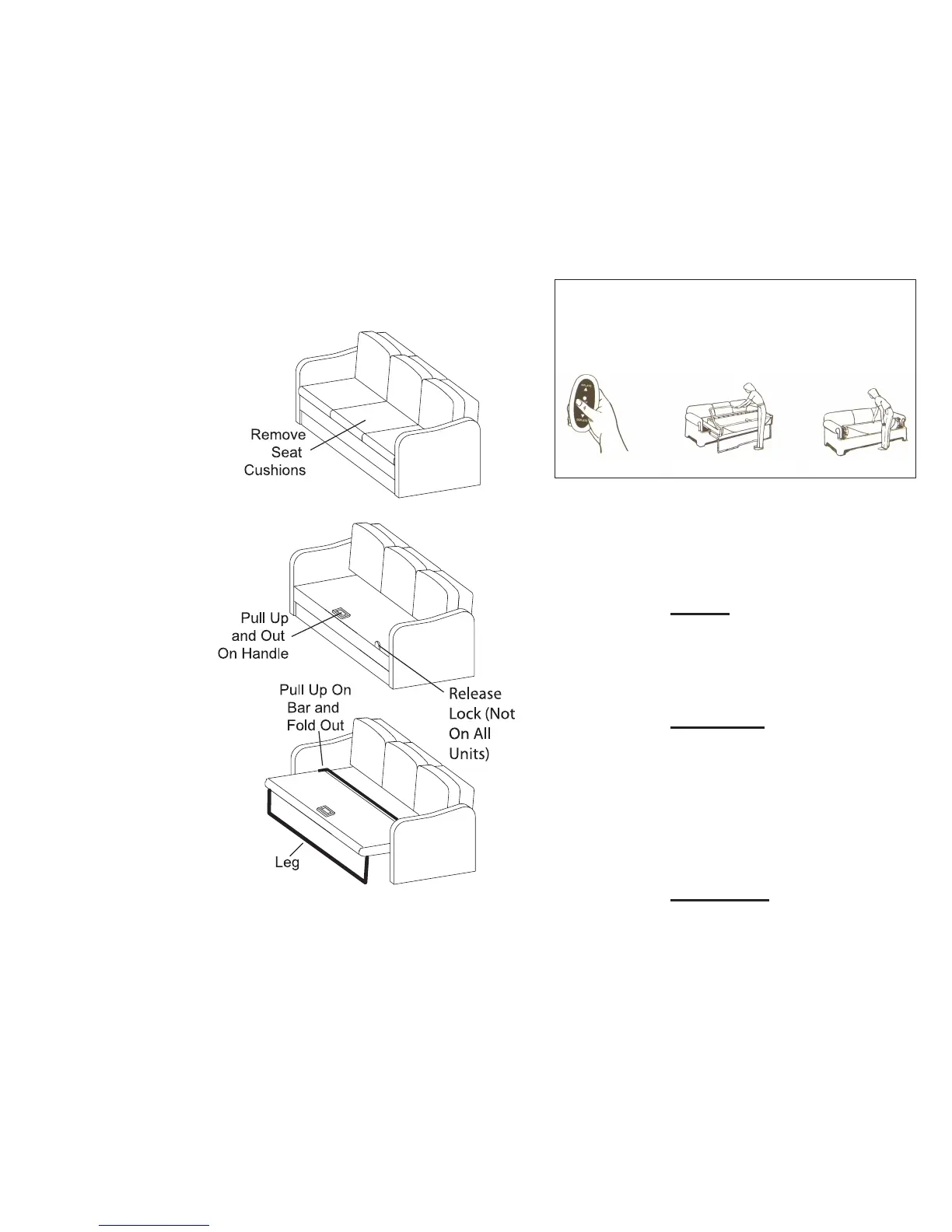

a-bed. The seat cushions
should be stored safely until
the bed is converted back to
a sofa.
 If applicable, release the
lock on the right side of
metal bar, grasp the front
metal bar and lift up pulling
out on the bar slightly until
the leg of the bed is rmly
resting on the oor.
 When the legs of the bed
are rmly on the
oor there will
be another lifting
bar exposed
to complete
the conversion
process.
 Grasping and
opening the
lifting bar will
open the bed
fully. The bed is
now ready for
linen.
Sleeper to Sofa:
 Remove all
bedding from the
hide-a-bed.
 Grasp the foot of
the hide-a-bed in
the center using
the metal lifting
bar.
 Fold over the
bottom portion of
the bed that will
form the seat.
 Lift the front portion of the
lifting bar to raise and lower
the hide-a-bed back into the
sofa base.
 Replace the seat cushions.
Hide-A-Bed Air Mattress
Plug the control into an outlet. For
ease of operation, position the sofa
so that accessing an electrical outlet
is convenient.
To Inate Mattress:
 Open sofa and allow the
mattress to lie at.
 Plug the control into an
outlet
 Press the Inate
button.
 It will take approximately
1 minute for the mattress
to fully inate. A change in
motor pitch occurs when
mattress is fully inated.
Press Stop (if necessary).
To Adjust Mattress:
 Fully inate mattress.
 Add desired bedding.
 Lie on fully inated
mattress.
 Press the Deate button.
The mattress will begin to
deate.
 Press the Stop button at the
desired setting.
To Deate Air Mattress:
 Remove bed linen.
 Press the Inate button.
 It will take approximately
1 minute for the mattress
to fully inate. A change in
motor pitch occurs when
mattress is fully inated.
Press Stop (if necessary).
NOTE:
It may be necessary to
readjust mattress as
necessary to determine the
optimum mattress setting.
CAUTION:
Fully deflate mattress before
stowing the Hide-A-Bed to
the travel position. If not
fully deflated, the mattress
can be damaged when
folding the mattress to the
travel position.
WARNING:
The electric inflation pump
is located internally in the
mattress. Do not use near or
place in water. Keep infants
and small children away
from mattress and product
when not fully inflated. A
partially inflated mattress
can cause suffocation.
031154b
CAUTION
To prevent undue damage, all air must be totally
expelled from the mattress before it is closed in
the sleeper mechanism. Press DEFLATE and all
air to be completely expelled.
Press deate Expel all air
Close carefully
