LIGHTS
Light xtures will vary
depending on location. Shown are
typical light xtures. Actual styles
and types may differ.

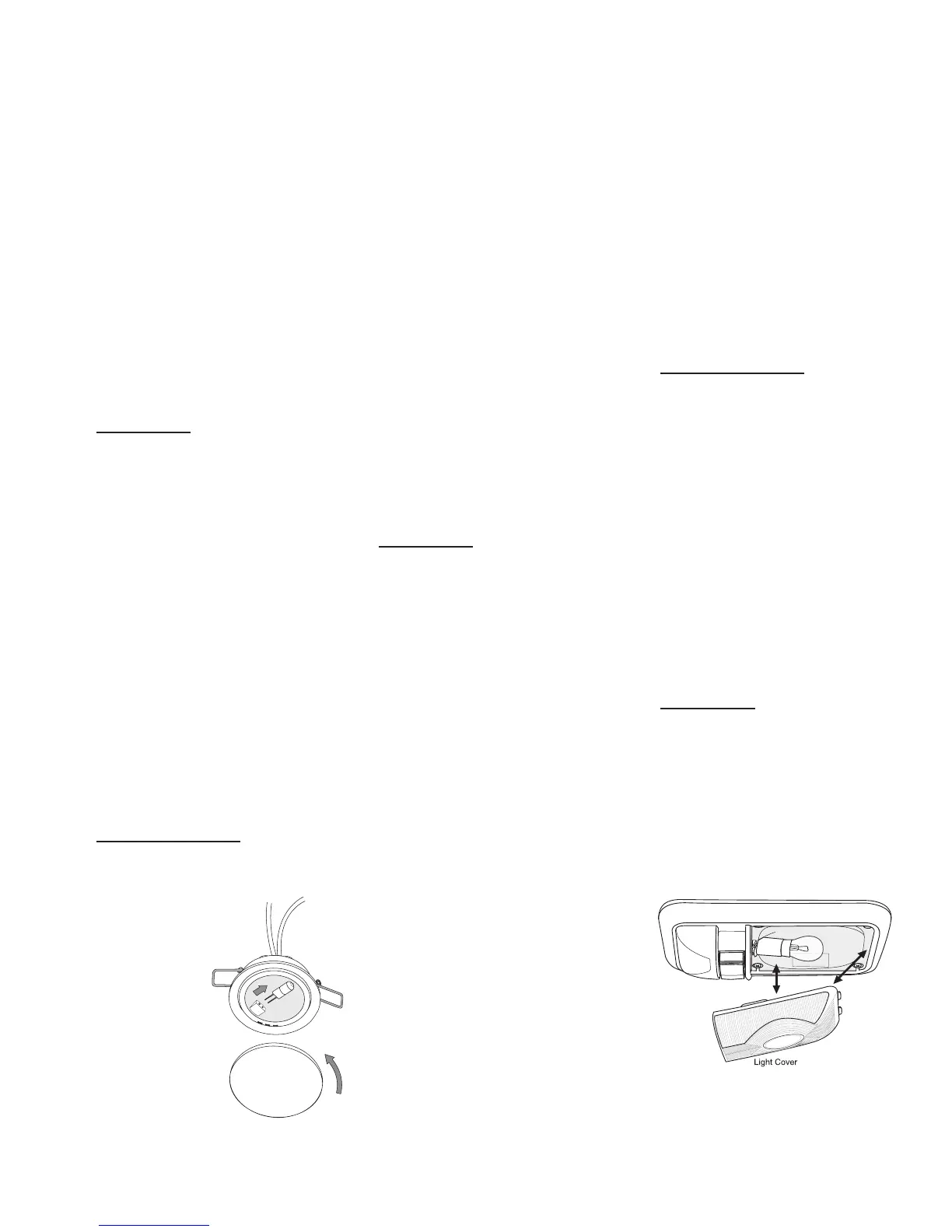

Interior Halogen
Changing the Bulb:
Removal:
 Grasp light xture and
pull down slightly then tilt
xture to one side. This
will allow one spring clip
to come out.
CAUTION:
Push spring clip inward
with a finger as clip is being
eased out. If this is not done
spring clip can snap back
on fingers.
 Tilt xture to other side
and ease the other spring
clip out.
 Unscrew the light lens
counterclockwise and
remove.
 Carefully grasp bulb and
pull from socket. Replace
with the same type of bulb.
The bulb replacement is 12V
10W CE.
INFORMATION:
Confirm replacement bulb
number before ordering or
obtaining a
replacement.
 Use a clean cloth or piece
of tissue to grasp new bulb.
Do not touch bulb with
ngers as oil can cause a
“hot spot” and result in
immediate bulb failure.
 Align contacts of bulb with
terminals in xture base.
Insert bulb until contacts
are rmly seated.
Reinstall:
 Align tabs on light lens
with slots in xture base.
Rotate lens clockwise until
light lens locks into place.
 Fold up both spring clips
and insert light xture into
opening. Once in opening
the spring clips will expand
and lock light xture into
place.
CAUTION:
Do not touch halogen
lighting while on. They
can cause a burn. Do not
touch replacement bulbs.
Oil in the hands can cause
a “hot-spot” to occur. If the
bulb is touched, allow it
to cool and clean the bulb
with alcohol.
Incandescent Light
Incandescent lights, such as
in the exterior compartment and
interior of the motorhome, come in
different styles or variations. The
bulbs in the 12 Volt incandescent
light xtures are replaceable.
To Replace a Bulb:
 Carefully squeeze the lens
cover then gently pull the
cover out. The cover has
tabs that lock the cover in
place
 Using a clean cloth or piece
of tissue carefully grasp
the bulb and rotate to the
unlock position.
 Remove bulb from the
socket.
 The bulb replacement is
1141 12V 21CP.
INFORMATION:
Confirm replacement bulb
number before ordering or
obtaining a replacement.
 Using a clean cloth or piece
of tissue grasp the new
bulb and align the prongs
on the bulb with the slot on
light socket.
 Push bulb in and rotate to
lock position.
 Gently squeeze lens cover
and insert tabs on cover
into xture.
CAUTION:
Do not touch the
incandescent bulbs while it
is on. The bulb can be hot
and cause a burn. Allow the
bulb to cool down before
replacing.
080475c
060200d
