Fleetwood Pace Arrow - Lighting System Operation

180
Discovery, Discovery LXE, Pace Arrow, and Pace Arrow LXE
Entry, Main and Rear Lighting System Operation
By depressing any of the three Icons’ that look like a “lightbulb” and with the words “ENTRY, MAIN and REAR” you will be accessing the lighting system
in the motor home. The screens should look like Figure V, VI and VII.

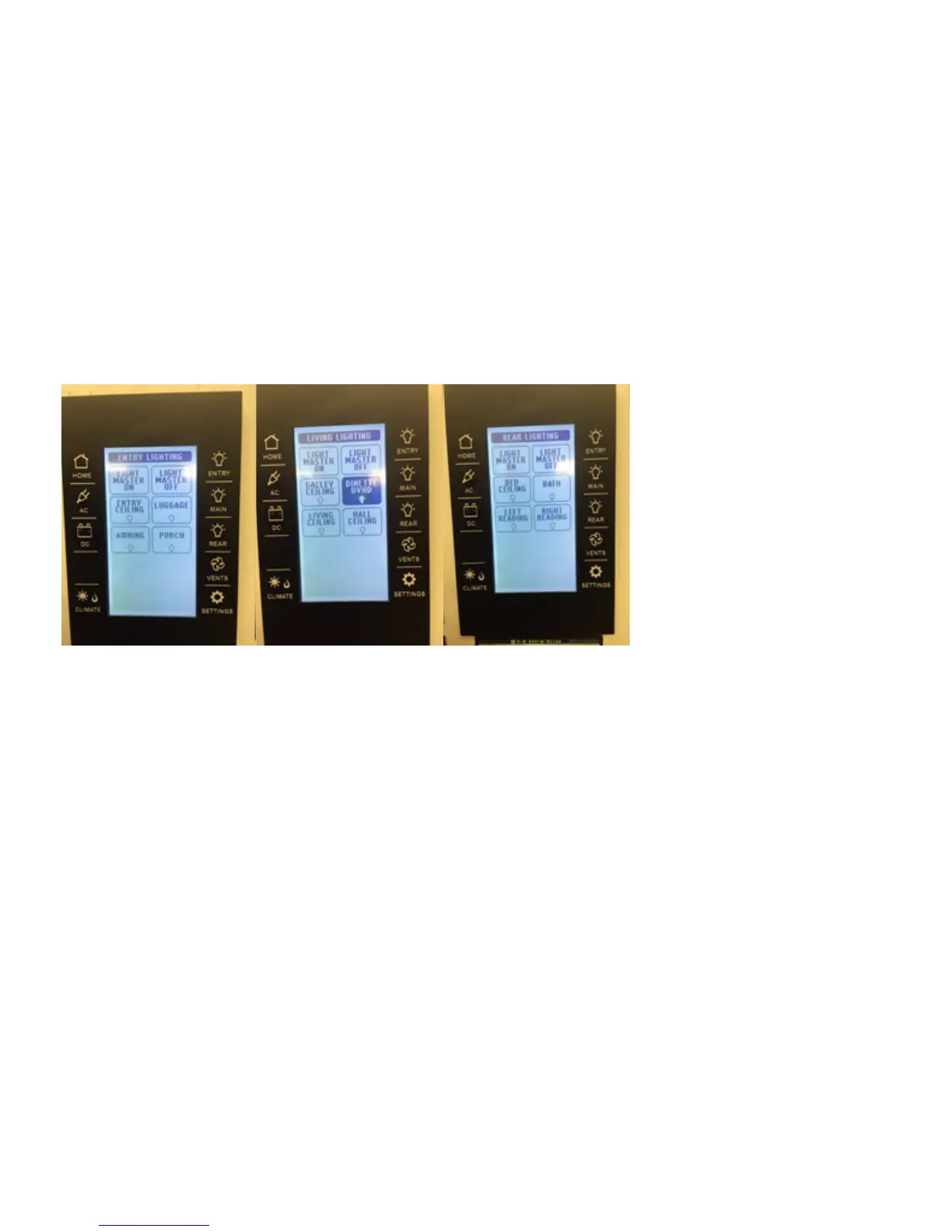

Figure V Figure VI Figure VII
Entry Lighting Main or Living Lighting Rear Lighting
When a specic light or area switch is selected the screen will change from an outlined light color with dark lettering to a dark color with white lettering.
Figure VI shows what the DINETTE OVHD switch would look like if the dinette overhead lights were ON or activated. All other switches show in Figures
V, VI and VII show the switches in the OFF or inactive position.
Due to all the different congurations of lighting in the different models the Firey network system is used on it is recommended that the owner go through
each Icon on the three screens one at a time and activate the individual lights.
