Discovery, Discovery LXE, Pace Arrow, and
STORAGE - UNDER BED

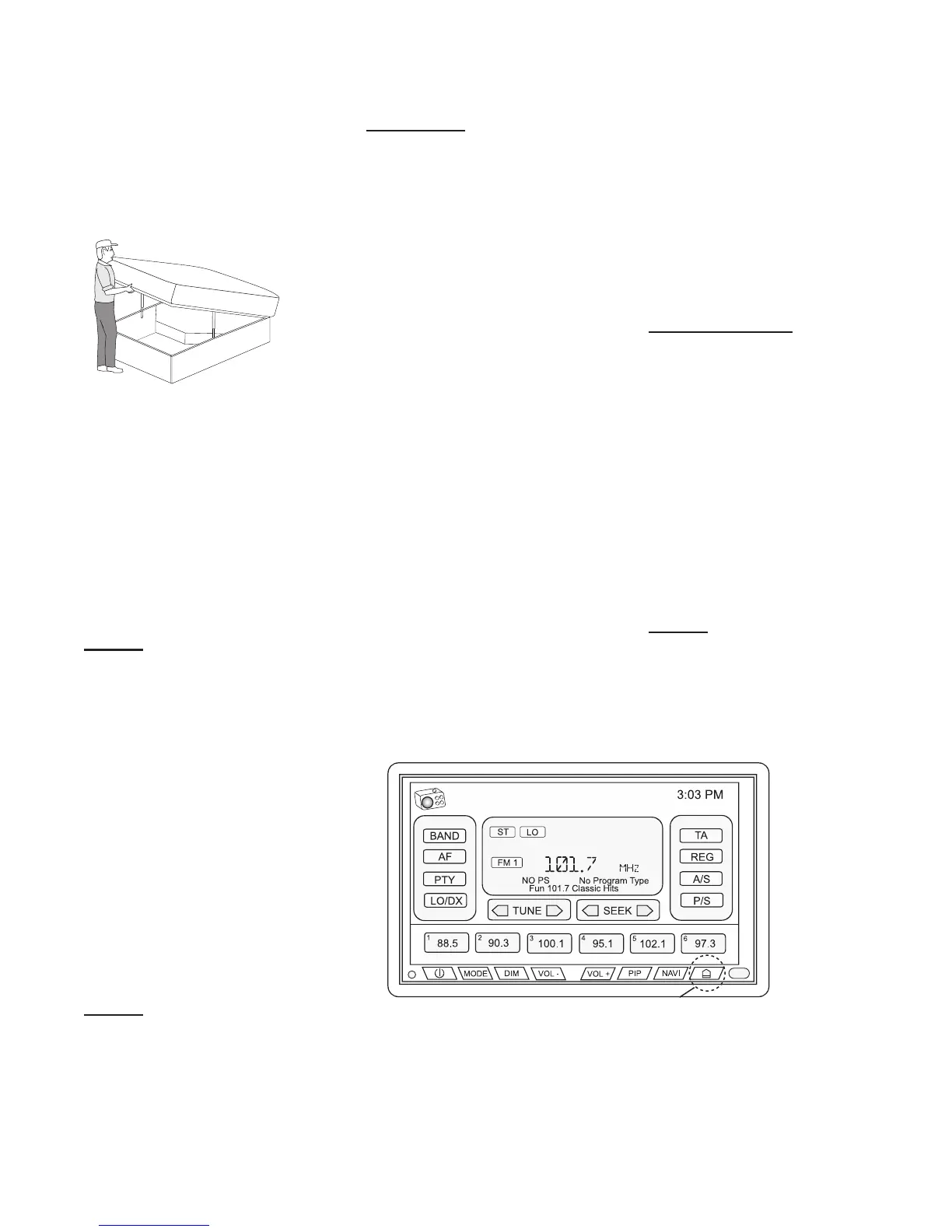

To use the storage compartment
located under the bed, lift up
the bed by the front edge of the
mattress platform. Gas struts hold
the mattress and platform open.
Use extra care storing items here
since the slideout mechanism
is also located here. Moving
components can be impeded or
items damaged.
NOTE:
The gas struts can be
damaged if rapidly forced
open or closed. In extreme
cold, the struts may not
hold the mattress platform
open.
LADDER - REAR
The rear ladder allows access to
the roof. Use care when climbing
the ladder. Access to the roof
should be limited to cleaning and
sealing purposes only. Stow the
lower portion of the ladder in the
cargo bay during travel.
NOTE:
Maximum weight capacity
for the ladder is 300 lbs.
STORAGE BAY SLIDEOUT TRAY
(OPTIONAL)
The storage bay slideout tray
allows items to be stored and
retrieved with easy access.
WARNING:
The motorhome must
be level when sliding
the tray out of the bay
compartment. The tray
can slide out abruptly and
cause bodily harm if the
motorhome is not level.
Ensure the motorhome is
level.
Pull up on the latch to
unlock.
To close, slide the tray in
until the latch locks the tray
in place.
Maximum weight capacity
(800 lbs.).
DASH RADIO
The dash radio includes an
AM/FM tuner, CD/DVD player,
Weather Band, Rear Camera an
iPod connection and is Sirius
ready. The system uses a touch-
screen display. Each selected
feature will bring up a new menu
for the selected feature. Press the
Home button to return to the main
menu.
INFORMATION:
Only the most common
connections and features
are described. The system
is comprehensive. It is
recommended to refer
to the dash radio OEM
manual for detailed
operating instructions
and information. While
the system has many
features, function buttons
with black text mean the
source or function (such as
Navigation) is not available.
NOTE:
Remote not shown.
