142
Discovery, Discovery LXE, Pace Arrow, and Pace Arrow LXE
6. If applicable connect
water line to ice maker.
Cycle ice maker several
times until clear fresh
water is present.
CAUTION:
Discard the first two trays
of ice from the icemaker.
They may contain
contaminants.
NOTE:
Depending on length of
storage, the fresh water
tank may need to be
sanitized.

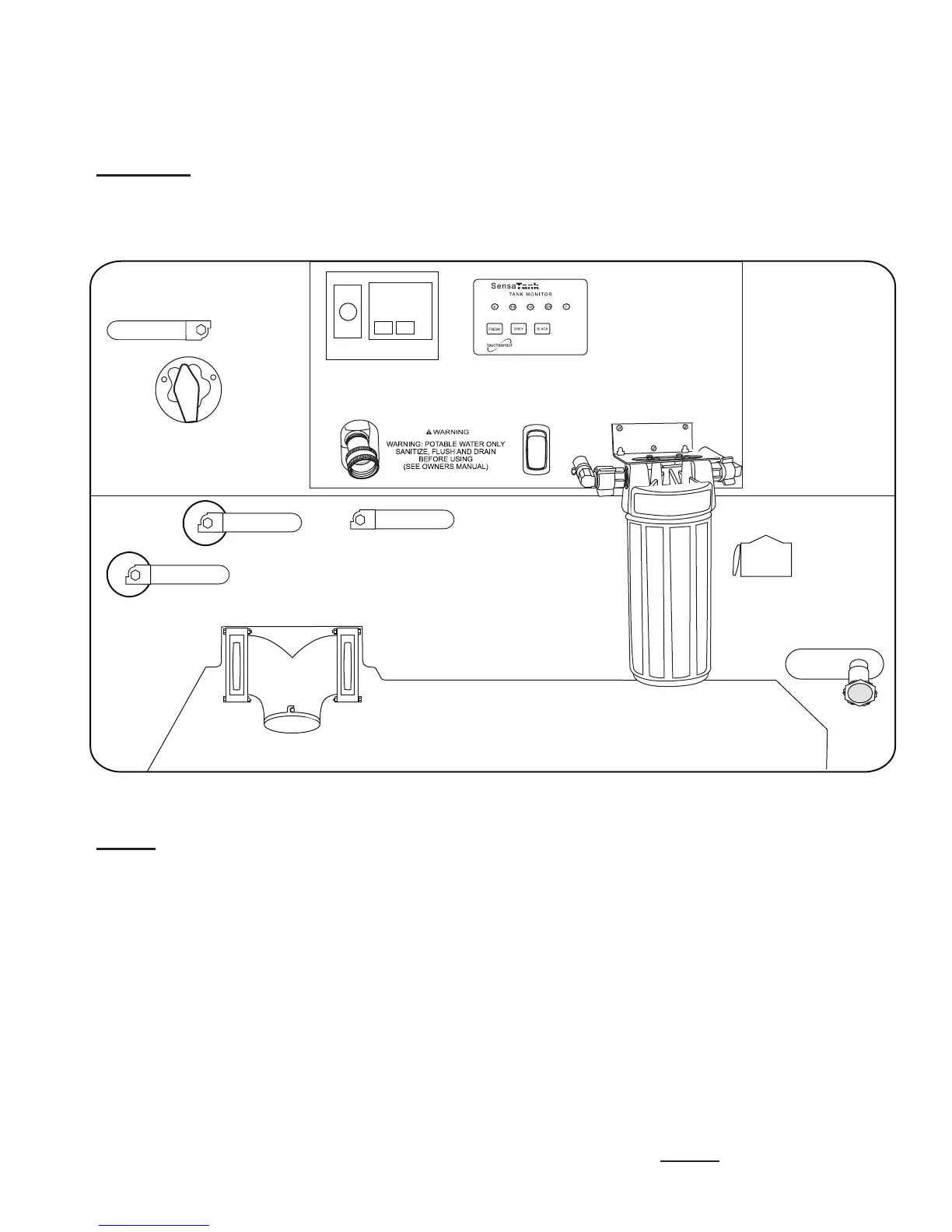

WATER SERVICE CENTER
1. Black Tank Flush
Connection
2. DC Outlet
3. Water Pump and Cargo Lt
Switch
4. Tank Monitor
5. Tank Fill Inlett
6. Sanicon Switch
7. Water Filter
8. Cold Water Drain
9. Hot Water Drain
10. Tank Fill Valve
11. Black Tank (Solid Waste)
Drain Valve
12. Common Termination
Drain
13. Grey Tank (Liquid Waste)
Drain Valve
14. Water Hose Reel Retract
Switch
15. Water Hose Reel/City
Water
NOTE:
COLD WATER
DRAIN
BLACK WATER
WASTE
GREY WATER
WATER TANK
BYPASS DRAIN
HOT WATER
DRAIN
1
2
3
4
5
6
7
8
9
10
11
12
15
13
14
Typical Water Center
040592mh
