FlexGain PLEX - E1 interface (PCM1 or PCM2); Ethernet interface

User’s manual FlexGain Plex, V2
Version 1.3
96 from 99

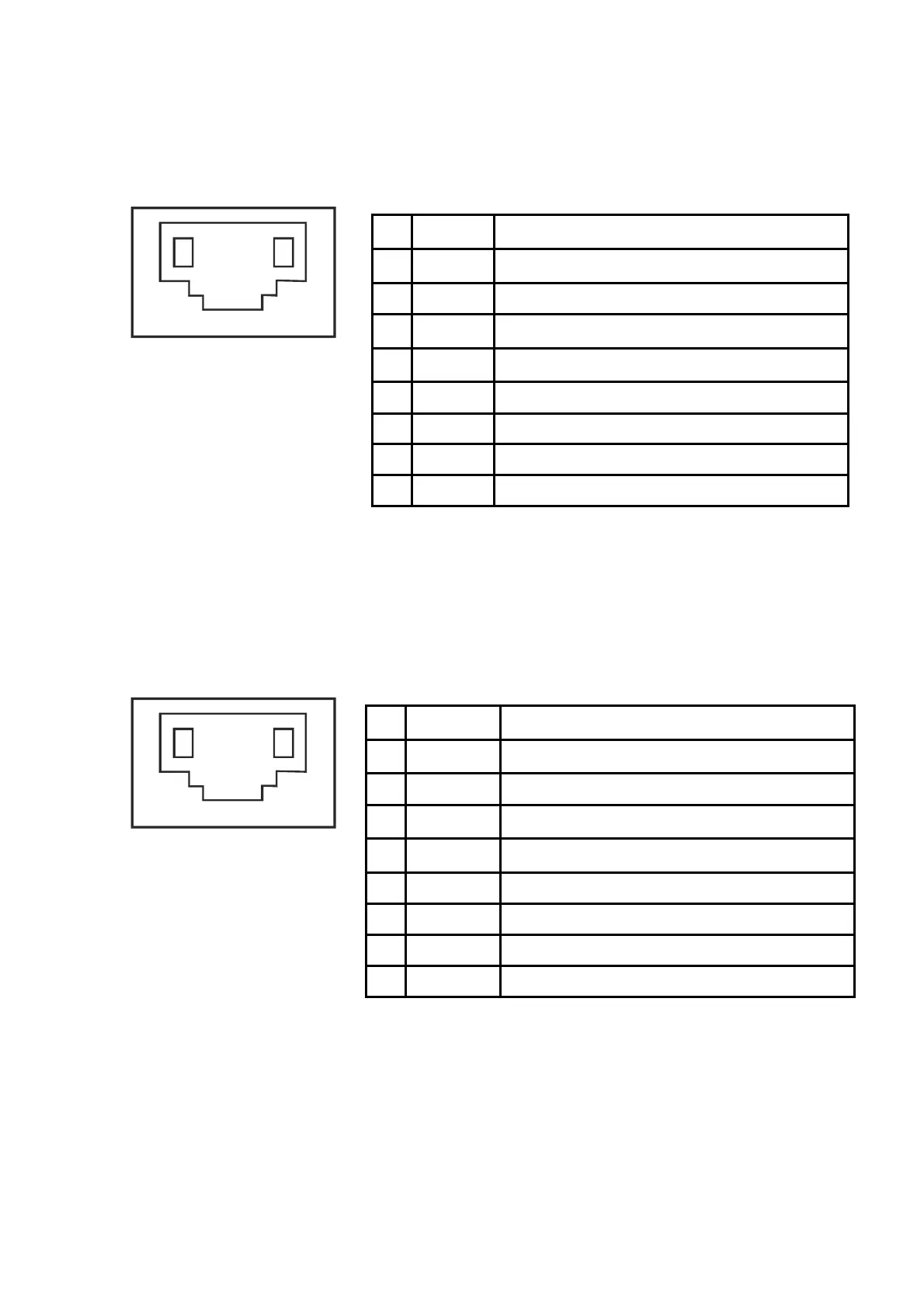

E1 interface (PCM1 or PCM2).
Type: RJ-45 (female). Available in all models.
18
............
RJ4
5
Pin Signal Description
1 RXa1 PCM1 120Ω, input 1 of the multiplexer (wire A)
2 RXb1 PCM1 120Ω, input 1 of the multiplexer (wire B)
3 RXb2 PCM2 120Ω, input 2 of the multiplexer (wire B)
4 TXa1 PCM1 120Ω, output 1 of the multiplexer (wire A)
5 TXb1 PCM1 120Ω, output 1 of the multiplexer (wire B)
6 RXa2 PCM2 120Ω, input 2 of the multiplexer (wire A)
7 Txb2 PCM2 120Ω, output 2 of the multiplexer (wire B)
8 Txa2 PCM2 120Ω, output 1 of the multiplexer (wire A)
Ethernet interface.
Type: RJ-45 (male). ITU/ITA T568B Standard. Available in all models. SWITCH-type
connector.
18
............
RJ4
5
Pin Signal Description
1 RD+ Receive by the device (RD+)
2 RD- Receive by the device (RD-)
3 TD+ Transmit from the device (TD+)
4 - Not used
5 - Not used
6 TD- Transmit from the device (TD-)
7 - Not used
8 - Not used
