User’s manual FlexGain Plex, V2
Version 1.3
39 from 99
Part 2. Installation and programming guide.
2.1 Installation and cabling.
The installation and connection of FlexGain Plex, V2 multiplexers is performed in the
following order:
• Make sure that the delivery set of the manufactured equipment is complete;

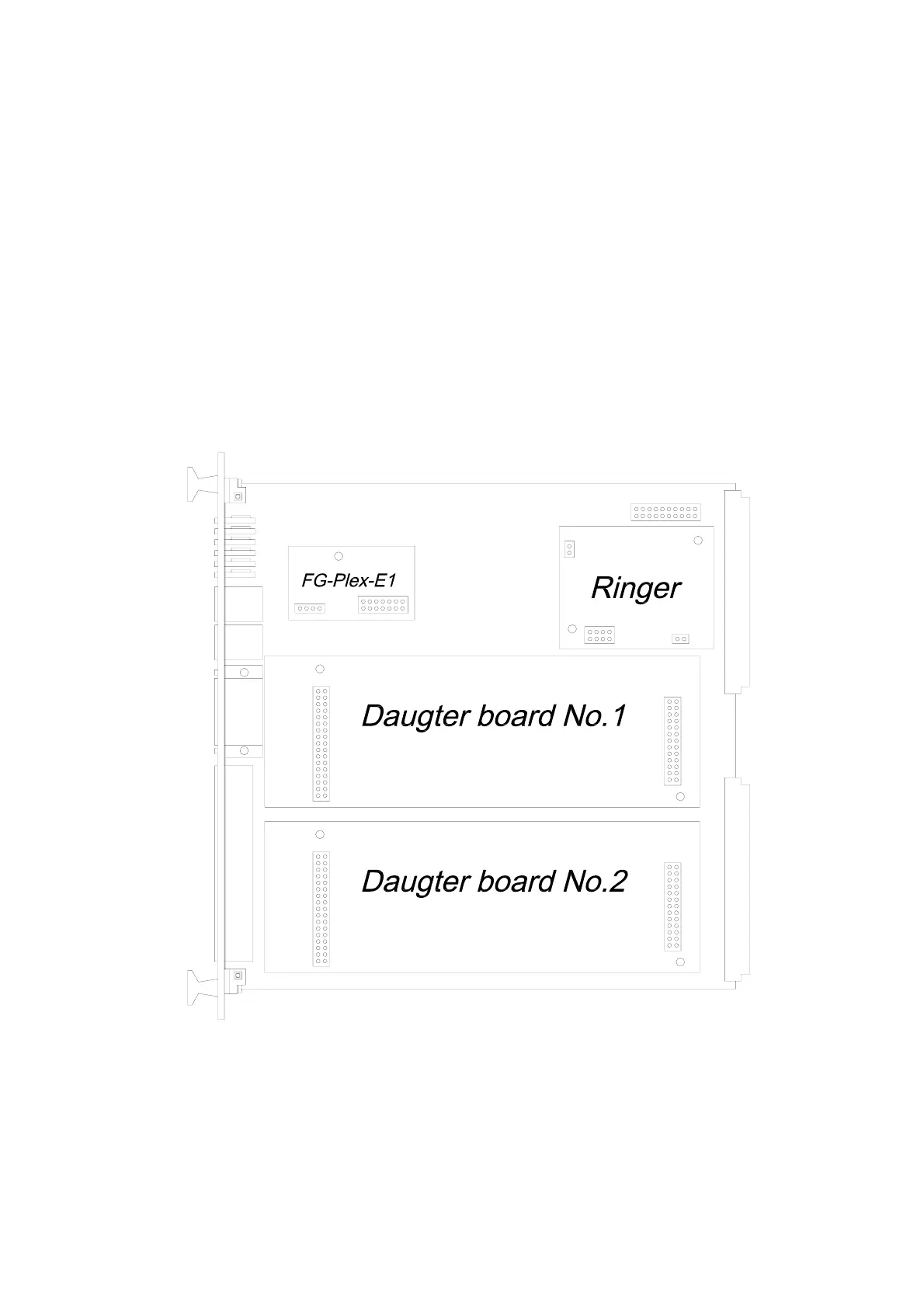

Figure 13 shows the installation of daughter boards on the basic motherboard of the
multiplexer. На рисунке показана установка мезонинных модулей на основную плату
мультиплексора. FG-Plex-4FXS, FG-Plex-4FXO or FG-Plex-4E&M units can be installed
instead of daughter boards Nos 1 and 2. Four channels of daughter board No. 1 have
P1…P4 ports on the front panel of the multiplexer. Four channels of daughter board No. 2
have P5…P8 ports on the front panel of the multiplexer.
Figure 10. Installation of daughter boards on the multiplexer.
