FlexGain PLEX - PART 1. Technical Description; 1.1 Application and General Information

User’s manual FlexGain Plex, V2
Version 1.3 7 from 99
PART 1. Technical description.
1.1 Application and general information about the FlexGain Plex, V2 multiplexer.
A subscriber TDM Nateks FlexGain Plex, V2 device is a compact time division
multiplexer with a set of fixed and interchangeable interfaces. The multiplexer belongs to
the family of FlexGain devices and is compatible with other devices of this family as well as
FlexGain and FlexDSL equipment. In this case unification of mechanic and electric
parameters of the equipment and the common management are provided.
Typical schemes of application of the FlexGain Plex, V2 equipment are presented in
Figs 1, 2 and 3.
Flex
Gain
Plex,
V2
Flex
Gain
4XE2
1...8 FXO
V.35
E1
E1
E1
1...8 FXS
V.35
E1
Phone
Е1
Network
PBX
Router
Office No.1
E1
E1
Ethernet
Flex
Gain
Plex,
V2
1...8 FXO
V.35
PBX
Ethernet
Flex
Gain
Plex,
V2
1...8 FXO
V.35
PBX
Ethernet
Flex
Gain
Plex,
V2
E1
Ethernet
1...8 FXS
V.35
Phone
Router
Office No.2
Flex
Gain
Plex,
V2
Ethernet
1...8 FXS
V.35
Phone
Router
Office No.3
Flex
Gain
Plex,
V2
Ethernet

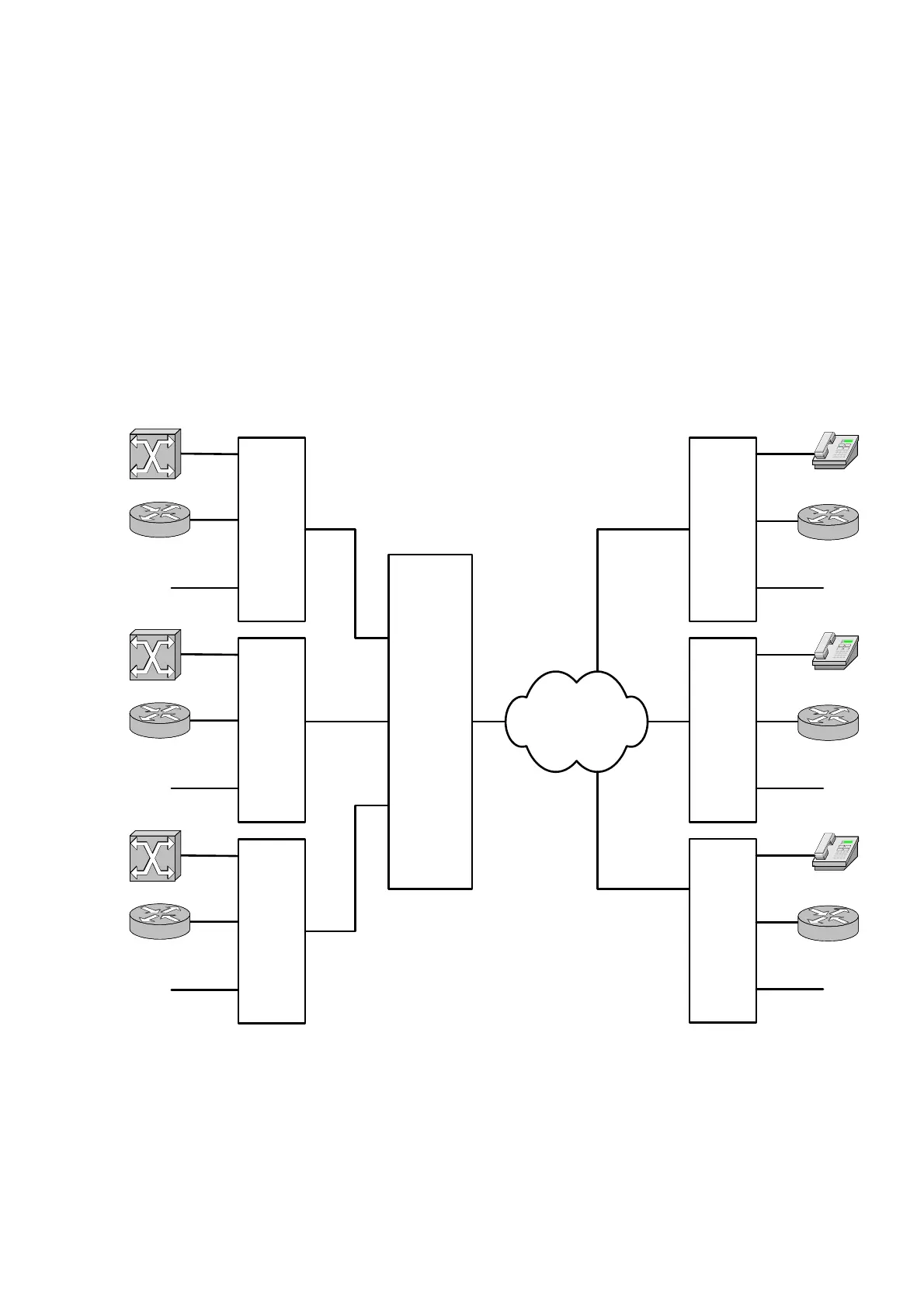

Figure 1. Organization of communication with remote offices.
